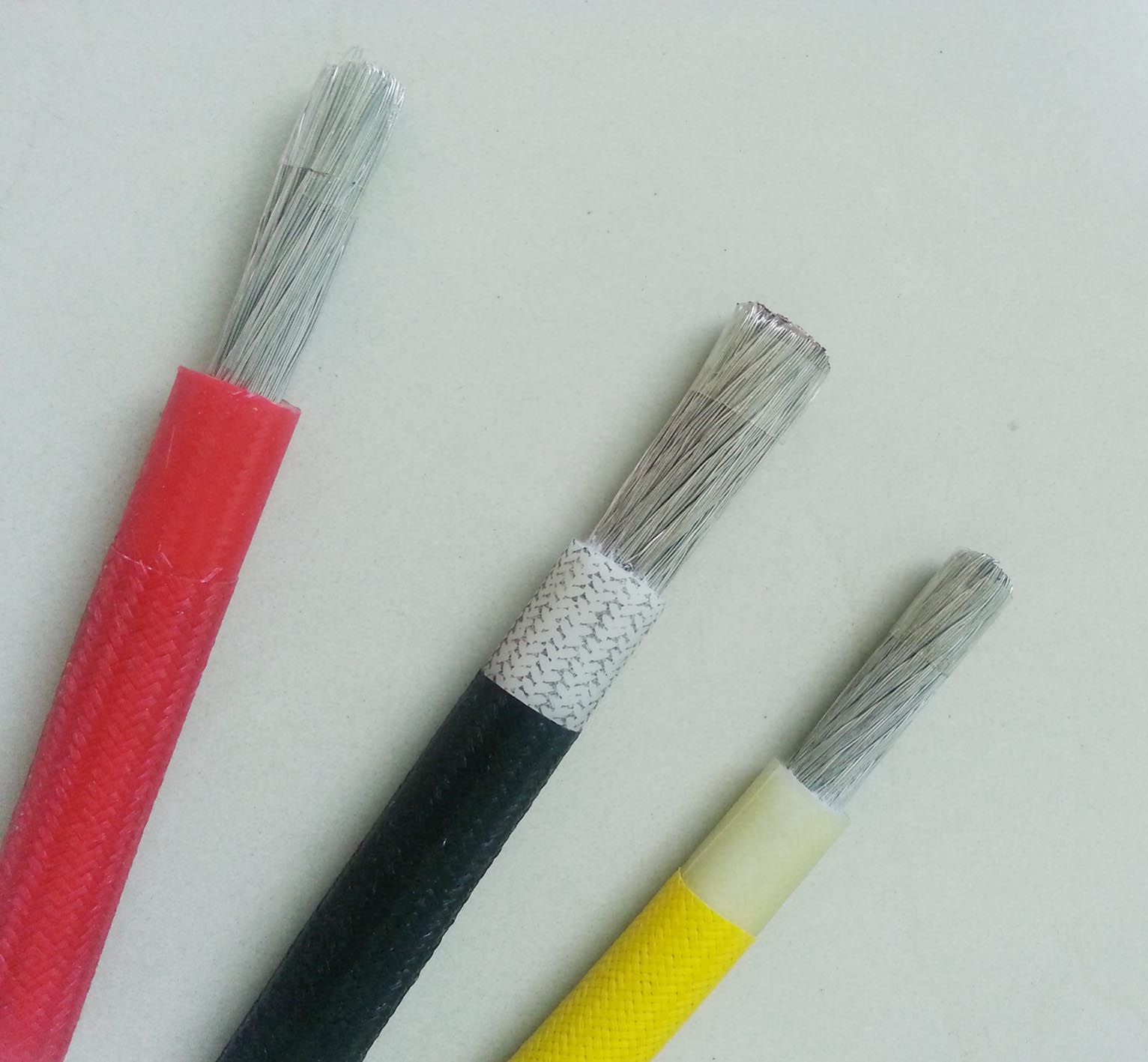

Silicone Rubber Insulated Electric Wire
| Price: |
US $ 0.12/Meter |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
5000/Meter |
| Pay Type: |
L/C,T/T,D/P |
| Prod Model: |
AGR/AGRP/SIAF/SIAF-GL |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Insulated |
| Conductor Type: |
Stranded |
| Application: |
Underground |
| Conductor Material: |
Copper |
| Insulation Material: |
Silicone Rubber |
| Certification: |
RoHS |
| Sheath Material: |
Silicone Rubber |
| Brand: |
Hoochan |
Product Description
CONDUCTOR
:bare , tinned copper,
Insulator
:Silicone rubber
Glass Fiber Braiding
Silicone Resin coating
RATED TEMP.
:-60ºC~200ºC RATED VOLTAGE
:500V
Test Voltage: 2000V. 1Min Mechanical properties Tensile strength: ≥5N/mm²
Elongation at break of insulation: ≥150%
Min.Bending radius: 6×OD Characteristics:Silicone rubber wire & cable have very good flexibility and good performance of resistance to high temperature, range from -55ºC up to 180ºC. The use of silicone rubber, a high grade corona resistant insulation material, gives the cable excellent dielectric strength. The braided synthetic yarn covering, which is applied directly over the insulation, gives the cable, because of its short braiding pitch and high compactness, an excellent mechnical protection by maintaining good flexibility. The varnishing of the braiding results in good antifriction properties, high abrasion resistance and excellent chemical resistance against transformer oil, light fuel oil and most types of cleaning agents.In the event of fire, no corrosive and toxic gases will be given off. Hence, damage caused by fire can be kept to minimum.Application: Thanks to the above characters, silicone wire & cable are used where high flexibility is required and high temperatuer conditions. It is therefore a suitable connection cable for home electric appliance, wire harness, lighting, industrial wiring of high environments. | Size | Conductor | Insulation thickness | Brading thickness | Wire OD | Resistance | |
| Stranding | OD | Nominal | Thinnest | OD | Nominal | Toler. | Ω/KM | |
| | |
| mm² | No./mm | mm | mm | mm | mm | mm | mm | mm | Max. | |
| 0.3 | 17/0.15 | 0.7 | 0.5 | 0.35 | 1.7 | 0.15 | 2.0 | +0.20 | 71.2 | |
| -0.10 | |
| 0.4 | 23/0.15 | 0.8 | 0.5 | 0.35 | 1.8 | 0.15 | 2.1 | +0.20 | 49.6 | |
| -0.10 | |
| 0.5 | 28/0.15 | 0.95 | 0.5 | 0.35 | 1.95 | 0.15 | 2.25 | +0.20 | 40.1 | |
| -0.10 | |
| 0.75 | 24/0.20 | 1.15 | 0.5 | 0.35 | 2.15 | 0.2 | 2.55 | +0.20 | 26.7 | |
| -0.10 | |
| 1.0 | 32/0.20 | 1.34 | 0.5 | 0.35 | 2.35 | 0.2 | 2.75 | +0.20 | 20.0 | |
| -0.10 | |
| 1.25 | 40/0.20 | 1.5 | 0.6 | 0.44 | 2.7 | 0.2 | 3.1 | +0.20 | 15.9 | |
| -0.10 | |
| 1.5 | 30/0.25 | 1.6 | 0.6 | 0.44 | 2.8 | 0.2 | 3.2 | +0.20 | 13.7 | |
| -0.10 | |
| 2.0 | 41/0.25 | 1.9 | 0.6 | 0.44 | 3.1 | 0.2 | 3.5 | ±0.20 | 9.9 | |
| 2.5 | 49/0.25 | 2.0 | 0.6 | 0.44 | 3.2 | 0.2 | 3.6 | ±0.20 | 8.2 | |
| 4.0 | 56/0.30 | 2.7 | 0.65 | 0.485 | 4.0 | 0.25 | 4.5 | ±0.20 | 5.09 | |
| 6.0 | 84/0.30 | 3.3 | 0.7 | 0.53 | 4.7 | 0.25 | 5.2 | ±0.20 | 3.39 | |
| 10.0 | 84/0.40 | 4.6 | 0.8 | 0.62 | 6.2 | 0.25 | 6.9 | ±0.25 | 1.95 | |
| 16.0 | 126/0.40 | 5.8 | 0.9 | 0.71 | 7.6 | 0.25 | 8.1 | ±0.25 | 1.24 | |
| 25.0 | 196/0.40 | 7.3 | 1.0 | 0.8 | 9.3 | 0.30 | 9.9 | ±0.25 | 0.795 | |
| 35.0 | 276/0.40 | 8.6 | 1.1 | 0.8 | 10.8 | 0.30 | 11.4 | ±0.30 | 0.565 | |
| 50.0 | 396/0.40 | 10.7 | 1.2 | 0.98 | 13.1 | 0.30 | 13.7 | ±0.30 | 0.393 | |
| 70.0 | 360/0.50 | 12.4 | 1.2 | 0.98 | 14.8 | 0.30 | 15.4 | ±0.30 | 0.277 | |
| 95.0 | 475/0.50 | 14.5 | 1.4 | 1.16 | 17.3 | 0.35 | 18.0 | ±0.40 | 0.21 | |
| 120 | 608/0.50 | 16.0 | 1.6 | 1.34 | 19.2 | 0.35 | 19.9 | ±0.40 | 0.164 | |
| 150 | 756/0.50 | 18.0 | 1.8 | 1.52 | 21.6 | 0.35 | 22.3 | ±0.50 | 0.132 | |
| 185 | 925/0.50 | 20.0 | 2.0 | 1.7 | 24.0 | 0.40 | 24.8 | ±0.50 | 0.108 | |
| 240 | 1221/0.50 | 23.0 | 2.2 | 1.88 | 27.4 | 0.40 | 28.2 | ±0.50 | 0.0817 | |
| 300 | 1517/0.50 | 26.0 | 2.4 | 2.06 | 30.8 | 0.40 | 31.8 | ±0.50 | 0.0654 | |

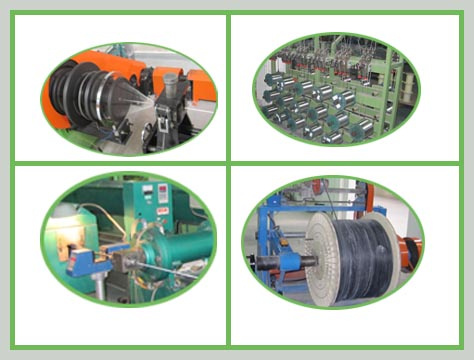

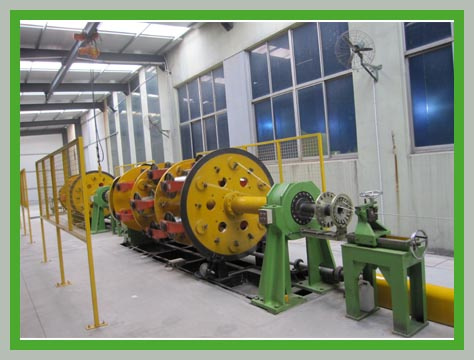

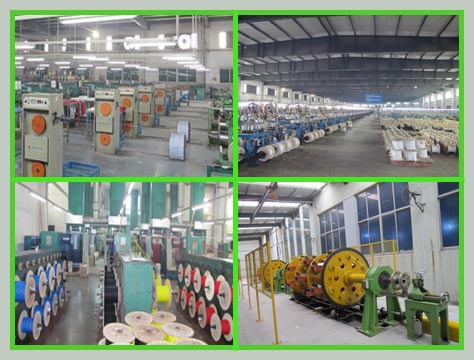

Wuxi Huacheng Cable Co., Ltd. is specialized in production of heat resistant silicone rubber wire & cable, also engaging in its R & D field, total building covers about 20000 square meters, with kinds of advanced Rubber extruding machines, Coating equipment lines, Braiding machines 1500 sets etc. After tens of year constant development, our annual output is more than 250, 000 KMS and became the famous leader and production base in domestic market.
Most of the products have passed USA UL/cUL, Germany VDE, China CCC, Japan F-MARK and ROHS Certification, completely meet with EU environment protect policy requirement, acquired ISO9001: 2000 International Quality Management & ISO14001 Environment Management Certification. All the staff exalt the tenet "Pursue truth, Honor fact, Keep Innovation", insisting on the quality policy of "Customer's wishes oriented, adopting PDCA circulation, continuously improve product and service, fully satisfying customers", based on above, our products sell well everywhere, applying to famous corporations, and even sell far to Occident, Mid-east, Southeast Asia countries and area, acquire good reputation and approval of customers.
More than hundreds of series of products are optional for customer's choice, mainly used for new energy, wind power motor, metallurgy, power, railway, home electrical appliance, lighting relative fields.
