| Prod Model: |
WCT-25A-3P |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Circuit Rating Voltage: |
24V, 230/240V |
| Circuit Rating Current: |
16~100A Household |
| Suitable For Frequency: |
50/60Hz |
| Household Contactor Standard: |
IEC61095 |
| Household Contactor Auxiliary Contact: |
No Nc |
| Life Time(Mechanical): |
24000~36000 Times |
| Life Time (Electrical): |
12000~30000 Times |
| Air Magnetic Contactor Function: |
Protect Over Load Phase Circuit |
| Match Fuse Type: |
Rt16 Type |
| Material: |
Copper and Anti Fire Plastic |
| Size: |
Miniature |
| Theory: |
Electromagnetic Relay |
| Usage: |
Car Relay, Household Appliances Relay, Communication Relay, Lathe Relay |
| Protective Characteristics: |
Open Relay |
| Load: |
Medium Power Relay |
| Action Principle: |
Electromagnetic Type |
Product Description

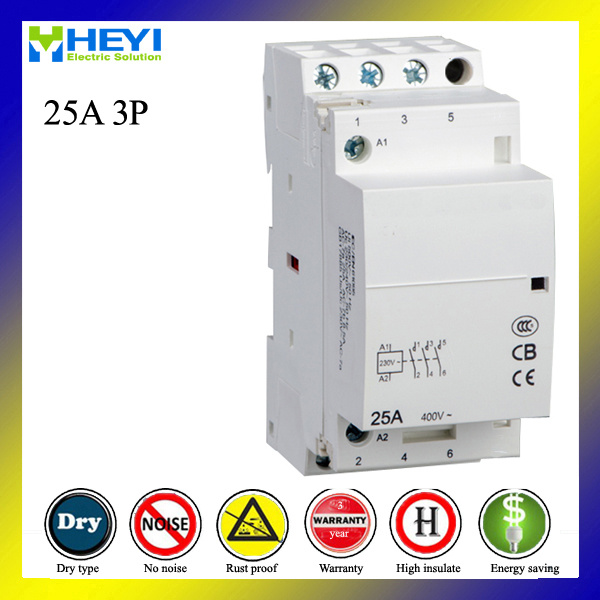

Home Modular AC Contactor 25A 3 pole
Current AC7A (Household appliances and similar use of low - load)
=25A
Current AC7B(Household motor load)=10A
Technical Data
Rated Current (A) | 16,20, 25, 40,63,100 |
| Rated Voltage (V) | 230V 2P, 4P |
| 400V 4P |
| Rated Frequency(Hz) | 50/60Hz |
| Electrical endurance | 30, 000 cycles |
| Mechanical endurance | 100, 000 cycles |
| Ambient temp. | pillar terminal with clamp |
| Installation | On symmetrical DIN Rail |
| Power circuit |
|
| Voltage rating (Ue)2P | 230/240VAC/24V |
| Frequency | 50HZ or 60Hz |
| Electrical | 100,000 cycles |
| Maximum number of switching operation a day | 100 |
| Additional characteristics |
|
| Insulation voltage Ui | 500VAC |
| Pollution degree | 2 |
| Rated impulse withstand voltage (Uimp) | 2.5kv(4kv for 12/24/48VAC ) |
| Degree of protection device only | IP20 |
| IEC60529 Device in modular enclosure | IP40 |
| Operating temperature | -5 to 60 degree |
| Storage temperature | -40~70degree |
| Tropicalization (IEC60068-1) | Treatment 2 (relative humidity 95% at 55 degree ) |
| ELSV compliance (extra low safety voltage )for 12/24/48vac versions |
| The products control confirms to the selv(safety extra low voltage )requirements |
Home Modular AC Contactor 25A 3 pole advantage
1.20 years global leading profession manufacture of ac contactor
2.Long life high reliability
3.It will match to thermal relay ,protect over load or lack phase circuit
4.Fast delivery : you will get the order when you need it
5.OEM is warmly welcome
6.3 line assemble line ,each day will make more than 100000pcs
7.Convenient : 45 minutes to wenzhou airport
8.Rated insulate voltage 1000V
Home Modular AC Contactor 25A 3 pole function
1.saving power
2.No invoice
3.No temperature rise
4.Auxiliary contact without vibration
5.Long life, high reliability
6.Anti electromagnetic interference
7.Intelligent anti electricity dazzling
Home Modular AC Contactor 25A 3 pole Payment terms
1. 30% T/T advance , the balance against to the copy B/Lor LC at sigh
2. The other specific issues can negorate.
3. Pls confirm the details with us before do the prepayment.
Home Modular AC Contactor 25A 3 pole Packing information
1. Inside foam package ,outside strong paper package
2. 50pcs/per CTN
3. G/N.W: 16/15kg
4. We can packing as your required,good looking design
Why choose Home Modular AC Contactor 25A 3 pole
1).ISO9001,SGS,Gold golden supplier
2) Monthly Production Capacity -- 100000 Pcs
3)All goods examined before delivery by 10 QC staff
4)Prompt Reply Within 12 Hours
5)8000 square meters work environment
We are the professional manufacturing the 0.5-35 KV outdoor indoor, fuse cut out composite insulator dry type, oil-immersed, combined transformer, electrical energy meter, power capacitor correction bank, low voltage stablizer and so on
1. Who we are
Heyi is dynamic company established in 1992, who specializes in research and design, manufacturing, and distribution of all kind ofcurrent transformer
Further more, we also develop ours business for the electrical product, like energy meter, power meter, power capacitor, relay, proximity switch and so on, focusing in ours customers needs, provide the best solution supporting ours customers, be the best in their filed of businss
2 why choose us
We have our own facilities for R&D, Production, Sales & Market, and Customer Support, specializing in the design, manufacture and delivery of customized solution. Equipped with all kinds of professional instruments and testing equipment, combined the professional standard of product testing methods, now we has an annual output of 5, 000, 000 or more products.
3 Heyi Mission, vision values
Heyi mission is to provide reliable, accurate and customized current transformer solution
Heyi vision is leading global split core CT manufacture and energy solution provider
Values Enthusiastic by our work, we offer a quality personal and close service to our customers
Some products have been approved by CE and IEC certificates.
