| Prod Model: |
SU-CON-TOUCH-LV |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product Name: |

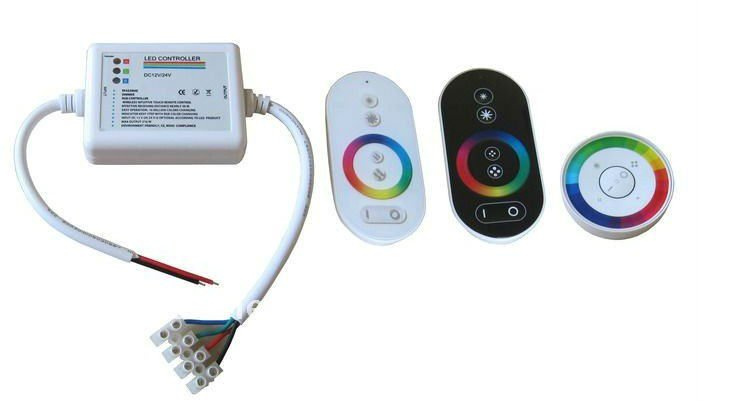

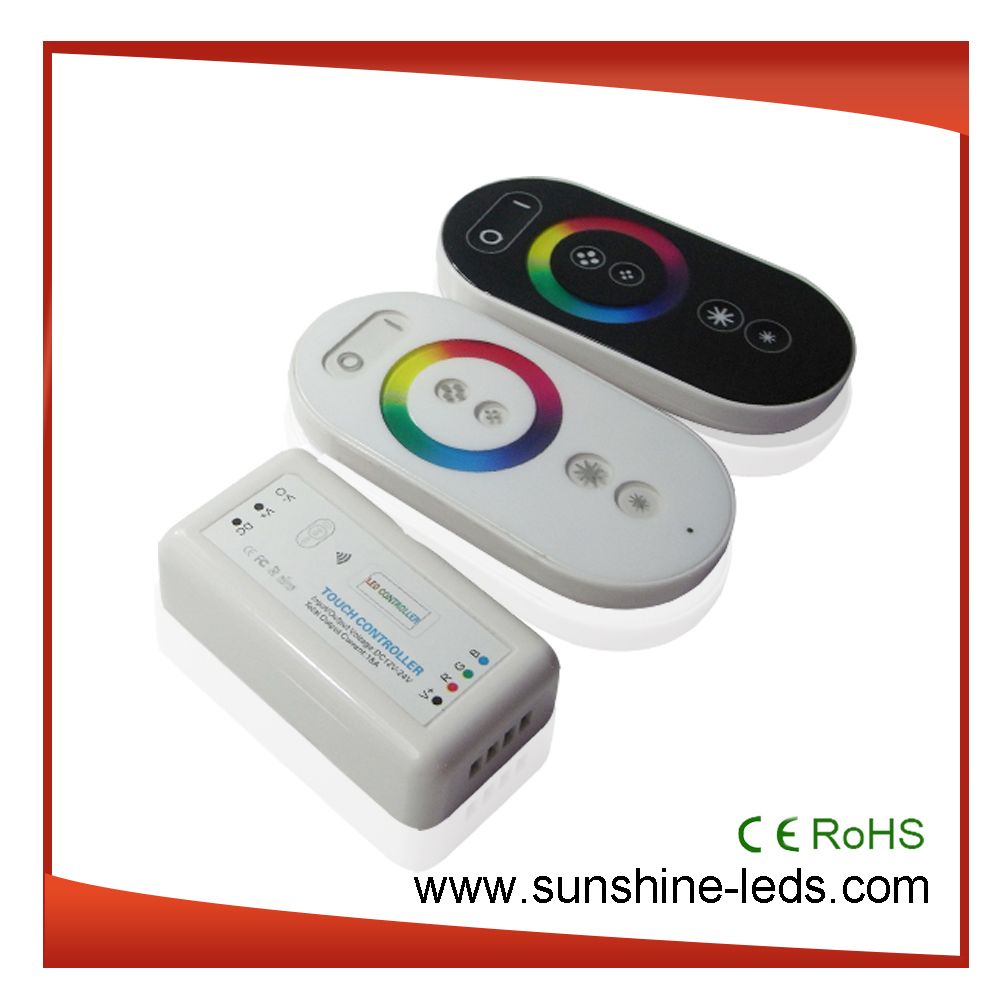

Wirless Touch RGB LED Controller |
| Size(Mm): |
L46*W33*H18 |
| Suply Voltage: |
12V, 24V |
| Output Current: |
8A*3CH(12V) / 4A*3CH(2 |
| Output Power: |
216W(12V) / 288W(24V) |
| Frenquency: |
433.92MHz |
| Polarity: |
Common Anode |
| Color: |
White/Black |
| Conection Methods: |
RF/WiFi/Blueteeth |
| Signal Transmission: |
RF Remote Control |
| Application: |
LED Products |
| Type: |
Controller |
Product Description
2014 Newest DC12V 216W led rgb remote led controller
*Compatible with any LED RGB product,Unique touch technology,user-friendly operation and easy to use
*Automatically adapt to LED light which works at DC12V or DC24V . The touch ring is used for easy color access
*There are 4 predefined pattern modes with static color , gradual,hopping and white light
Technical Specification
1.Frenquency : 433.92MHz
2.Input Voltage : 12V / 24V
3.Output Current : 8A*3CH(12V) / 4A*3CH(24V)
4.Output power :216W(12V) / 288W(24V)
5.Polarity : Common anode
Function Description
1. 4 predefined patterns,including static color , gradual,hopping and white light
2. Brightness, color and speed control
3. Power-lost memory recovery function
4.Touch surface with full color selection ring

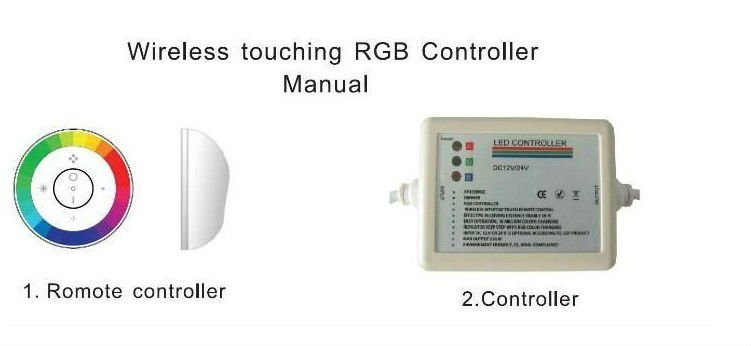

Keys Function Description:
1. Power OFF
2. Power ON / Mode change
3. Speed+ , static color saturation increase,white mode invalid
4. Speed- , static color saturation decrease,white mode invalid
5. Color ring , gradient mode and white mode invalid
6.BRT+ ,brightness increase
7.BRT- ,brightness decrease
8.Indicator
Remote Address Learning:
1.Load remote controller with batteries, touch the BRT-key close the indicator
2.Power on receiver, all 3 indicators light , touch the power ON key within 5 seconds
3.The receiver`s indicator light turns blue,the remote address learning success
Advantage:
1.Match with the RGB flexible strip,easily control the colors change
2.Wireless touching remote and control distance is more than 30meters
3.Two kinds of modes: Gradual change mode and hopping change mode.
4.The rate of color change and the brightness can be easily control
5. 3 kind of wireless remoter, you can choose as you like.
6: 2 years warranty,fast delivery time

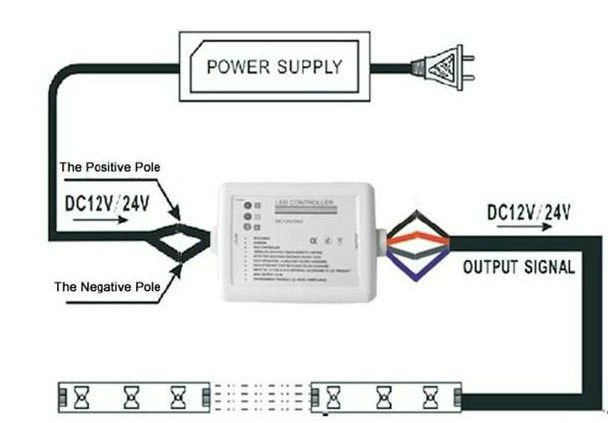

Connection
Our service
1.your inquiry related to our products or prices will be replied in 24hours.
2.well-trained and experienced staffs to answer all your enquires in fluent English
3.OEM and ODM,any your custonized lightings we can help you desiign put into product
4.Distributonership are offered for your unique design and some our current models
5.protection of your sales area,ideas of design and all your private information
Pament Terms:
T/T, West union, Paypal is availiable for us.
Should any questions ,Pls add my skype or give me an inquiry , So I can service you better ,also you can get more information for our COB Downlight , Happy shopping !!
Contact : Rachel Lee
Mobile no: +86-15999511752
Phone no: +86-755-89564062
|
Part no. |
Description |
Supply Voltage |
Output current |
Output Power |
Size(mm) |
|
SU-CON-TOUCH-LV |
Wireless touch RGB LED Controller |
12V, 24V |
<4A |
12V<144W 24V<288W |
L46 Χ W33 Χ H18 |
|
SU-TOUCH-Dimmer-LV |
RF Rmote Touch Dimmer |
12V, 24V |
<4A |
12V<144W 24V<288W |
L46 Χ W33 Χ H18 |
|
SU-CON-TOUCH(2)-LV |
Wireless touch RGB LED Controller |
12V, 24V |
<4A |
12V<144W 24V<288W |
L46 Χ W33 Χ H18 |
