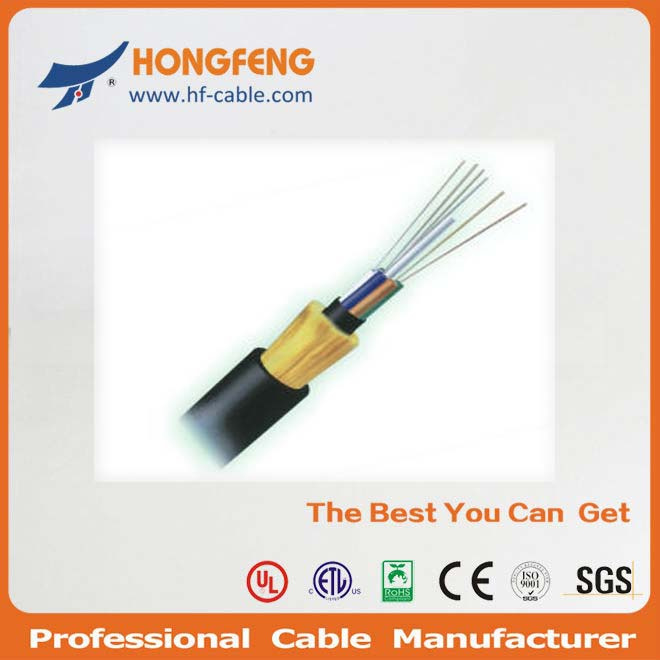

Hyat53 Outdoor Fiber Optic Cable

Name: Hyat53 Outdoor Fiber Optic Cable
Brand: all-electronics-online.com
SKU: 704484475
Availability: InStock
Rating: 4.9 (71 reviews)

Price:	US $ 1/Meter
Trade Terms:	FOB,CFR,CIF
Min Order:	5000/Meter
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	fiber cable
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Outdoor Optical:	Outdoor Optical Fiber
Optical Fiber:	Optical Cable
Optical Fiber Cable:	Fiber Cable
Application:	Communication
Type:	Single-mode Fiber
Connection Structure:	SC
Certification:	ISO9001

Product Description

Cable construction type:

Layer stranded
*Unitube
*Figure 8
*ADSS self-supporting

Installation Scope type:
*Aerial
*Duct
*Underground direct burial
*Underwater

Application scope:
*Long-distance communication
*local trunk line
*CATV & computer networks system

Technical Features:

*Low dispersion and attenuation
*Proper design, precise control for fiber excess length render the cable *excellent mechanical and environmental characteristics.
*Steel-PE sheath makes cable have nice moisture resistance performance
*Small cable diameter, light cable weight, easily to install.
*Good mechanical and temperature performance
*High strength loose tube that is hydrolysis resistant
*Special Tube filling comound ensure a critical protection of fiber
Crush Resistance and flexibility

Items	Specified Values
Fiber Type	G. 652 Single-mode fiber
Mode Field Diameter@1310nm	9.2± 0.4μ m
Cladding Diameter	125.0± 1.0μ m
Mode Field Concentricity Error	≤ 0.5μ m
Cladding No Circularity Error	1.0%
Cut-Off Wavelength	λ cc(test 20m cable+2m fiber) ≤ 1260 nm
Attenuation Coefficient 1310nm 1550nm	≤ 0.36 dB/km ≤ 0.22 dB/km
Dispersion Coefficient	1288-1339nm≤ 3.5ps/nm. km 1270-1360nm≤ 5.3ps/nm. km 1550nm≤ 18ps/nm. km 1625nm≤ 22ps/nm. km
Zero Dispersion Wavelength	1300nm-1324nm
Zero Dispersion Slope	≤ 0.09ps/nm 2. km
PMD Q *	≤ 0.2ps/km 1/2
Coating Diameter	245± 10μ m
Proof Test	100kpsi0.7Gpa

Our company, hongfeng industry, a professional cable manufacturer, is located in hangzhou, a city which is not only famous for its fabulous scenery, and also known for the center of the manufacture industry. And also we get close to the Shanghai port and ningbo port. This makes our company an unique position offering and delivering the cable overseas. We are dediacated to providing high quality coaxial cable and LAN twisted pair cable.

We offer whole range of coaxial cable and LAN twisted pair cable. Coaxial cable includes RG6 series, RG58series, RG59series, RG7series, RG11series, QR series, 500 series. And network cable CAT7 series, CAT 6 series, CAT 5 series.

We provide consistent high quality products at competitive prices. We have an products controlling teams, which monitors the manufacturing process and checks all the products before shipment. Our professional customer's service are ready to provide you with all necessary consultations and solve any problems related to our products.
