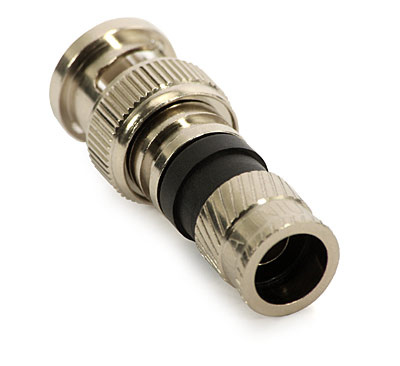

RG59 RG6 Compression BNC Connector

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Material:	Copper, Nickel Plating
Impedance:	75 Ohm
Type:	Generally Coaxial Connector
Coupling Mechanism:	Threaded Connection

Product Description

Rg59, RG6, rg58 coaxial cable Male compression BNC connector

BNC connector:

BNC 50 ohm connectors provide repeatable electronic performance from DC to 4 GHz.
BNC 75 ohm connectors are suitable for applications up to 1 GHz. All 50 and 75 ohm connectors are intermatable.
F-female to BNC-male adapter is significantly different from the low-cost gear offered on the market. For a slightly higher price the user gets a brand product with defined characteristics. Carefully selected materials and excellent manufacturing accuracy ensure quick and reliable assembly, without any backlash. Gilded contacts and VSWR <1.05 up to 1 GHz ensure very good electrical parameters and perfect matching.

Technical Charateristics of BNC connector:

Temp. Range: -55~+155° C
Impedance: 50, 75ohm ohm
Frequency Range: DC - 4 GHz (50ohm- 75 ohm )
Working Voltage: 500V max
Withstand Voltage: 1500V RMS
Center Contact: ≤ 1.5 ohm
Outer Contact: ≤ 1 ohm

Applications OF BNC connector:

Serial digital and Analog interface;
Video signals;
Aviation electronics;
Non-professional radio antenna connections;
Electronic test equipment.

About us:

OEM are welcomed
We have many types connector for your choosing, fell free to contact me,

1. Part No.
2. Material: Brass or zinc alloy /nickle or zinc plating
3. OEM accept, customize
4. Can do waterproof with O ring
5. Small MOQ
6. Application: Telecom, Radios, Broad cast, Coaxial cable, CATV

*Impedance 75 Ohms
*High Return loss
*Low Insertion Loss
*Operating Voltage 90V (at 60 Hz continuous AC)
*Operating temperature -40° F to +140° F
