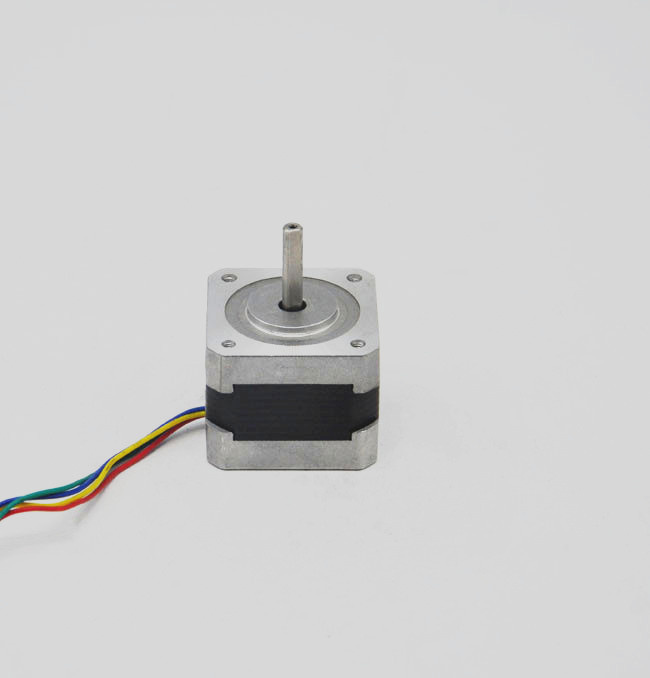

Hybrid 2 Phase NEMA 17 Stepper Motor 56oz-in

Name: Hybrid 2 Phase NEMA 17 Stepper Motor 56oz-in
Brand: all-electronics-online.com
SKU: 835112845
Availability: InStock
Rating: 4.3 (143 reviews)

Price:	US $ 6-8/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	17JH4215-01
Color:	Black
Model:	17jh4215-01
Weight:	220g
Voltage:	2.4V
Manufacture:	Jianghua
Phase:	2
Holding Torque:	4.2kg.Cm
Current:	1.5A
Number Of Stator:	Two-Phase
Excitation Mode:	HB-Hybrid
Function:	Motor
Brand:	Jh

Product Description

NEMA17 1.8 degree 1.5A 2- phase 4-wire Copper wheel or ground shaft hybrid stepper motor

Place of Origin: Jiangsu China (Mainland)                 Brand Name: JH stepper motor
Model Number: 17JH4215-01                                        Phase: 2                   Type: Hybrid
Certification: CCC, CE, ISO, ROHS, UL, ISO9001          Step Angle(degrees): 1.8degree
Holding Torque: 1.7Kg.cm                                         stepper motor Current / Phase: 1.5A
Length: 34mm                                                                Place of Origin ofstepper motor: Changzhou, China Brand Name of stepper motor: JH     Certification of stepper motor: CE,ROHS ,ISO9001
MOQ of stepper motor: 1PCS                             Packaging Details: EXPORT CARTON
Payment Terms: T/T,L/C, PAYPAL, Western      union Supply Ability: 100000pcs/month
HS code of stepper motor: 8501109990               shaft:5MM*24MM

Model No.	Step distance	Motor Length	Current /Phase	Resistance /Phase	Holding Torque	# of Leads	weight
	Mm/step	(L)mm	A	Ω	Kg.cm	No.	g
17JH4215-01	1.8	34	1.5	1.3	1.7	4	225

Application

Use for robots stepper motor, electronic automatic equipment stepping motor , medical instrument stepping motor,
advertisementing instrument stepper motor, lighting& audio equipment stepper motor ,printer stepper motor, textile machinery stepper motor.
Cnc router stepper motor.

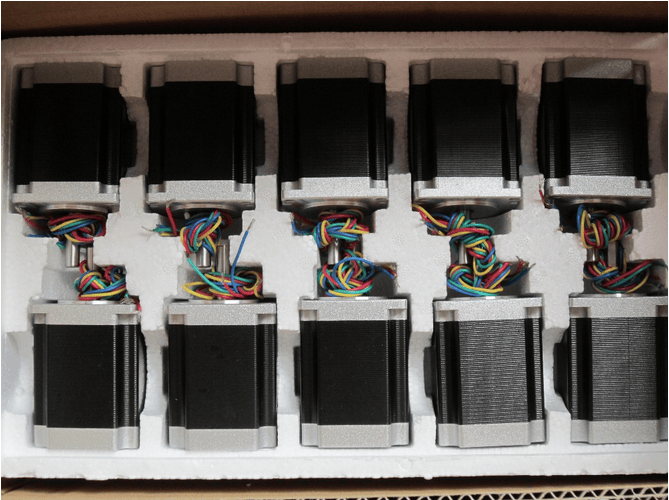

Packing&delivery

Notice:

1.8degree Size 42mm Hybrid stepper motor. 3D Printer stepper motor

42mm size stepper motor , NEMA17 stepping motor,

Small stepping motors, 2 phase 42mm stepper motor, Stepper motor 42mm size

Hybird Stepper Motors

1) CE and RoHS approved

2) We can develop customer design version

FAQ:

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.

If you have another question, pls feel free to contact us as below:

contact name :Fanny Liu

Changzhou JiangHua electric appliance Co., Ltd is located in changzhou qi shuyan, north near Shanghai-nanjing expressway, south meets the 312 national highway, the traffic is very convenient.

Our company specializing in the production of stepping motor with many years of production experience, the product in Beijing, Shanghai, zhejiang and southern region is very popular in the customer high praise. With advanced production equipment, precision testing equipment, exquisite production process.

The company pays attention to the enterprise image, the new products constantly, breed is expanding, continuous improvement technology. The company will continue to with more excellent professionalism dedicated to our machinery equipment industry.

The company continued the effective operation of ISO9001 quality management system, excellent production equipment and advanced production processes, complete test means, perfect service system, will provide our customers with excellent products and services.

Our company carries out the "business-oriented to the letter, walk the world shengwalunding paying court" as our tenet, following the mutual reciprocity and mutual benefit spirit and their clients to establish long-term friendly cooperative partnership. Today's efforts, tomorrow's success, let us cooperate, create together fine tomorrow!
