Hybrid Stepper Planetary Gear Motor (H281-1) with Good Price

Name: Hybrid Stepper Planetary Gear Motor (H281-1) with Good Price
Brand: all-electronics-online.com
SKU: 770441005
Availability: InStock
Rating: 4.8 (60 reviews)

Price:	US $ 30/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	100/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	H281
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	28mm
Step Angle:	1.8
Gearbox:	Has One Gearbox
Number Of Stator:	Two-Phase
Excitation Mode:	HB-Hybrid
Application:	Monitor
Function:	Stepper Motor
Type:	Hybrid Stepper Motor
Certification:	CE Rosh
Brand:	I.CH

Product Description

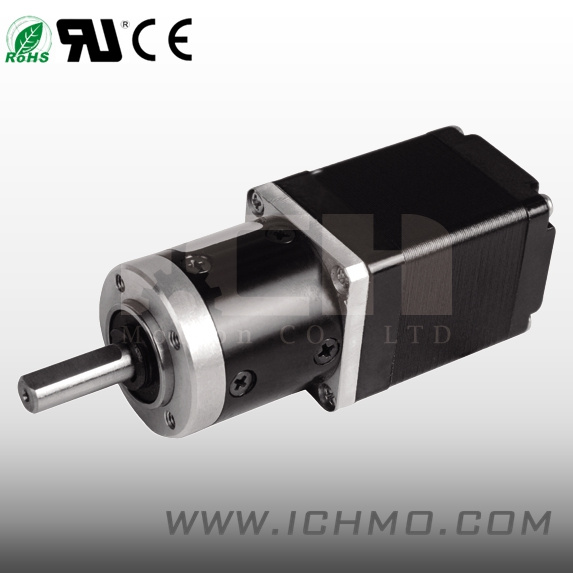

Hybrid Stepper Planetary Gear Motor

HP281-1 28MM
Stepper Angel: 1.8

Motor Electrical Specification
Series Model	Step Angle ( o )	L (mm)	Rated Current (A)	Phase Resistance (Ω)	Phase Inductance (mH)	Holding Torque (N.cm)	Detent Torque (N.cm)	Lead Wire (NO.)	Motor Weight ( g)
HP281-00506	1.8	28	0.6	4.2	2.2	4.5	0.3	4	105
HP281-00606	1.8	33	0.6	5.5	3.2	6.0	0.4	4	110
HP281-00806	1.8	41	0.6	7.0	6.0	8.0	0.5	4	140
Other Motor Electrical Specification please refer to Hybrid Stepper Motor web

Gearbox Specification
Ratio	3.71	5.18	14	19	27	51	71	100	139	189	264	369
Reducer Series	1		2			3				4
Length ( mm)	31.0		40.1			49.0				57.9
Allowable Torque (Kg.cm)	12		20			32				40
Instantaneous Torque (Kg.cm)	36		60			96				120
Efficiency (%)	90%		81%			73%				66%
Weight (g)	60		85			95				110
We can manufacture products according to customer's requirements

I. CH MOTION is specialized in researching, developing and serve electric motor in China. With the professionalism of our highly trained and qualified mechanical engineers, electronic engineers and marketing consultants, we are able to provide product design and integration service to our customers in the world market.

We supply a complete range of electrical/electronic motors including AC motors, AC Gear motor, DC motor, DC Gear motor (spur gearbox and planetary gearbox), Stepper motors (stepping motor or step motor), Worm Geared motors, synchronous motor, brushless motor, servo motor, brake motor, sealed motor, hollow shaft motor, harmonic driver, linear stepper motor and other auxiliary electronic motor controls.

We have established an electrical consortium with small size electric motor manufacturers working as an exclusive exporters and world-wide sourcing agents of small electrical motors. These premium quality products are widely used in industrial automation, commercial and domestic automation.

Feel welcome to review all of our product range.

We are also proud to accept special design requirements from the customers.

Should you have questions about our product range, please contact our Sales Department.
