Hybrid Stepper Servo Motor Hs421 with High Accuracy

Hybrid Stepper Servo Motor Hs421 with High Accuracy
Price: US $ 50-55/Piece
Trade Terms: FOB,CIF
Min Order: 50/Piece
Pay Type: T/T
Prod Model: HS421
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size: 42mm
Resistance: 100min 500VDC
Tem.: 0-55
Excitation Mode: HB-Hybrid
Type: Magnetic-Electric
Speed: 0-3000rpm

Product Description

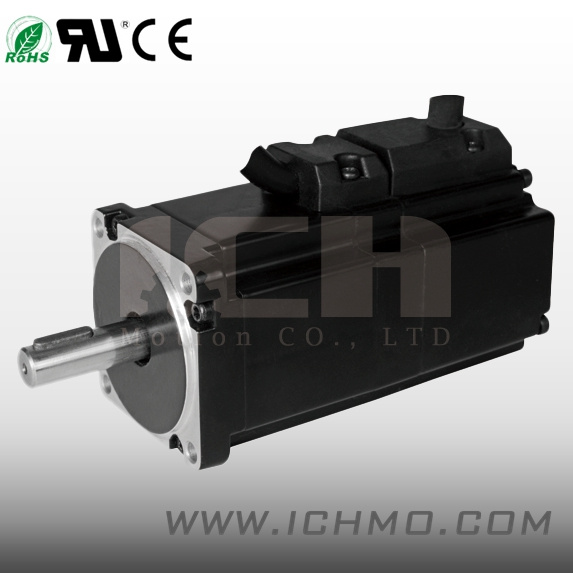

I.CH Motion Hybrid Stepper Servo Motor HS421
General Specifications


Speed:0-3000RPM
Insulation Resistance:100MIN,500VDC
Ambient Temperature:(0-55ºC
Encoder lines:2500/1000

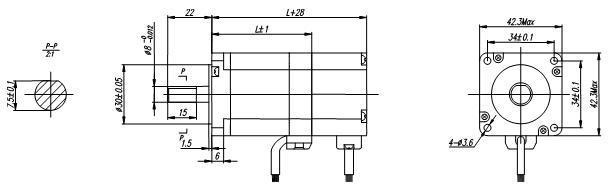

Drawing:



Electrical Specification
Series ModelRated Voltage  (V)L
(mm)
Phase Current   (A)Phase
Resistance
(Ω)
Phase
Inductance(mH)
Holding Torque
(N.cm)
Moment of Inertia   (g.cm2)Motor
Weight
( g)
HS421-05013A4.16511.33.25.55077530
HS421-05023A2.3512.31.01.95077530
HS421-05613A4.94671.33.88.556115670
HS421-07023A3.22672.31.43.170115670
I. CH MOTION is specialized in researching, developing and serve electric motor in China. With the professionalism of our highly trained and qualified mechanical engineers, electronic engineers and marketing consultants, we are able to provide product design and integration service to our customers in the world market.

We supply a complete range of electrical/electronic motors including AC motors, AC Gear motor, DC motor, DC Gear motor (spur gearbox and planetary gearbox), Stepper motors (stepping motor or step motor), Worm Geared motors, synchronous motor, brushless motor, servo motor, brake motor, sealed motor, hollow shaft motor, harmonic driver, linear stepper motor and other auxiliary electronic motor controls.

We have established an electrical consortium with small size electric motor manufacturers working as an exclusive exporters and world-wide sourcing agents of small electrical motors. These premium quality products are widely used in industrial automation, commercial and domestic automation.

Feel welcome to review all of our product range.

We are also proud to accept special design requirements from the customers.

Should you have questions about our product range, please contact our Sales Department.
