Hybrid Stepper Servo Motor Hs861 (86mm, 2Phase)

Hybrid Stepper Servo Motor Hs861 (86mm, 2Phase)
Price: US $ 55-80/Piece
Trade Terms: FOB
Min Order: 50/Piece
Pay Type: T/T
Prod Model: HS861(1.8degree)86mm-2 Phase
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size: 86mm
Resisitance: 100min,500VDC
Ambient Tem: 0-55

Product Description

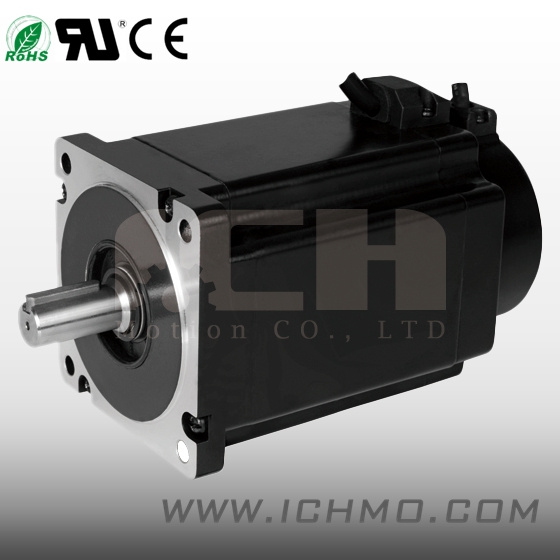

I.CH Motion Hybrid Stepper Servo Motor HS861
General Specifications

Speed:0-3000RPM
Insulation Resistance:100MIN,500VDC
Ambient Temperature:(0-55ºC
Encoder lines:2500/1000

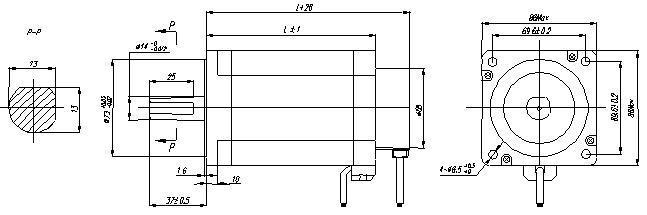

Drawing:


Electrical Specification
Series         ModelRated Voltage(V)L
(mm)
Phase Current (A)Phase
Resistance
( Ω )
Phase
Inductance  (mH)
Holding Torque
(N.cm)
Moment of Inertia  (g.cm2)Motor
Weight
( g)
HS861-42056A1.68805.60.33.042014002400
HS861-48070A1.96807.00.281.848014002400
HS861-80056A2.521145.60.455.580027003720
HS861-80070A2.661147.00.383.280027003720
HS861-120056A3.641505.60.658.4120040004500
HS861-120070A3.151507.00.455.2120040004500
I. CH MOTION is specialized in researching, developing and serve electric motor in China. With the professionalism of our highly trained and qualified mechanical engineers, electronic engineers and marketing consultants, we are able to provide product design and integration service to our customers in the world market.

We supply a complete range of electrical/electronic motors including AC motors, AC Gear motor, DC motor, DC Gear motor (spur gearbox and planetary gearbox), Stepper motors (stepping motor or step motor), Worm Geared motors, synchronous motor, brushless motor, servo motor, brake motor, sealed motor, hollow shaft motor, harmonic driver, linear stepper motor and other auxiliary electronic motor controls.

We have established an electrical consortium with small size electric motor manufacturers working as an exclusive exporters and world-wide sourcing agents of small electrical motors. These premium quality products are widely used in industrial automation, commercial and domestic automation.

Feel welcome to review all of our product range.

We are also proud to accept special design requirements from the customers.

Should you have questions about our product range, please contact our Sales Department.
