| Prod Model: |
I-TECH 12000HD |
| Amplifier Type: |
Digital Power Amplifier Class HD |
| Frequency Response: |
20Hz-20kHz |
| Power Handling: |
2400watts |
| Sensitivity(1W/1m): |
0.775V |
| Channels Number: |
2 |
| Power Voltage: |
AC220V or AC110V |
| Power Plug: |
European, American, Asia or Customise |
| Warranty: |
3 Year |
| Net Weight: |
11kg/PCS |
| Dimension: |
55*54*13cm/PCS |
| Type: |
Professional Amplifier |
| Usage: |
Professional Performance |
| Used For: |
Professional |
| Tube Type: |
Transistor Amplifier |
| Function: |
Digital Power Amplifier |
| Voltage: |
AC 220V |
| Element Number: |
Push-Pull Amplifier |
| Sound Channel: |
2 |
| Output Number: |
2 |
| Conductive Mode: |
HD Class |
Product Description

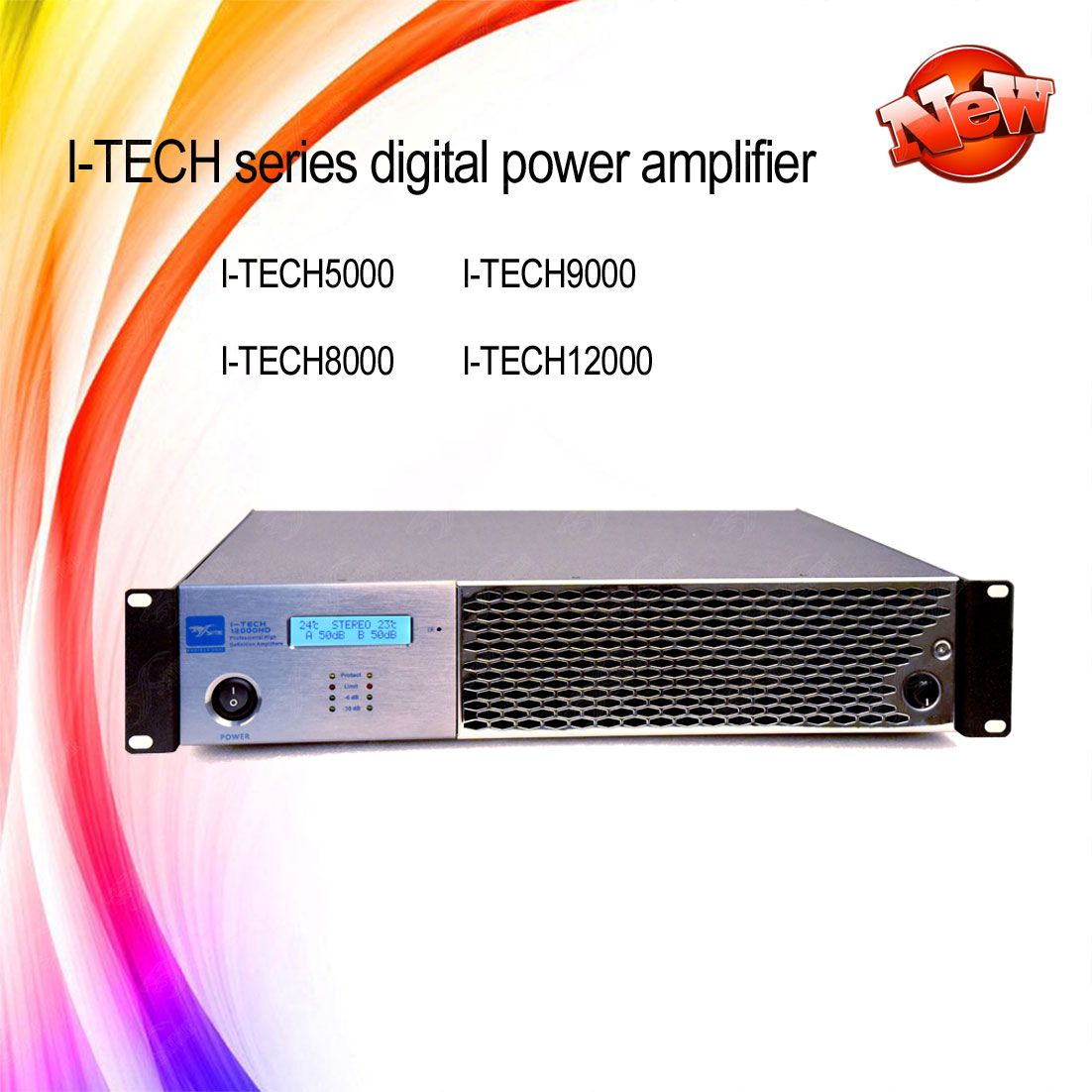

I-TFCH 12000HD 2U space digital professional power amplifier
Power amplifier
Professional power amplifier
Digital power amplifier
Amplifier power
This series amplifier is the latest designed amplifier of Skytone audio, it's switch power supply digital amplifier, lightweight with high performance, more efficient than transformer power amplifier.
Skytone 12 years experience provide you professional products and service.

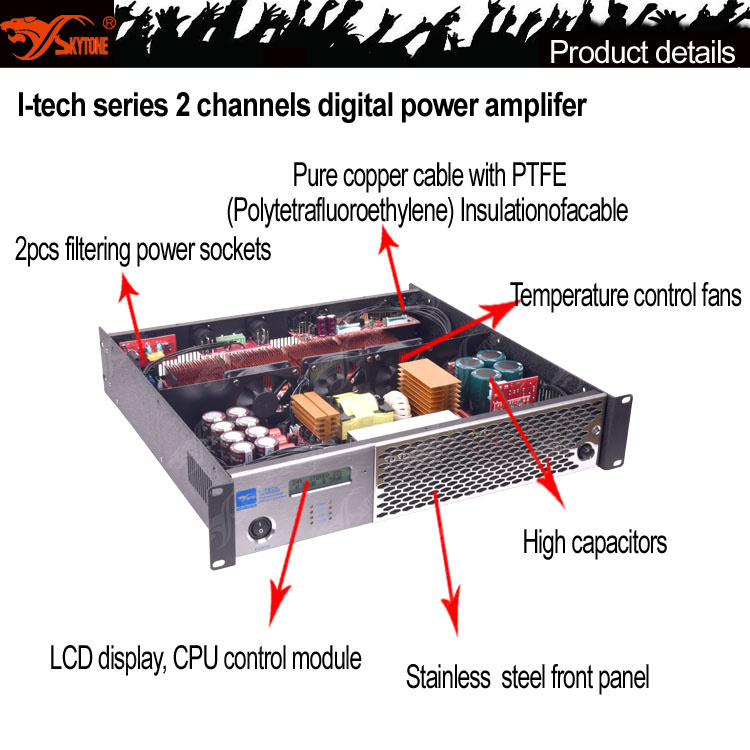

Features:
1. LCD display: Can help you to check the amplifier temperature and how long time used.
2. Filtering power plug: Connecting wireless microphone, mixer, processor ect, have filtering function.
3. Volume control: Two channels can be controlled at same time.
4. Cables: Using Pure copper cable with Polytetrafluoroethene(PTFE) Insulationofacable, high temperature, resistance heavy current, Non- Oxidation for long time using.
5.Using Advanced Welding Procedure,preventing oxidation and poor connect, fuse for preventing DC overload
6.JICON large volume capacitor from listed state-owned enterprise, wide frequency
7.powerful in low frequency, the delicate mid-high frequency highlights the appealing wide-range of frequency
8.Intelligent fans: dust-removing while powered on, the fans smoothly start working when temperature reaching 40 degrees , / silent mode at normal times to prolong the service life.
9.Adopt Taiwan X2 safety capacitor to prevent interference electricity clutters.
10.Adopt multiple MOTOLORA bridge parallel rectifiers and customized-mold radiator,low resistance,high loading capacity,large dynamic ON LF.
High power extreme professional power amplifier specifications:
| Technical Specification | I-Tech12000HD |
| PMPO(peak ) | 2 ohms Stereo Dual | 8600 |
| 4 ohms Stereo Dual | 7200 |
| 8 ohms Stereo Dual | 3600 |
| Rated power(20Hz-20KHz) | 2 ohms Stereo Dual | 5760 |
| 4 ohms Stereo Dual | 4800 |
| 8 ohms Stereo Dual | 2400 |
| safe protection | Dc protection | √ |
| Short circuit protection | √ |
| Overheat Protection | √ |
| Input Overload Protection | √ |
| Output Overload Protection | √ |
| Frequency Response(1W 8ohms) | 20Hz-20KHz(±3dB) |
| Sensitivity(8ohms 1KHz) | 0.775v |
| Installation space | 2U |
| Cooling system | intelligent system,automatic adjustment according to changing
temperature |
| Size(WXHXD) | 46cm X 48.5cm X9.5cm |
| Net Weight | 11kg |
| After-sales service | 3 years Warranty (non-artificial Damage) |

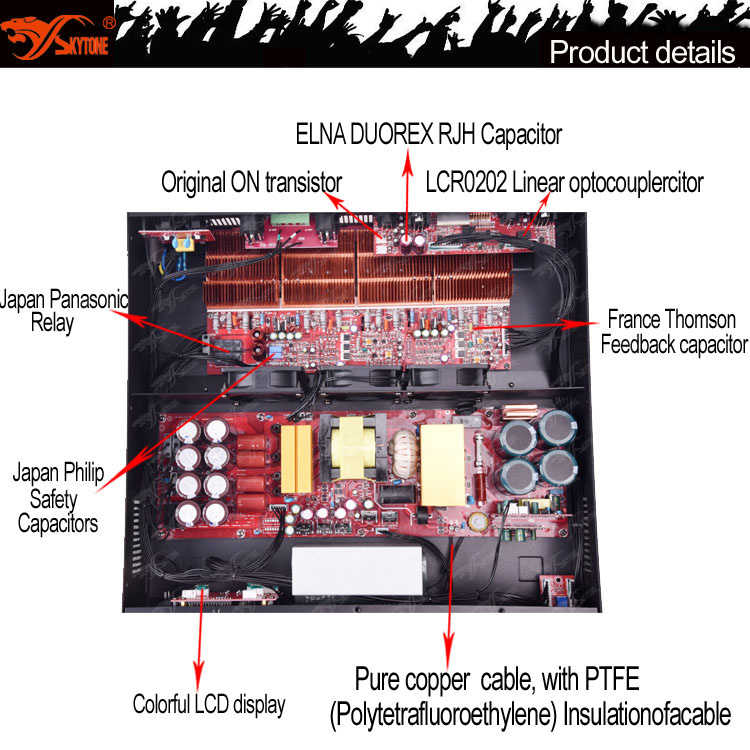

Product details:
Details informations for the componments: 1.Pure copper , high-power output inductor :
Characteristic:Ensure output having a large dynamic range
2.High-class French Thomson feedback capacitor
Characteristic:It is important for the subtleness and width of mid-high frequency .
3.Original On Semi compound zener-transistor
Characteristic: stabilized voltage power-supply of preceding stage
4.ELNA DUOREX RJH hifi capacitor (purple body with gold letter, transparent sound, moderate speed,low distortion, high resolution)
Characteristic: stabilized voltage power-supply filtering of preceding stage
5.Original America ADI OP275G op-amp
Characteristic: preceding stage amplification
6.Panasonic Output Relay
Characteristic:Boot with mute protection, DC protection
7.Philips safety capacitor
characteristic:To prevent the self-excitation caused by long distance audio cable transmission
8.Taiwan X2 safety capacitor
Characteristic: To prevent interference from electricity clutters
9. high-power soft boot NTC
Characteristic: To Prevent the boot impact upon power grid
10. The whole machine all adopts pure copper cables with PTFE (Polytetrafluoroethylene) Insulationofacable
Characteristic: Heat-resistance, strong current-resistance, Long-time oxidation-resistanceCustomer feedback:
Package1.One power amplifier fill in one carton case.
2.Rack case, based on your quantity requirements.
Shipping
1. Sample order for shipping via DHL/FEDEX/UPS/TNT/EMS.
2. Large order for shipping by sea or air.
3. Sending to customise forwarder warehouse.

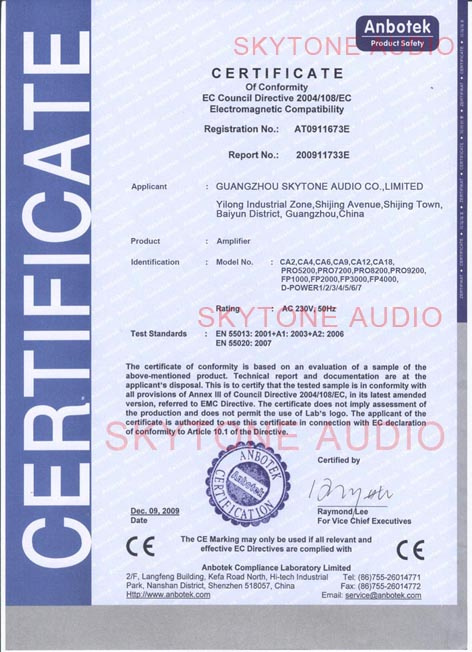

Certificate
Our service:Pre-sale ServiceA. Quality is our company's culture.
B. Reasonable price and reliable service
C. Rich experience of design, manufacture and sell Pro-audio, Speakers, amplifiers, mixers, microphones, processors etc, we cherish every order from our honor.Middle-sale ServiceA. Checking the most suitable shipping ways for customers.
B. Testing quality again before sending goods.
C. Sending the tracking number/bill of loading, and update the situations of the goods till customers receive the goodsAfter-sale serviceA. We are very glad that customer give us some suggestion for price and products.
B. If you have any question, please contact with us freely by E-mail or Telephone Our advantages:1.Experienced staff answer all your questions with fluent English.
2.Specialized in speakers over 12 years in China.
3.Quality is the soul of our enterprise.
4.We think our products will give you an edge over your competitors.
5.Hope fully to become yours trustworthy company in China.
6.Welcome OEM and ODM. If you have any question about I-Tech 12000HD 2u Space Digital Professional Power Amplifier ,feel free to contact peach!!
