| Prod Model: |
I-tech |
| Amplifier Type: |
Digital Power Amplifier Class D |
| Frequency Response: |
20Hz-20kHz |
| Power Handling: |
2400watts |
| Sensitivity(1W/1m): |
1.55V |
| Channels Number: |
2 |
| Power Voltage: |
AC220V or AC110V |
| Power Plug: |
European, American, Asia or Customise |
| Dimenson: |
55*54*13cm/PCS |
| Net Weight: |
12.6kg/PCS |
| Installation Space: |
2u |
| Type: |
Professional Amplifier |
| Usage: |
Professional Performance |
| Used For: |
Professional |
| Tube Type: |
Transistor Amplifier |
| Function: |
Post Amplifier |
| Voltage: |
AC 220V |
| Element Number: |
Push-Pull Amplifier |
| Sound Channel: |
2 |
| Output Number: |
2 |
| Conductive Mode: |
HD |
Product Description

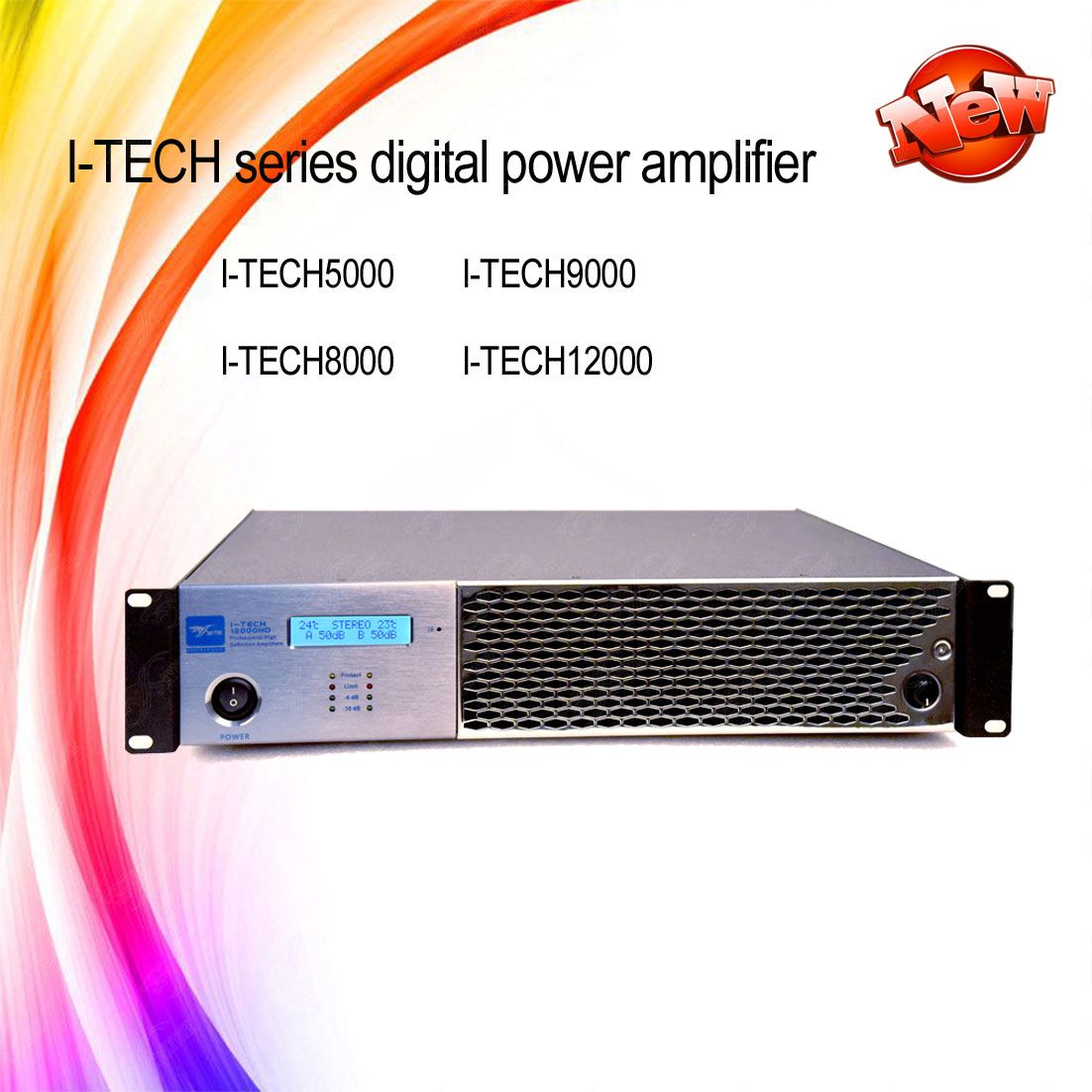

I-TECH series professional audio power ampilfier
Professional audio power amplifier
Power Amplifier system
Switch power supply digital amplifier
Lightweight with high performance
More efficient than transformer power amplifier.
Skytone 12 years experience provide you professional products and service.
On audio processing and circuit protecting aspect is in the leading place.

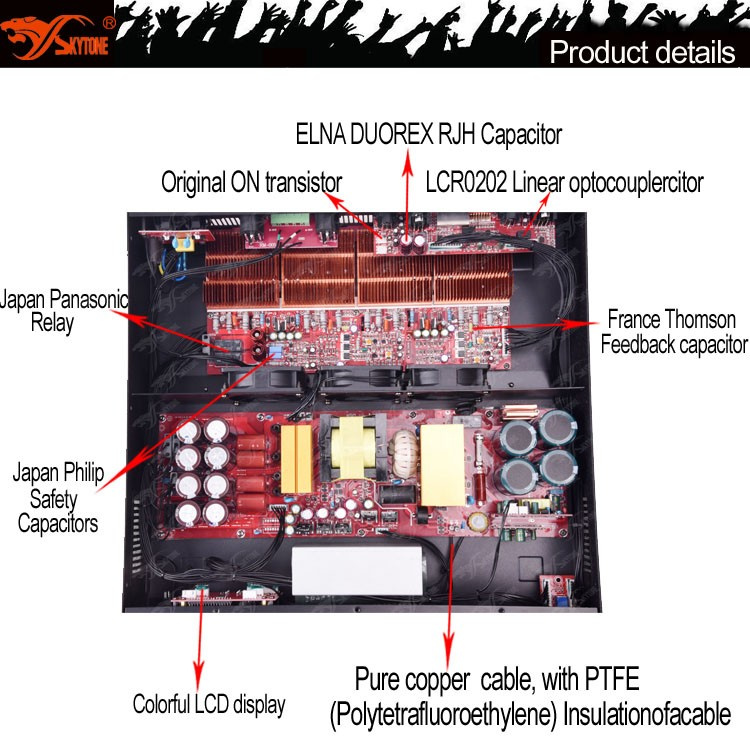

I-TECH Series Power amplifier Features:
1.Adopt USA ADI original OP275G hiif dual pa amp
2.Adopt high-class French Thomson feedback capacitor to deal with the subtlesness and width of mid-high frequency,so that the sound quality is delicate,soft,listenable without restlessness.
3.Adopt original On Semi MJD 340G and MJD 350G high-class special-used triode transistor. On Semi advantage: high-voltage resistance ,sound quality powerful,clear and delicate.
4.Adopt ELNA DUOREX RJH HIFI capacitor for stabilized voltage power-supply filtering of proceeding stage.
5. LCD display: Can help you to check the amplifier temperature and how long time used.
6. Filtering power plug: Connecting wireless microphone, mixer, processor ect, have filtering function.
7. Volume control: Two channels can be controlled at same time.
8. Cables: Using Polytetrafluoroethene(PTFE) cables, high temperature, resistance heavy current, Non- Oxidation for long time using.
9. Intelligent system,automatic adjustment according to changing temperature
10.Adopt Japan original Panasonic output relay for booting with mute protection and DC protection.

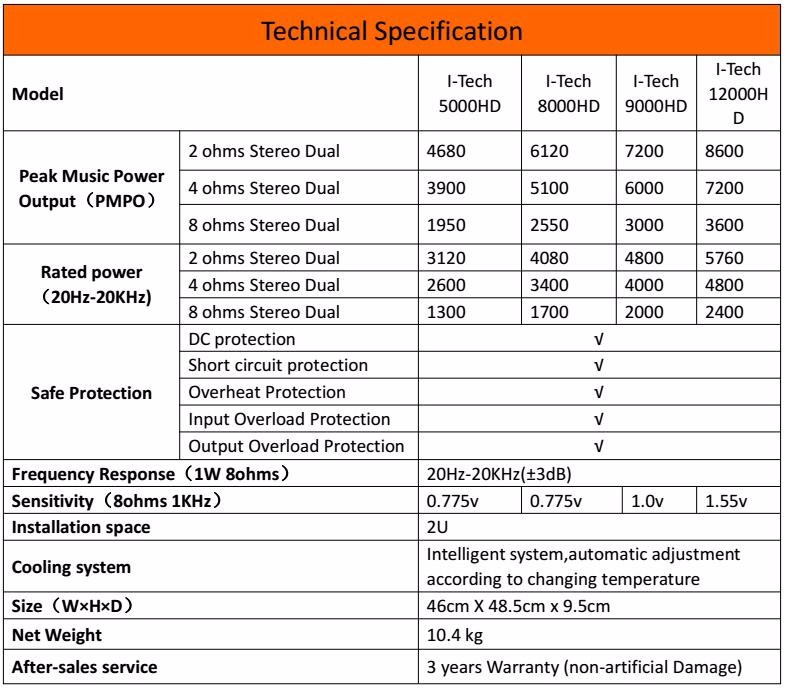

I-TECH Series Power amplifier Specifications:
| Technical Specification | I-Tech
5000HD | I-Tech
8000HD | I-Tech
9000HD | I-Tech
12000HD |
PMPO
(peak ) | 2 ohms Stereo Dual | 4680 | 6120 | 7200 | 8600 |
| 4 ohms Stereo Dual | 3900 | 5100 | 6000 | 7200 |
| 8 ohms Stereo Dual | 1950 | 2550 | 3000 | 3600 |
| 20Hz-20KHz | 2 ohms Stereo Dual | 3120 | 4080 | 4800 | 5760 |
| 4 ohms Stereo Dual | 2600 | 3400 | 4000 | 4800 |
| 8 ohms Stereo Dual | 1300 | 1700 | 2000 | 2400 |
| safe protection | Dc protection | √ |
| Short circuit protection | √ |
| Overheat Protection | √ |
| Input Overload Protection | √ |
| Output Overload Protection | √ |
| Frequency Response | 20Hz-20KHz(±3dB) |
| Sensitivity | 0.775v | 0.775v | 1.0v | 1.55v |
| Installation space | 2U |
| Cooling system | intelligent system,automatic adjustment according to changing temperature |
| Size(W×H×D) | 46cm X 48.5cm x 9.5cm |
| Net Weight | 10kg | 10.3kg | 10.5kg | 11kg |
| After-sales service | 3 years Warranty (non-artificial Damage) |
More details about I-TECH digital power amplifier:
I-TECH series professional power Amplifier:
I-TECH series power amplifier in audio processing:
1.The original ADI OP275G have a fever amplifier for signal amplification
2.The senior French Thomson capacitance to deal with the delicate in high frequency and the width, so that delicate voice, soft, resistance to listen, restlessness.
3. The original ON advanced audio special tube, the original ON high withstand voltage, the sound is very thick and strong, delicate, very clear
4. To increase the power output of copper hollow inductance to ensure high dynamic output
5. The Japanese original ELNA purple gown RJH fever capacitors for the former stage of voltage regulation and power filter
I-TECH series power amplifier in circuit protection:
1.Using the original Japanese Panasonic relay to prevent the boot mute protection, DC protection
2. Low frequency thick and powerful in high frequency overtone to highlight the delicate Charm
3. DC power overload insurance, with the ability to prevent the city electric clutter interference
4. Intelligent temperature control system of heat treatment, low resistance, high loading capacity, low frequency dynamic
5. High temperature, high current, long time no oxidation
