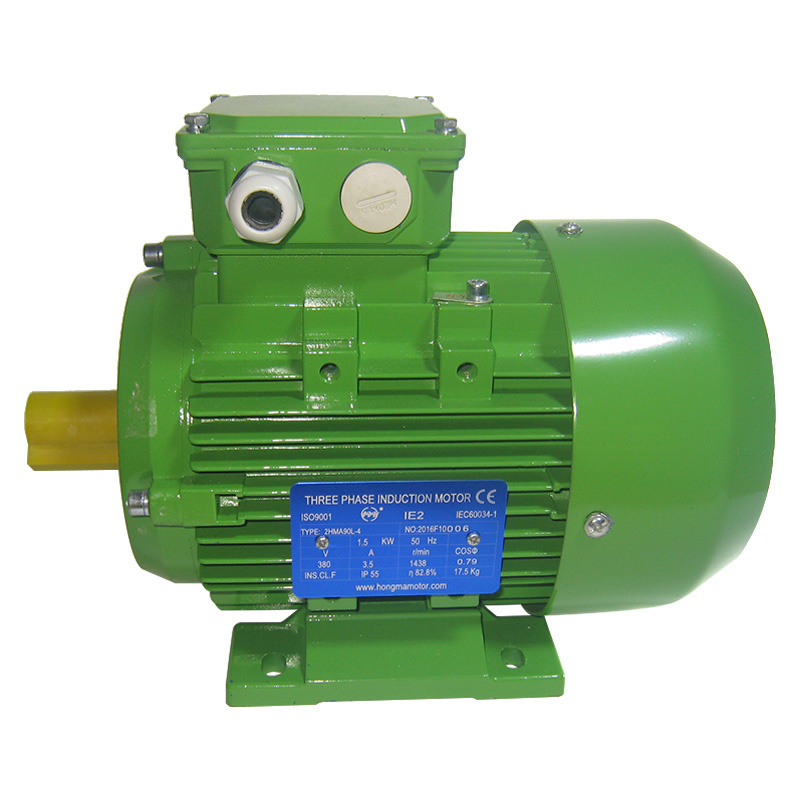

Ie2 Ye2 High Efficiency Three Phase AC Motor Cast Iron Frame Electrical Motor Engine

Name: Ie2 Ye2 High Efficiency Three Phase AC Motor Cast Iron Frame Electrical Motor Engine
Brand: all-electronics-online.com
SKU: 804638675
Availability: InStock
Rating: 5 (52 reviews)

Price:	US $ 26.2-13466/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	IE2 YE2 Series Electric motor
Output Range:	0.75kw-355kw
Cooling Method:	IC411
Mounting:	Foot Mounted, Flange Mounted, Vertical Mounted
Insulation Class:	B, F, H
Protection:	IP44, 54, 55
Rated Frequency:	50, 60Hz
Number Of Stator:	Three-Phase
Function:	Driving
Certification:	Ce
Number Of Poles:	2-6 Poles

Product Description

Performance and Characteristics:

IE2 motors in Hongma the type is HM2 Series.
The technical data:

HM2 Series motor technical data
Type		Rated Output	Rated Speed	Efficiency	Power Factor	Rated current(A)			Ts/Tn		Is/In	Weight(Alu)	Weight(CI)
		Rated Output	Rated Speed	Efficiency	Power Factor	Rated current(A)						Weight(Alu)	Weight(CI)
		(kW)	(rpm)	(%)	Cosφ	380V	400V	415V				(Kg)	(Kg)
HM2	801-2	0.75	2875	77.4	0.83	1.8	1.7	1.6	2.5	3	5.3	10.5	18
HM2	802-2	1.1	2888	79.6	0.84	2.5	2.4	2.3	3.2	3.8	7	11.2	19
HM2	90S-2	1.5	2887	81.3	0.84	3.3	3.2	3.1	2.7	3.5	7.1	14.5	25
HM2	90L-2	2.2	2889	83.2	0.85	4.7	4.5	4.3	2.4	3	6.9	16.8	28
HM2	100L-2	3	2890	84.6	0.87	6.2	5.9	5.7	3.2	4	8	21.5	34
HM2	112M-2	4	2901	85.8	0.88	8.0	7.6	7.4	2.5	3	7.5	27.5	45
HM2	132S1-2	5.5	2915	87	0.88	10.9	10.4	10.0	2.7	3.5	7.5	41.5	67
HM2	132S2-2	7.5	2915	88.1	0.88	14.7	14.0	13.5	2.4	3.3	7.5	47	73
HM2	160M1-2	11	2930	89.4	0.89	21.0	20.0	19.2	2.2	2.9	7.6	72	123
HM2	160M2-2	15	2940	90.3	0.89	28.4	26.9	26.0	2.3	3	7.6	83	127
HM2	160L-2	18.5	2940	90.9	0.90	34.4	32.6	31.5	2.3	3.1	7.4	90	158
HM2	180M-2	22	2945	91.3	0.90	40.7	38.6	37.2	2.8	3	8.2	/	190
HM2	200L1-2	30	2950	92	0.90	55.1	52.3	50.4	2.6	3	7.8		256
HM2	200L2-2	37	2955	92.5	0.90	67.5	64.2	61.8	2.6	3	7.7		265
HM2	225M-2	45	2975	92.9	0.90	81.8	77.7	74.9	2.4	2.6	7.5		332
HM2	250M-2	55	2975	93.2	0.90	99.6	94.6	91.2	2.3	2.8	7.1		423
HM2	280S-2	75	2985	93.8	0.90	135.0	128.2	123.6	2.5	2.8	7.4		592
HM2	280M-2	90	2972	94.1	0.91	159.7	151.7	146.2	2.8	2.8	7.6		690
HM2	315S-2	110	2982	94.3	0.91	194.8	185.0	178.3	2.4	2.9	6.9		1110
HM2	315M-2	132	2982	94.6	0.91	233.0	221.3	213.3	2.6	2.9	7.1		1222
HM2	315L1-2	160	2979	94.8	0.92	278.7	264.8	255.2	2.5	2.8	7.1		1230
HM2	315L2-2	200	2979	95	0.92	347.7	330.3	318.4	2.5	2.8	6.9		1270
HM2	355M-2	250	2979	95.0	0.92	434.6	412.9	398.0	2.5	2.8	7		1800
HM2	355L-2	315	2979	95.0	0.92	547.6	520.2	501.4	2.5	2.9	6.9		1900
HM2	802-4	0.75	1428	79.6	0.76	1.9	1.8	1.7	2.4	2.9	5	10.5	18
HM2	90S-4	1.1	1431	81.4	0.77	2.7	2.5	2.4	3	3.5	6	15	25
HM2	90L-4	1.5	1438	82.8	0.79	3.5	3.3	3.2	3.2	3.8	6.8	17.5	31
HM2	100L1-4	2.2	1441	84.3	0.81	4.9	4.7	4.5	3	3.5	7	24	37
HM2	100L2-4	3	1429	85.5	0.82	6.5	6.2	6.0	2.6	3.3	7	25	40
HM2	112M-4	4	1444	86.6	0.82	8.6	8.1	7.8	3.5	4	7.5	32	46
HM2	132S-4	5.5	1456	87.7	0.83	11.5	10.9	10.5	2.2	2.8	6.4	46	73
HM2	132M-4	7.5	1455	88.7	0.84	15.3	14.5	14.0	2.4	3	7	54	88
HM2	160M-4	11	1470	89.8	0.84	22.2	21.0	20.3	2.5	2.9	6.9	77	134
HM2	160L-4	15	1470	90.6	0.85	29.6	28.1	27.1	2.5	3	7.5	90	153
HM2	180M-4	18.5	1475	91.2	0.86	35.8	34.0	32.8	2.6	3.1	7.8	/	194
HM2	180L-4	22	1475	91.6	0.86	42.4	40.3	38.9	2.6	3.1	7.5		198
HM2	200L-4	30	1480	92.3	0.86	57.4	54.6	52.6	2.4	2.9	7.1		293
HM2	225S-4	37	1485	92.7	0.87	69.7	66.2	63.8	2.5	2.7	7.5		298
HM2	225M-4	45	1485	93.1	0.87	84.4	80.2	77.3	2.5	2.8	7.6		335
HM2	250M-4	55	1480	93.5	0.87	102.7	97.6	94.1	2.6	2.7	7.3		462
HM2	280S-4	75	1485	94	0.87	139.3	132.4	127.6	2.7	2.7	7.6		582
HM2	280M-4	90	1489	94.2	0.87	166.9	158.5	152.8	2.7	2.7	7.5		717
HM2	315S-4	110	1492	94.5	0.88	201.0	190.9	184.0	2.7	2.9	7.1		1128
HM2	315M-4	132	1486	94.7	0.88	240.7	228.6	220.4	2.7	2.9	7.3		1201
HM2	315L1-4	160	1486	94.9	0.89	287.8	273.4	263.6	3	3	7.4		1210
HM2	315L2-4	200	1487	95.1	0.89	359.0	341.1	328.7	3	3	7.6		1368
HM2	355M-4	250	1485	95.1	0.90	443.8	421.6	406.4	2.8	2.9	7.5		1740
HM2	355L-4	315	1490	95.1	0.90	559.2	531.2	512.0	2.6	2.8	7.4		1800
HM2	90S-6	0.75	944	75.9	0.72	2.1	2.0	1.9	2.2	2.4	4.5	13.5	24
HM2	90L-6	1.1	928	78.1	0.73	2.9	2.8	2.7	2.4	2.6	4.5	18	29
HM2	100L-6	1.5	939	79.8	0.75	3.8	3.6	3.5	1.8	2.2	4.2	22.5	33
HM2	112M-6	2.2	936	81.8	0.76	5.4	5.1	4.9	2.3	2.8	4.5	27	45
HM2	132S-6	3	960	83.3	0.76	7.2	6.8	6.6	1.8	2.4	4.5	38.5	63
HM2	132M1-6	4	957	84.6	0.76	9.5	9.0	8.7	2.3	2.7	5	44.5	75
HM2	132M2-6	5.5	962	86	0.77	12.6	12.0	11.6	1.9	2.8	5.5	52.5	86
HM2	160M-6	7.5	975	87.2	0.77	17.0	16.1	15.5	2	3	6.5	77	128
HM2	160L-6	11	975	88.7	0.78	24.2	22.9	22.1	2.4	3.3	7.5	90	159
HM2	180L-6	15	975	89.7	0.81	31.4	29.8	28.7	2	2.7	6.4	/	209
HM2	200L1-6	18.5	985	90.4	0.81	38.4	36.5	35.1	2.3	3	7		222
HM2	200L2-6	22	980	90.9	0.83	44.3	42.1	40.6	2.3	2.8	7		267
HM2	225M-6	30	985	91.7	0.84	59.2	56.2	54.2	2.2	2.7	6.5		282
HM2	250M-6	37	985	92.2	0.86	70.9	67.4	64.9	2.5	2.7	6.9		443
HM2	280S-6	45	990	92.7	0.86	85.8	81.5	78.5	2.2	2.4	7		566
HM2	280M-6	55	994	93.1	0.86	104.4	99.2	95.6	2.4	2.5	7.1		631
HM2	315S-6	75	992	93.7	0.86	141.4	134.3	129.5	2.8	3	7.3		1140
HM2	315M-6	90	991	94	0.86	169.2	160.7	154.9	2.7	2.9	7.1		1207
HM2	315L1-6	110	991	94.3	0.86	206.1	195.8	188.7	2.9	2.9	7.4		1234
HM2	315L2-6	132	990	94.6	0.87	243.7	231.5	223.1	3	3.1	7.6		1320
HM2	355M1-6	160	990	94.8	0.88	291.4	276.8	266.8	3.1	3.1	7.6		1550
HM2	355M3-6	200	991	95	0.88	363.5	345.3	332.8	3	3	7.8		1700
HM2	355L2-6	250	992	95.0	0.88	454.4	431.6	416.0	3.1	3	7.7		1900

Certificate:

If you need any motors customized, you could also contact us as below, we could discuss more details.
Marina Meng
Mob: +86 18936592965

Located in Ningbo City, an open seaport of China, we are one of the main manufacturer specialized in the manufacture of small & medium size electrical machinery in China. With a powerful scientific and technical force, advanced developing mode, high efficiency production facilities, complete testing conditions and consummate modernized management system, our company manufacture all the products in conformity with the IEC standards and the products have been reached the advanced level of the same products in the world. It has obtained the quality license for export electrical machinery, the ISO 9001: 2008 Quality Management Certificate, CE conformity and China CCC authentication. What's more, we have obtained direct importing and exporting rights which are approved by Chinese government.

Company's main products are: 1HM Series Three Phase Asynchronous Electric Motor, 2HM Series High Efficiency Electric Motor, 3HM Series Premium Efficiency Electric motor, HM Series Large Power Electric Motor, ML/MU/MY/MB Series Singe Phase Asynchronous Motor, HMD Variable Speed Motor, HMEJ(AC) Series Self-Braking Electric Motor (AC), HMEJ(DC) Series Self-Braking Electric Motor (DC), HMVP Series Integrated Frequency Inverter Motor, ST Series Servo Motor, HMG Series Screw Compressor Motor, HMP Series Pump Motor, GOST R standard Motor and UL NEMA Standard Motor.

We are looking for new distributors and agents in the whole worldwide to expand our sales network. Welcomes contact us to build business relationship and friendship.

Fenghua City Hongma Motor Co., Ltd.

Address: No. 4 Changhe North Road., Fangqiao, Fenghua, Ningbo, Zhejiang, China

Company Tel: +86 574 88650088

Sales Tel: +86-574-55339278

Fax: +86 574 88650988

Mob: +86 136 8583 1788

Website: HTTP: //www. Hongmamotor. Net
