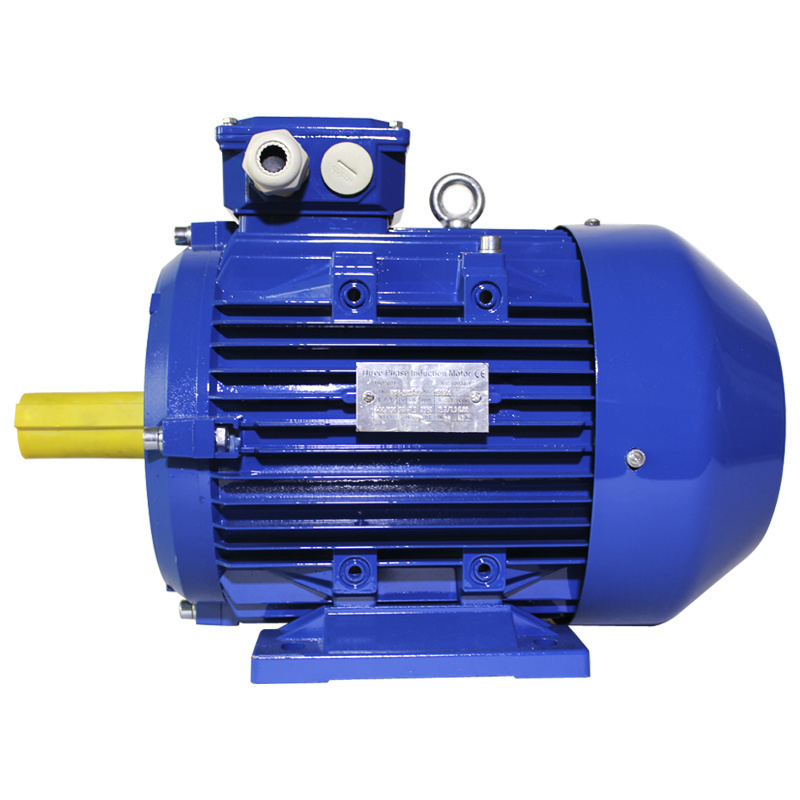

Ie3 Ye3 Premium Efficiency High Efficiency Three Phase Asynchronous AC Electrical Motor

Name: Ie3 Ye3 Premium Efficiency High Efficiency Three Phase Asynchronous AC Electrical Motor
Brand: all-electronics-online.com
SKU: 804512475
Availability: InStock
Rating: 4.3 (137 reviews)

Price:	US $ 20.88-172/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	IE3 YE3 HMA3 three phase
Output Range:	0.09kw-7.5kw
Cooling Method:	IC411
Mounting:	Foot Mounted, Flange Mounted, Vertical Mounted
Insulation Class:	F
Protection:	IP 55
Number Of Stator:	Single-Phase
Function:	Driving
Certification:	Ce

Product Description

Performance and Characteristics:

IE3 motors in Hongma the type is HM3 Series.
The technical data:

HM3 Series technical data
TYPE		Rated Output	Rated Speed	Efficiency	Power Factor	Rated current(A)			Ts/Tn	Tmax/Tn	Is/In	Weight(Alu)	weight(CI)
TYPE		(kW)	(rpm)	(%)	Cosφ	380V	400V	415V	Ts/Tn	Tmax/Tn	Is/In	Weight(Alu)	weight(CI)
HM3	80M1-2	0.75	2880	80.7	0.82	1.72	1.6	1.6	2.2	2.3	7	18.1	64
HM3	80M2-2	1.1	2880	82.7	0.83	2.43	2.3	2.2	2.2	2.3	7.9	19.5	64
HM3	90S-2	1.5	2895	84.2	0.84	3.22	3.1	3.0	2.2	2.3	7.9	23.3	69
HM3	90L-2	2.2	2895	85.9	0.85	4.58	4.3	4.2	2.2	2.3	7.9	27.1	69
HM3	100L-2	3	2895	87.1	0.87	6.02	5.7	5.5	2.2	2.3	8.1	38.8	76
HM3	112M-2	4	2905	88.1	0.88	7.84	7.4	7.2	2.2	2.3	8.1	48.3	79
HM3	132S1-2	5.5	2930	89.2	0.88	10.65	10.1	9.7	2.2	2.3	8.1	55.1	81
HM3	132S2-2	7.5	2930	90.1	0.88	14.37	13.7	13.2	2.2	2.3	8.1	69.2	81
HM3	160M1-2	11	2945	91.2	0.89	20.59	19.6	18.9	2.2	2.3	8.1	128	83
HM3	160M2-2	15	2945	91.9	0.89	27.86	26.5	25.5	2.2	2.3	8.1	134	83
HM3	160L-2	18.5	2955	92.4	0.89	34.18	32.5	31.3	2.2	2.3	8.1	149	83
HM3	180M-2	22	2955	92.7	0.89	40.52	38.5	37.1	2	2.3	8.1	200	85
HM3	200L1-2	30	2960	93.3	0.89	54.89	52.1	50.3	2	2.3	8.1	255	86
HM3	200L2-2	37	2960	93.7	0.89	67.41	64.0	61.7	2	2.3	8.1	280	86
HM3	225M-2	45	2965	94	0.90	80.82	76.8	74.0	2	2.3	8.1	375	88
HM3	250M-2	55	2970	94.3	0.90	98.46	93.5	90.2	2	2.3	8.1	428	91
HM3	280S-2	75	2975	94.7	0.90	133.70	127.0	122.4	2	2.3	8.1	513	93
HM3	280M-2	90	2975	95	0.90	159.94	151.9	146.4	2	2.3	8.1	595	93
HM3	315S-2	110	2978	95.2	0.90	195.07	185.3	178.6	1.8	2.2	7.7	970	94
HM3	315M-2	132	2978	95.4	0.90	233.59	221.9	213.9	1.8	2.2	7.7	1100	94
HM3	315L1-2	160	2980	95.6	0.91	279.44	265.5	255.9	1.8	2.2	7.7	1185	94
HM3	315L2-2	200	2980	95.8	0.91	348.57	331.1	319.2	1.8	2.2	7.7	1301	94
HM3	355M-2	250	2982	95.8	0.91	435.71	413.9	399.0	1.6	2.2	7.7	1685	102
HM3	355L-2	315	2982	95.8	0.91	549.00	521.5	502.7	1.6	2.2	7.7	1734	102
HM3	802-4	0.75	1420	82.5	0.75	1.84	1.7	1.7	2.3	2.3	6.5	18.4	61
HM3	90S-4	1.1	1445	84.1	0.76	2.61	2.5	2.4	2.3	2.3	6.5	24.2	64
HM3	90L-4	1.5	1445	85.3	0.77	3.47	3.3	3.2	2.3	2.3	6.5	29.7	64
HM3	100L1-4	2.2	1435	86.7	0.81	4.76	4.5	4.4	2.3	2.3	7.5	41.5	69
HM3	100L2-4	3	1435	87.7	0.82	6.34	6.0	5.8	2.3	2.3	7.5	45.5	69
HM3	112M-4	4	1440	88.6	0.82	8.37	7.9	7.7	2.3	2.3	7.5	63.2	70
HM3	132S-4	5.5	1460	89.6	0.83	11.24	10.7	10.3	2.3	2.3	7.5	71.2	76
HM3	132M-4	7.5	1460	90.4	0.84	15.01	14.3	13.7	2.3	2.3	7.5	85.1	76
HM3	160M-4	11	1465	91.4	0.85	21.51	20.4	19.7	2.2	2.3	8.9	125	78
HM3	160L-4	15	1465	92.1	0.86	28.77	27.3	26.3	2.2	2.3	8.9	147	78
HM3	180M-4	18.5	1470	92.6	0.86	35.30	33.5	32.3	2.2	2.3	7.9	198	80
HM3	180L-4	22	1470	93	0.86	41.79	39.7	38.3	2.2	2.3	7.9	213	80
HM3	200L-4	30	1475	93.6	0.86	56.63	53.8	51.9	2.2	2.3	7.9	282	80
HM3	225S-4	37	1485	93.9	0.86	69.62	66.1	63.7	2.2	2.3	7.9	331	81
HM3	225M-4	45	1485	94.2	0.86	84.40	80.2	77.3	2.2	2.3	7.9	365	81
HM3	250M-4	55	1485	94.6	0.86	102.72	97.6	94.1	2.2	2.3	7.9	430	82
HM3	280S-4	75	1486	95	0.88	136.31	129.5	124.8	2.2	2.3	7.9	565	83
HM3	280M-4	90	1486	95.2	0.88	163.23	155.1	149.5	2.2	2.3	7.9	654	83
HM3	315S-4	110	1488	95.4	0.89	196.84	187.0	180.2	2.1	2.2	7.6	995	91
HM3	315M-4	132	1488	95.6	0.89	235.72	223.9	215.8	2.1	2.2	7.6	1136	91
HM3	315L1-4	160	1488	95.8	0.89	285.12	270.9	261.1	2.1	2.2	7.6	1185	91
HM3	315L2-4	200	1490	96	0.90	351.71	334.1	322.0	2.1	2.2	7.6	1311	91
HM3	355M-4	250	1490	96.0	0.90	439.64	417.7	402.6	2.1	2.2	7.6	1830	97
HM3	355L-4	315	1490	96.0	0.90	553.94	526.2	507.2	2.1	2.2	7.6	1950	97
HM3	90S-6	0.75	935	78.9	0.71	2.03	1.9	1.9	2	2.1	5.9	24.1	64
HM3	90L-6	1.1	945	81	0.73	2.83	2.7	2.6	2	2.1	5.9	25.7	64
HM3	100L-6	1.5	949	82.5	0.73	3.78	3.6	3.5	2	2.1	5.9	34.9	68
HM3	112M-6	2.2	955	84.3	0.74	5.36	5.1	4.9	2	2.1	6.9	54.2	72
HM3	132S-6	3	968	85.6	0.74	7.20	6.8	6.6	2.1	2.1	6.9	62.3	76
HM3	132M1-6	4	968	86.8	0.74	9.46	9.0	8.7	2.1	2.1	6.9	75.2	76
HM3	132M2-6	5.5	968	88	0.75	12.66	12.0	11.6	2.1	2.1	6.9	82.3	76
HM3	160M-6	7.5	970	89.1	0.79	16.19	15.4	14.8	2	2.1	6.9	128	80
HM3	160L-6	11	970	90.3	0.80	23.14	22.0	21.2	2	2.1	6.9	146	80
HM3	180L-6	15	978	91.2	0.81	30.85	29.3	28.2	2	2.1	7.5	196	79
HM3	200L1-6	18.5	980	91.7	0.81	37.84	36.0	34.7	2.1	2.1	7.5	261	79
HM3	200L2-6	22	980	92.2	0.81	44.76	42.5	41.0	2.1	2.1	7.5	265	79
HM3	225M-6	30	980	92.9	0.83	59.11	56.2	54.1	2	2.1	7.5	305	80
HM3	250M-6	37	985	93.3	0.84	71.73	68.1	65.7	2.1	2.1	7.5	380	82
HM3	280S-6	45	985	93.7	0.85	85.85	81.6	78.6	2.1	2	7.5	495	84
HM3	280M-6	55	985	94.1	0.86	103.26	98.1	94.6	2.1	2	7.5	573	84
HM3	315S-6	75	988	94.6	0.84	143.40	136.2	131.3	2	2	7.5	887	88
HM3	315M-6	90	988	94.9	0.85	169.52	161.0	155.2	2	2	7.5	952	88
HM3	315L1-6	110	988	95.1	0.86	204.35	194.1	187.1	2	2	7.3	1121	88
HM3	315L2-6	132	988	95.4	0.86	244.45	232.2	223.8	2	2	7.3	1247	88
HM3	355M1-6	160	990	95.6	0.87	292.29	277.7	267.6	1.9	2	7.3	1715	89
HM3	355M3-6	200	990	95.8	0.87	364.60	346.4	333.8	1.9	2	7.3	1846	89
HM3	355L2-6	250	990	95.8	0.86	461.05	438.0	422.2	1.9	2	7.3	2102	89

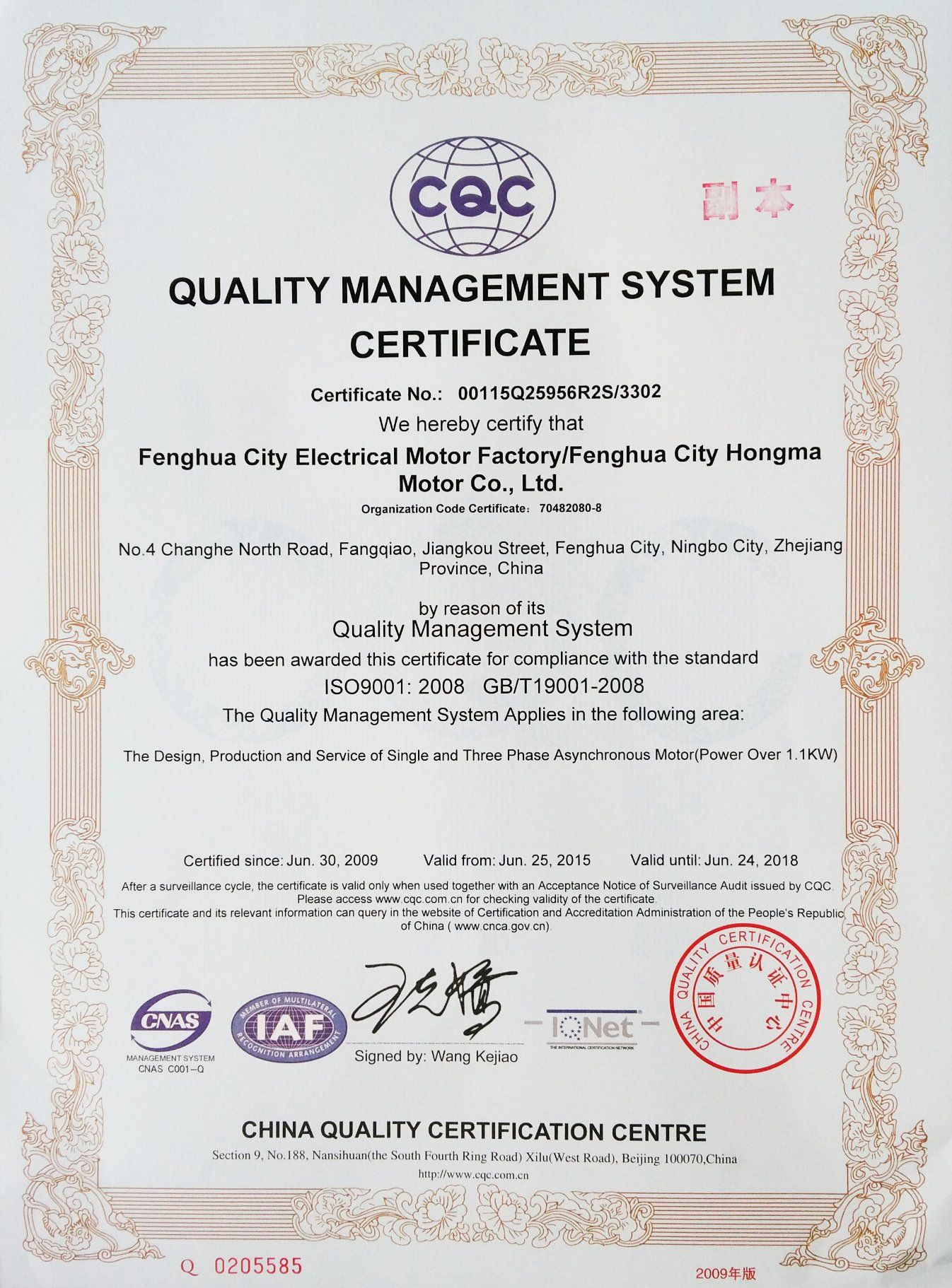

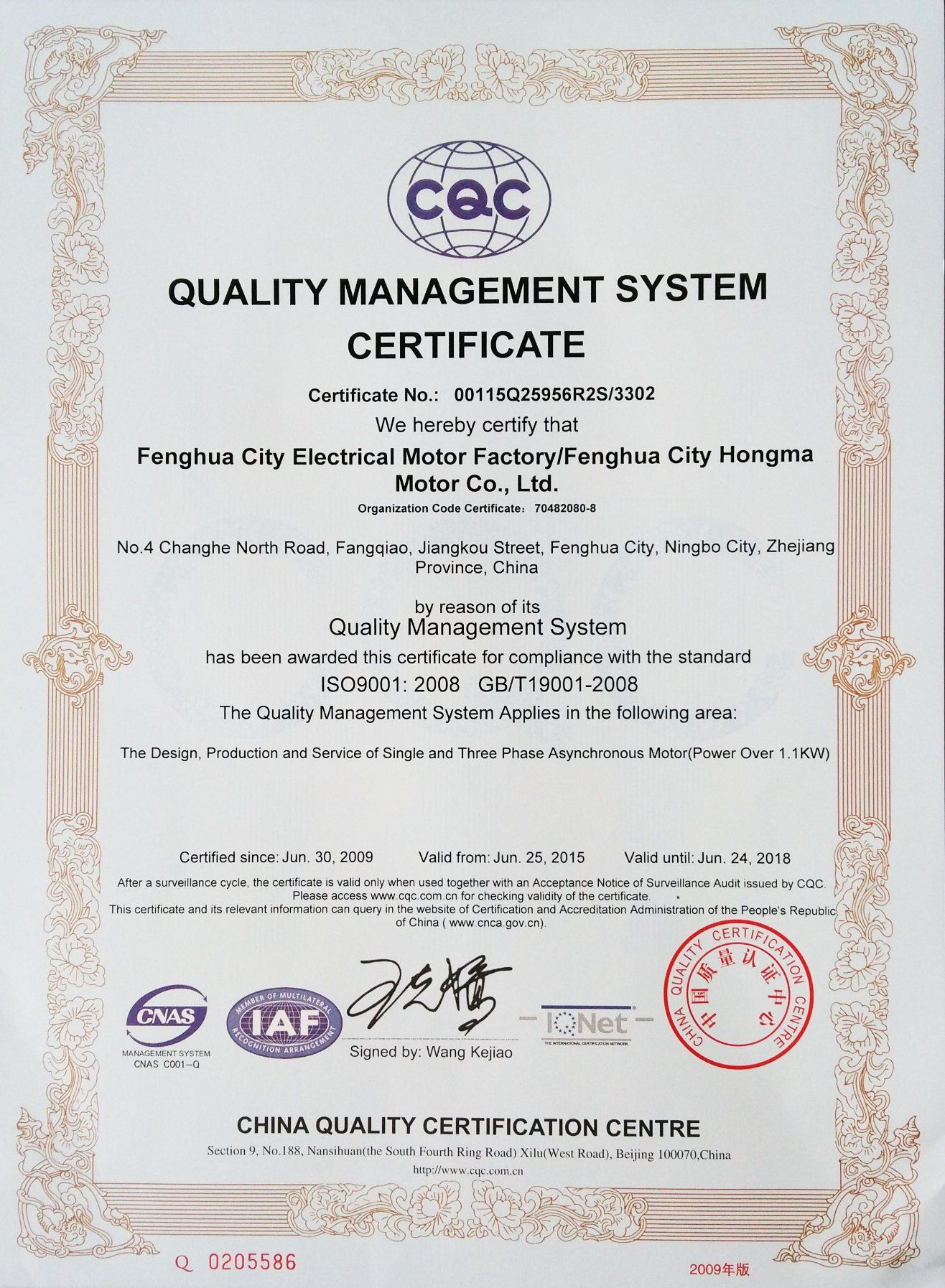

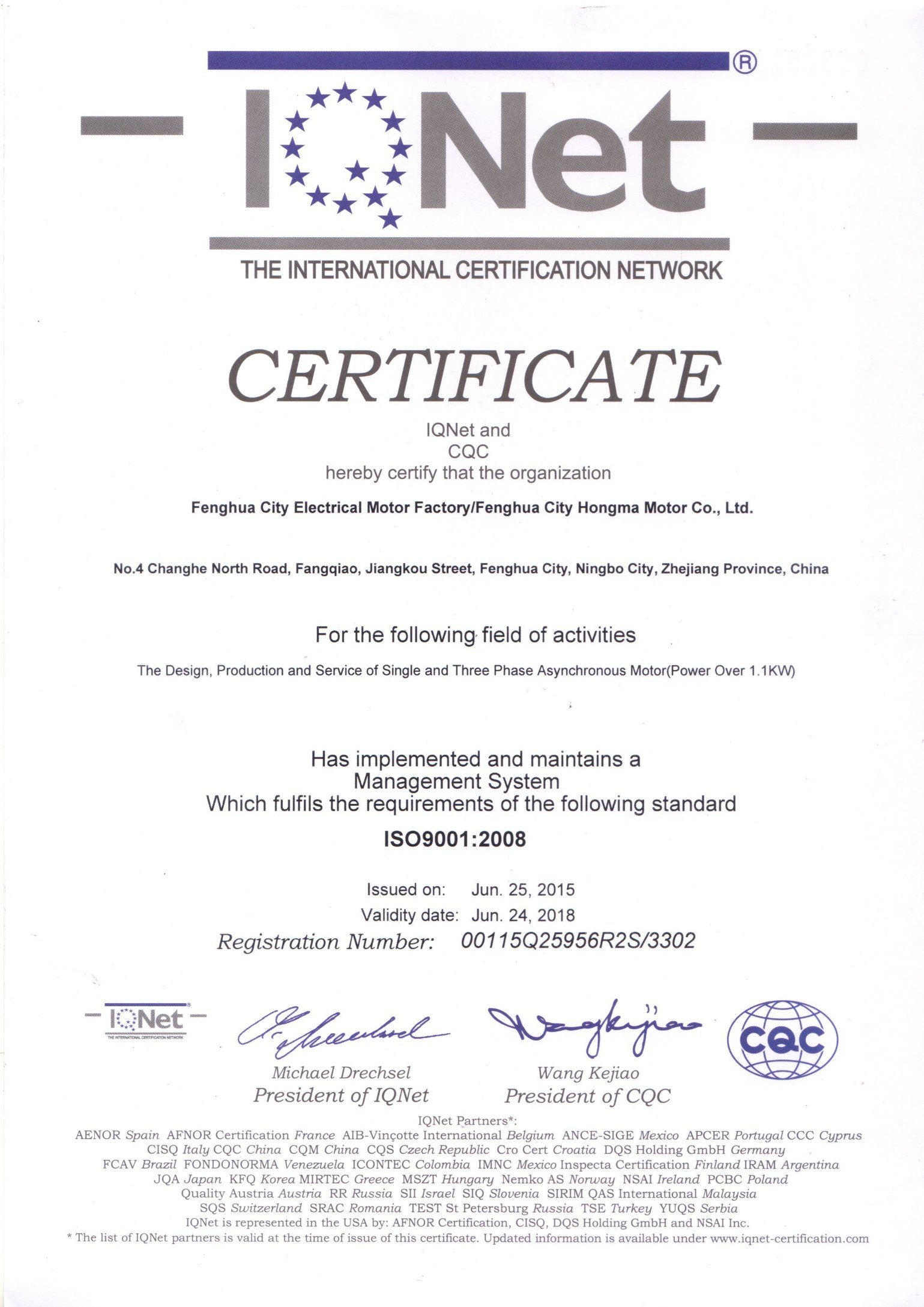

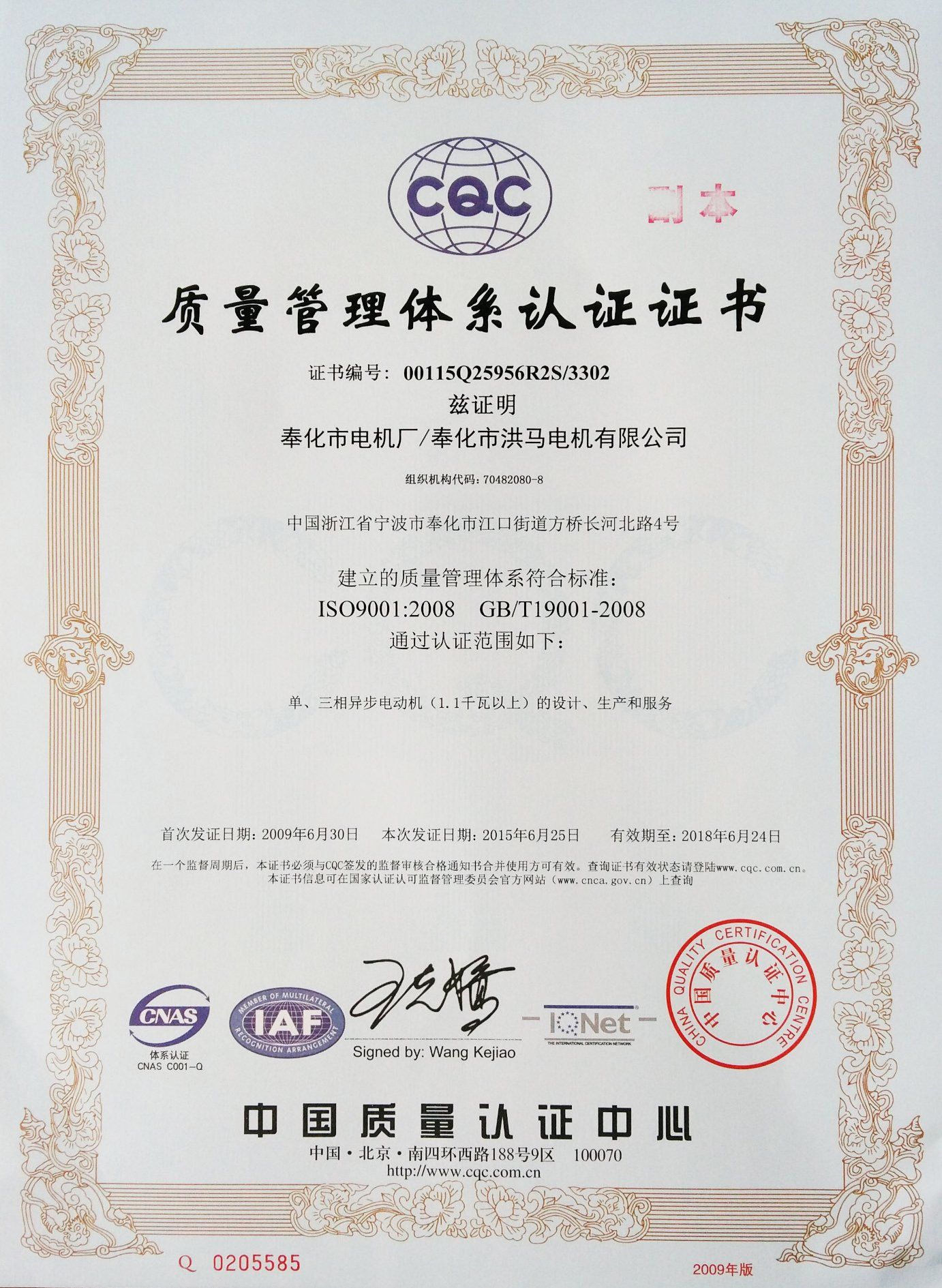

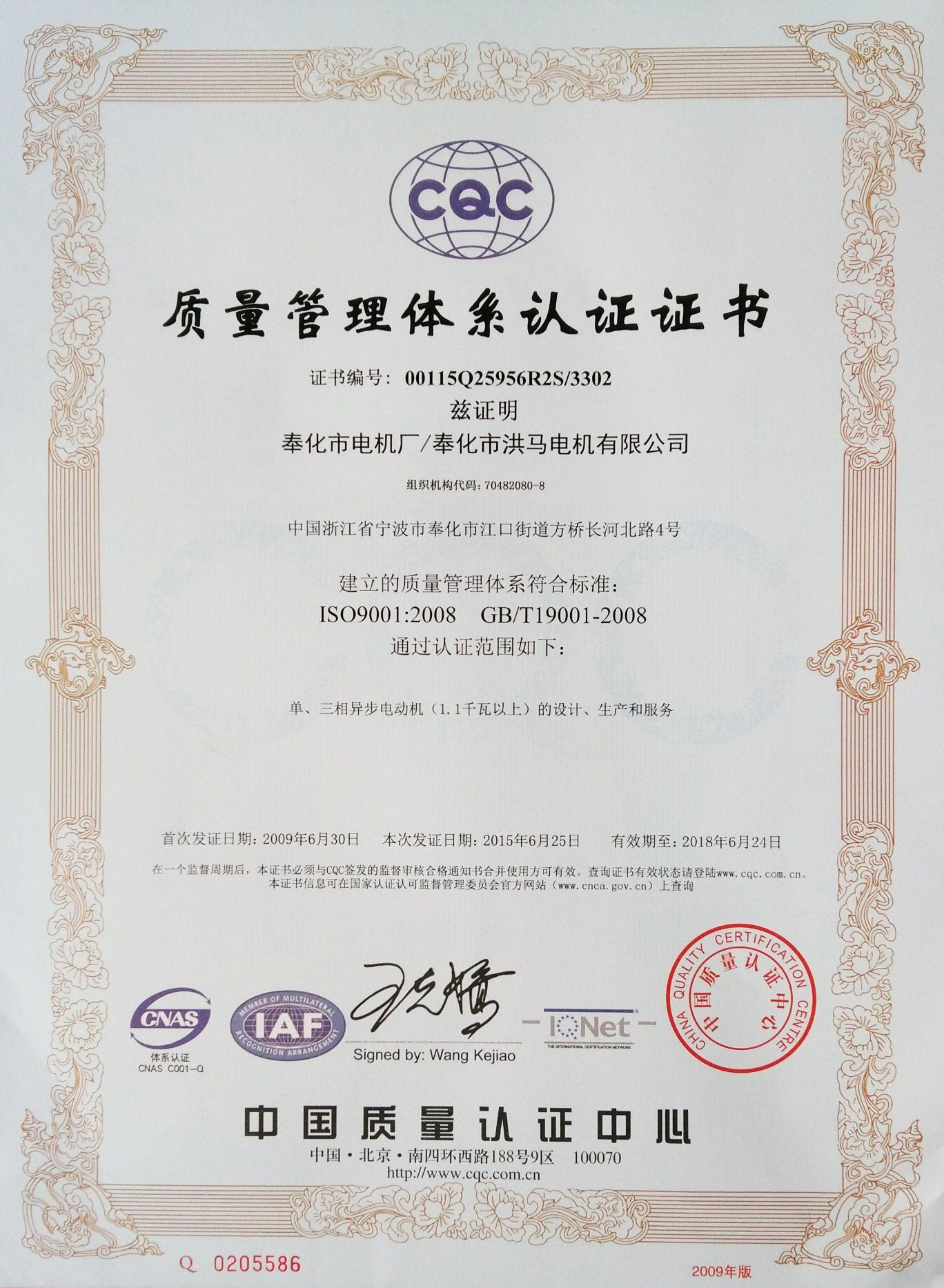

Certificate:

If you need any motors customized, you could also contact us as below, we could discuss more details.
Marina Meng
Mob: +86 18936592965

Located in Ningbo City, an open seaport of China, we are one of the main manufacturer specialized in the manufacture of small & medium size electrical machinery in China. With a powerful scientific and technical force, advanced developing mode, high efficiency production facilities, complete testing conditions and consummate modernized management system, our company manufacture all the products in conformity with the IEC standards and the products have been reached the advanced level of the same products in the world. It has obtained the quality license for export electrical machinery, the ISO 9001: 2008 Quality Management Certificate, CE conformity and China CCC authentication. What's more, we have obtained direct importing and exporting rights which are approved by Chinese government.

Company's main products are: 1HM Series Three Phase Asynchronous Electric Motor, 2HM Series High Efficiency Electric Motor, 3HM Series Premium Efficiency Electric motor, HM Series Large Power Electric Motor, ML/MU/MY/MB Series Singe Phase Asynchronous Motor, HMD Variable Speed Motor, HMEJ(AC) Series Self-Braking Electric Motor (AC), HMEJ(DC) Series Self-Braking Electric Motor (DC), HMVP Series Integrated Frequency Inverter Motor, ST Series Servo Motor, HMG Series Screw Compressor Motor, HMP Series Pump Motor, GOST R standard Motor and UL NEMA Standard Motor.

We are looking for new distributors and agents in the whole worldwide to expand our sales network. Welcomes contact us to build business relationship and friendship.

Fenghua City Hongma Motor Co., Ltd.

Address: No. 4 Changhe North Road., Fangqiao, Fenghua, Ningbo, Zhejiang, China

Company Tel: +86 574 88650088

Sales Tel: +86-574-55339278

Fax: +86 574 88650988

Mob: +86 136 8583 1788

Website: HTTP: //www. Hongmamotor. Net
