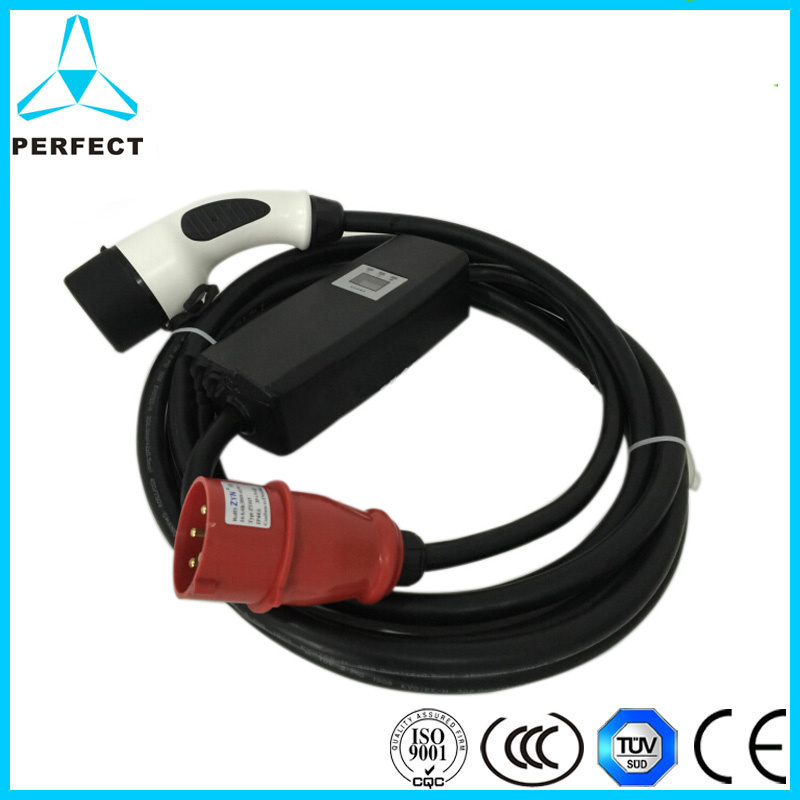

IEC 62196 Portable Type 2 Mobile Evse Charger

Prod Model:	PERFECT-EV-32P
Product Name:	Mode 2 Portable Evse Mobile Charging Stations
Rated Current:	16A/32A
Rated Voltage:	120-240V
Grounding:	Standard Grounding
Terminal Temperature Rise:	<50k
Withstand Voltage:	2000V
Insulation Resistance:	>1000mΩ(DC500V)
Contact Impedance:	0.5mΩ Max
Vibration Resistance:	Meet Jdq53.36.1.1-53.36.1.2
Mechanical Llife:	No-Load Plug in/Pull out>10000ti
Application:	Car
Environmental Protection:	General
Connection Mode:	Push-Pull Connection
Shape:	Round
Contact Termination Form:	Pressure Welding
Brand:	Perfect
Type:	Plug with Socket

Product Description

IEC62196 New Version portable EV charger
PERFECT EV Charger (Portable Cord) for TESLA MODEL S, NISSAN LEAF, BMW i3, VW E-UP!, MITSUBISHI i-MIEV, FORD FOCUS ELECTRIC, KIA SOUL EV, OPEL AMPERA, VW E-GOLF and others.

Type 2 Portable EV charger
Type 2 plug-to-car Schuko (CEE 7/4) plug-to-wall (can be custom built to fit different sockets)
Level 2 Charging
220V-240V AC, 8A-32A adjustable, 3.6 kW/7.6kW
Waterproof (IP 55)
18ft meters cord

Specifications:
1. 110/220 VAC 50Hz/60Hz 16A
2. Input: 110/220 VAC 50Hz/60Hz 16A(Max)
3. 220 VAC 50Hz/60Hz 32A
4. Output: 110/220 VAC 50Hz/60Hz 32A(Max)
5. Operating Temperature:-25ºC to +50ºC
6. IP Class:In-Cable box: IP 54
7. Charging connector: IP54

Standards	IEC 62196-2
Voltage	220V AC
Current	8A/16A/32A AC
Frequency	50Hz/60Hz
Insulation Resistance	>10MΩ
Operating Temperature	-25ºC to +55ºC
Storage Temperature	-40ºC to +80ºC
Operating Humidity	5%~95%RH(non-condensing)
Enclosure	In-Cable box: IP 54 Charging connector:IP 54

Other specification is also available according to your requirements. (OEM, ODM )
Pls. contact us freely for more information, I will reply you ASAP!
Hope you will enjoy a comfortable cooperation with us!


Feature:
With LCD display.
Colors can be customized.
For the wall side plugs: It can be installed according to the different countries situation as below:
NZ customers---------Australian plug ,Max 10A.
UK customers---------UK BS1363, Max 13A.
EU customers------ --Schuko, 16A blue CEE plug , Max 16A.
EU customers------ --32A blue CEE plug, Max 32A.
