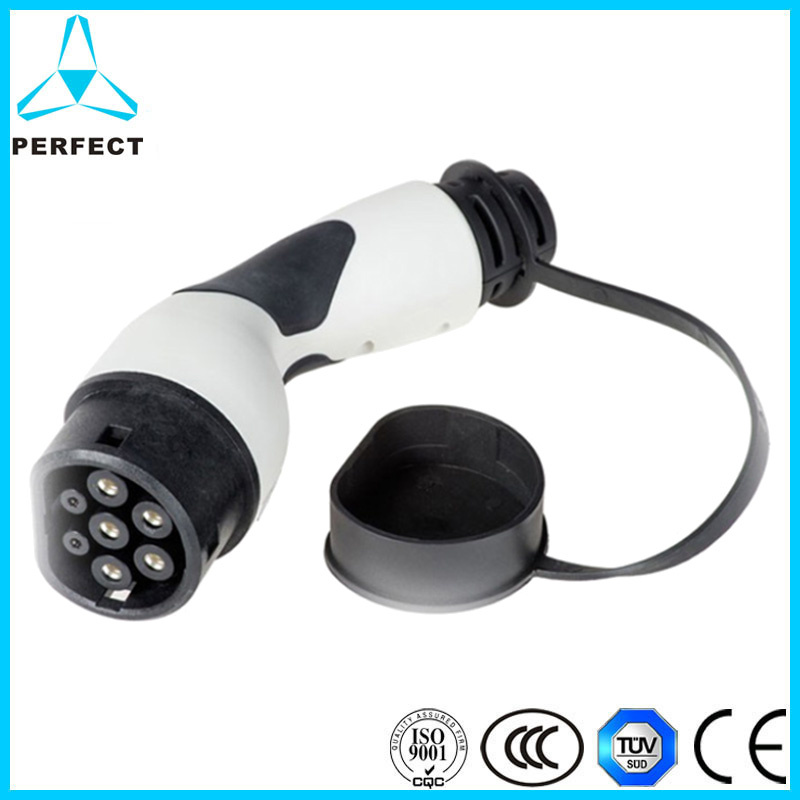

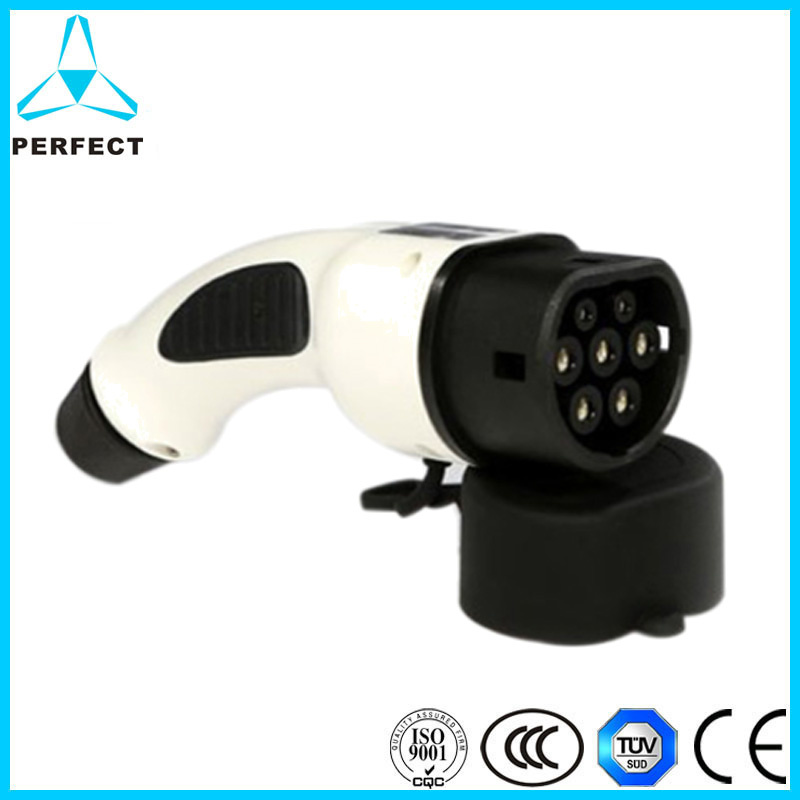

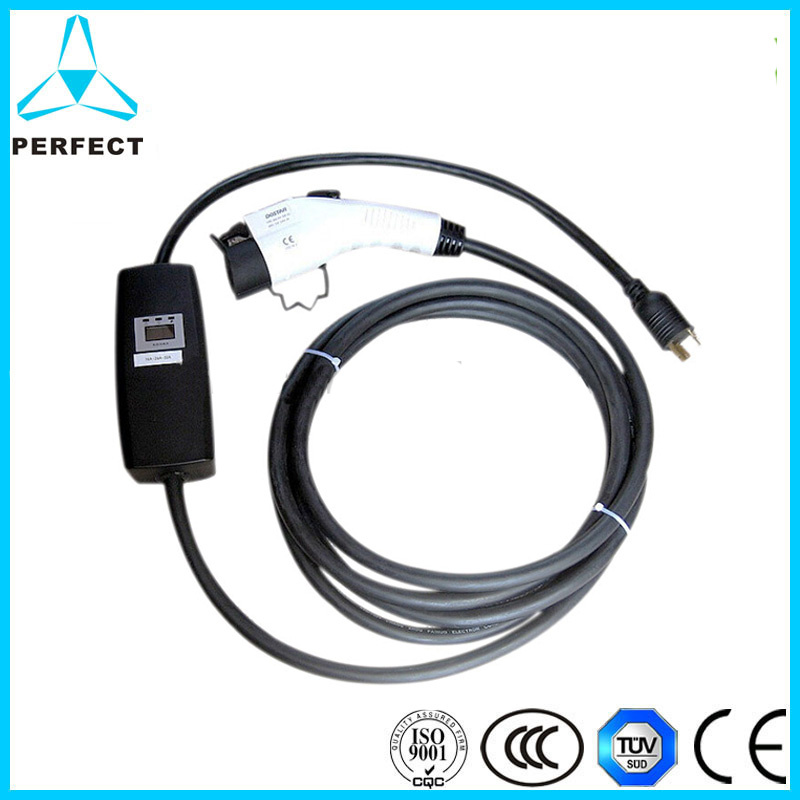

Mode 2 Level 2 16A 32A Portable EV Charger

Prod Model:	PFT-EV1980
Product Name:	Mode 2 Portable Evse Mobile Charging Stations
Rated Current:	16A/32A
Rated Voltage:	120-240V
Grounding:	Standard Grounding
Terminal Temperature Rise:	<50k
Withstand Voltage:	2000V
Insulation Resistance:	>1000mΩ(DC500V)
Contact Impedance:	0.5mΩ Max
Vibration Resistance:	Meet Jdq53.36.1.1-53.36.1.2
Mechanical Llife:	No-Load Plug in/Pull out>10000ti
Application:	Car
Environmental Protection:	General
Connection Mode:	Push-Pull Connection
Shape:	Round
Contact Termination Form:	Pressure Welding
Brand:	Perfect
Type:	Plug with Socket

Product Description

The 240V portable charger lets you choose between 8-30 amps of power, and can charge compatible EVs up 5 times faster than a standard 110V outlet.
   The compact and durable design of the perfect portable charger will withstand nearly any environment while taking up minimal space. Inside and out, the PERFECT portable charger is versatile, reliable, and efficient.

SAE J1772 plug-to-car, NEMA 14-50 plug-to-wall
Level 2 Charging, 240V, 16A, 3.84 kW  /240V ,32A , 7.6KW
Weatherproof (IP 54), 18 foot cord, 5 lbs.

Standards	SAE J1772
Voltage	220V AC
Current	8A/16A/32A AC
Frequency	50Hz/60Hz
Insulation Resistance	>10MΩ
Operating Temperature	-25ºC to +55ºC
Storage Temperature	-40ºC to +80ºC
Operating Humidity	5%~95%RH(non-condensing)
Enclosure In-Cable box	IP 54
Charging connector	IP 54
Dimension	200mm(L)*90mm(W)*40.5mm(H)
Weight	3kg

Other specification is also available according to your requirements. (OEM, ODM )
Pls. contact us freely for more information, I will reply you ASAP!
Hope you will enjoy a comfortable cooperation with us!


Apply to vehicle
Chevrolet Volt, Citroen C-Zero, Fisker Karma, Ford Focus Electric, Ford CMax Energi, Mia, Mia Electric Van,Mitsubishi-I Miev, Mitsubishi Outlander Phev, Nissan NV200 SE Van, Nissan Leaf, Peugeot Ion, Renault Fluence,Renault Kangoo, Smiths Edison Van, Smiths Newton, Tata Indica Vista EV, Toyota Prius, Vauxhall Ampera...


Shipping
1. FedEx/DHL/UPS/TNT for samples

2. By Air or by Sea for batch goods, for FCL; Airport/ Port receiving;

3. Customers specifying freight forwarders or negotiable shipping methods!

4. Delivery Time: 3-7 days for samples; 5-25 days for batch goods.

How to Contact Us?
Send your Inquiry Details in the Below for sample, Click "Send" Now!

Why Choose Our Products?
1) ISO 9001,Gold Supplier certificated
2) Monthly Production Capacity -- 1 Million Pcs
3) All goods examined before delivery by 10 QC staff
4) Prompt Reply Within 12 Hours
