| Prod Model: |
V2-DSS-EV-P SAE J1772 |
| Rated Current: |
16A/32A |
| Rated Voltage: |
120V-240V |
| Grounding: |
Standard Grounding |
| Terminal Temperature Rise: |
<50k |
| Insulation Resisitance: |
>1000mΩ(DC500V) |
| Contact Impedance: |
0.5mΩ Max |
| Insertion And Extration Force: |
45n
|
| Withstand Voltage: |
2000V |
| Mechanical Life: |
No-Load Plug in/Pull out >1000tim |
| Operating Temperature: |
-30°c ~ +50°c |
| Output Type: |
DC |
| Connection: |
Plug In |
| Usage: |
EV |
| Type: |
Plug with Socket |
| Brand: |
Perfect |

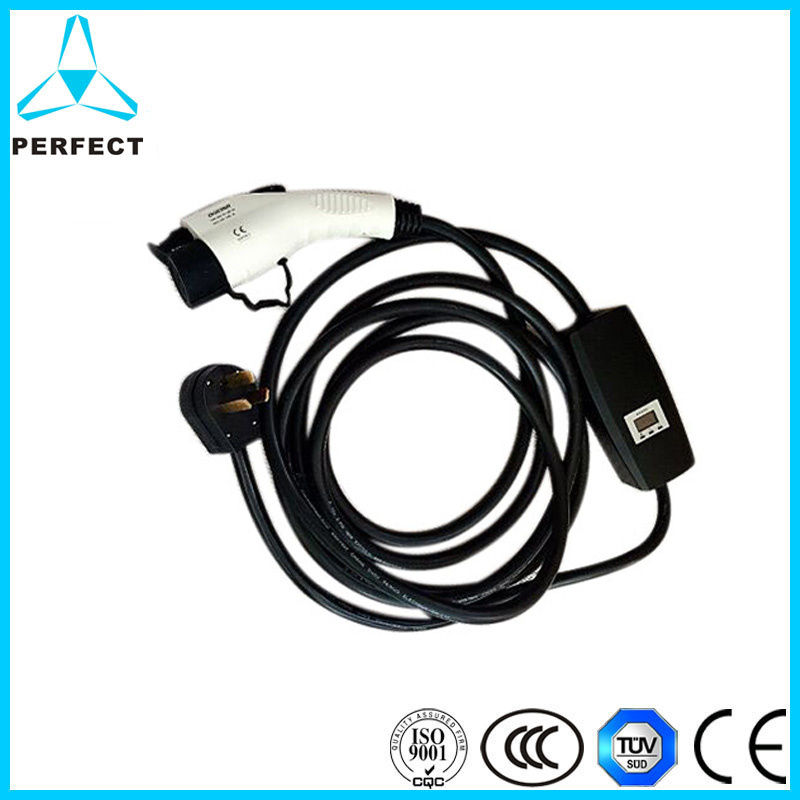

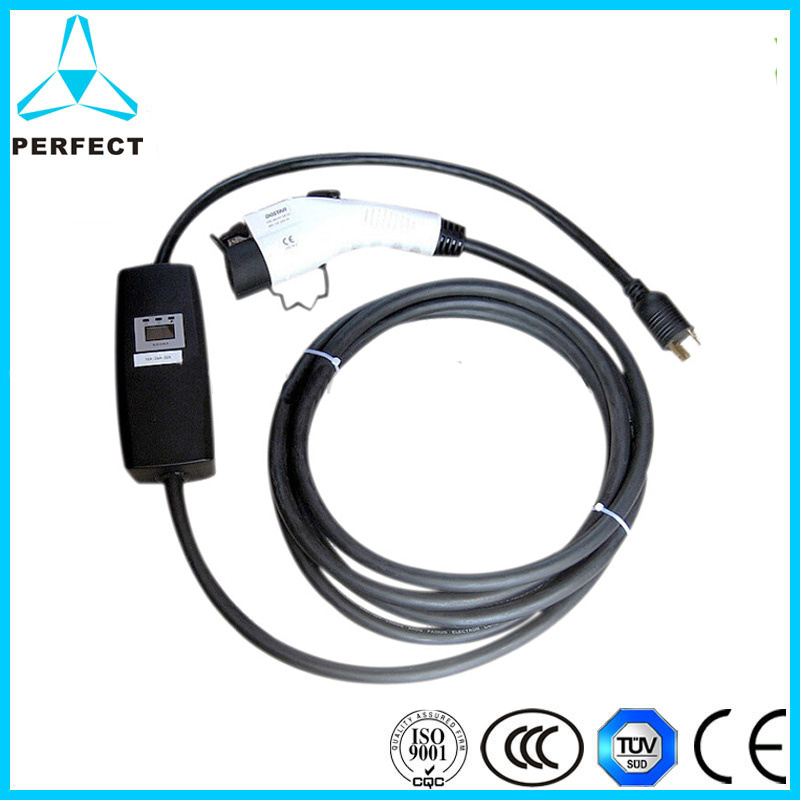

Product Description
The 240V portable charger lets you choose between 8-30 amps of power, and can charge compatible EVs up 5 times faster than a standard 110V outlet. The compact and durable design of the PERFECT portable charger will withstand nearly any environment while taking up minimal space. Inside and out, the PERFECT portable charger is versatile, reliable, and efficient. - SAE J1772 plug-to-car, NEMA 6-20 plug-to-wall
- Level 2 Charging, 240V, 16A, 3.84 kW /240V ,32A , 7.6KW
- Weatherproof (IP 54), 18 foot cord, 5 lbs.
| Standards | SAE J1772 |
| Voltage | 220V AC |
| Current | 8A/16A/32A AC |
| Frequency | 50Hz/60Hz |
| Insulation Resistance | >10MΩ |
| Operating Temperature | -25ºC to +55ºC |
| Storage Temperature | -40ºC to +80ºC |
| Operating Humidity | 5%~95%RH(non-condensing) |
| Enclosure In-Cable box | IP 54 |
| Charging connector | IP 54 |
| Dimension | 200mm(L)*90mm(W)*40.5mm(H) |
| Weight | 3kg |
Other specification is also available according to your requirements. (OEM, ODM )
Pls. contact us freely for more information, I will reply you ASAP!
Hope you will enjoy a comfortable cooperation with us!

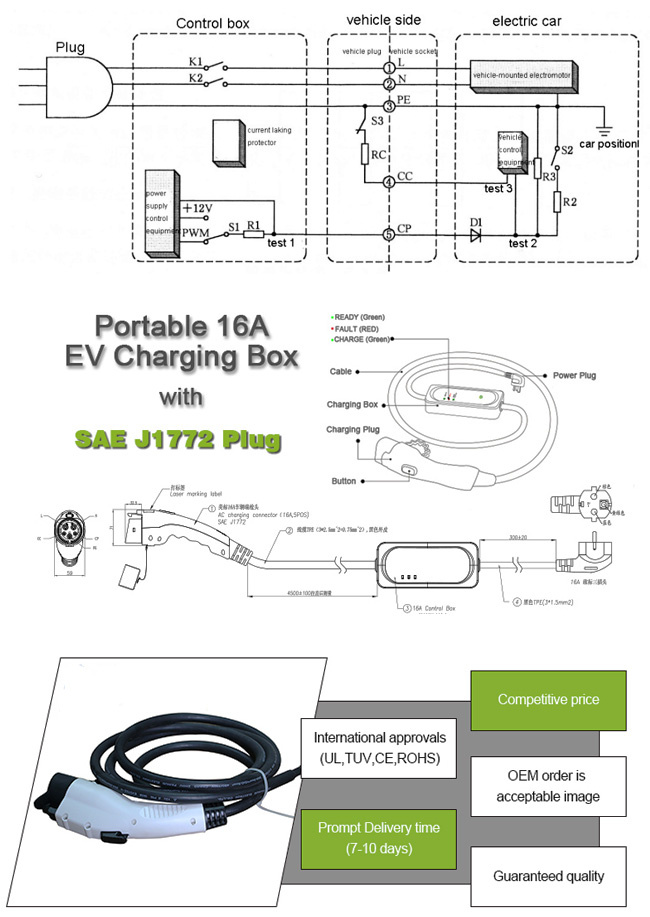

How to start chargeAttentions before use
check if there are the following abnormal conditions : the charging device is damaged ,rust or
the surface of charging port,cable,control box, wire or the plug is damaged
A.Take out the charging cable and put the plug into the socket steadily
B.Check the maximum current of the power socket . Change the output current according to the
current power. Specific operation as follows:
In the last minute of charging, the green light is often bright. Hold the control box, and make the
indicating lights oppose yourself, then continue shaking fast it more than 5 times to make a
current switch.(you can make a current switch in each charging)
C.Please pull off the protect cover and insert the vehicle terminal plug into the vehicle terminal
charger completely.
D.When the charging device automatically run, the status indicator (green lights) will flash.the
red light is on and the screen shows it is being charged. The charge current value is shown on
the screen.
