Wuxi Huacheng Cable Co., Ltd. >> IEC60245 Heat Resistant Silicone Rubber Wire

IEC60245 Heat Resistant Silicone Rubber Wire

IEC60245 Heat Resistant Silicone Rubber Wire
Price: Negotiablemtrs
Trade Terms: Sea, Air Shipment
Min Order: 3000mtrs
Pay Type: L/C,T/T,D/P
Prod Model: 245IEC03(YG)
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type: Insulated
Conductor Type: Stranded
Application: Wire Harness
Conductor Material: Copper
Insulation Material: Silicone Rubber
Certification: RoHS
Sheath Material: Fiber Glass
Brand: Hoochan

Product Description

Competitive price, Fast Delivery
Good quality and after sales services
China's CCC certified, meet with RoHS
Strong supply capability
Product features
Rated Voltage: 300/500V
Rated temperature: -60+180C DEGREE

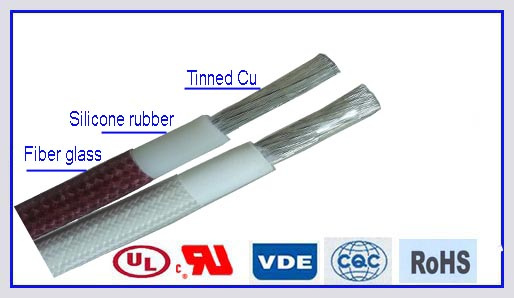

Conductor: Tin-coated, nickel-coated or silver-coated copper wire
Insulator: Silicone rubber, fiber glass braid
Coating: Silicone resin
Applicable for high temperature environment such as electron, electrical household appliance internal leading wire, lighting etc. Wire harness, AUTO use.
sectionconductorinsulationbraid thickwire ODconductor resistance
structurediameternominal thickmin. thickdiameternominalallowance20 C degree
mm²No./mmmmmmmmmmmmmmmm  Ω/KM
0.528/0.15 16/0.20 20/0.180.950.600.442.150.202.55±0.1540.1
0.7524/0.20 30/0.181.150.600.442.350.202.75±0.1526.7
1.032/0.201.340.600.442.550.202.95+0.2020.0
-0.15
1.530/0.251.600.700.533.000.203.40+0.2013.7
-0.15
2.549/0.252.000.800.623.600.254.10+0.308.21
-0.15
4.056/0.302.700.800.624.300.254.80+0.305.09
-0.15
6.084/0.303.300.800.624.900.255.40+0.303.39
-0.15
1084/0.404.601.000.806.600.257.10+0.301.95
-0.15
16126/0.405.801.000.807.800.258.30+0.301.24
-0.15

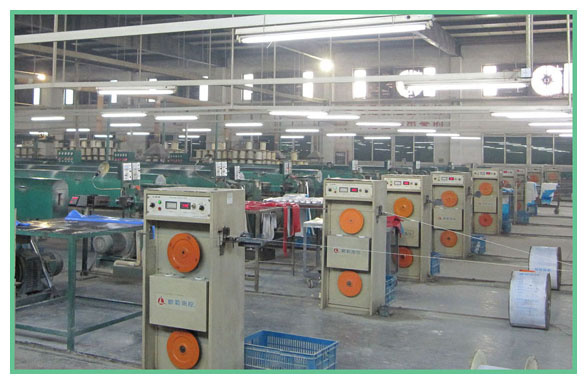

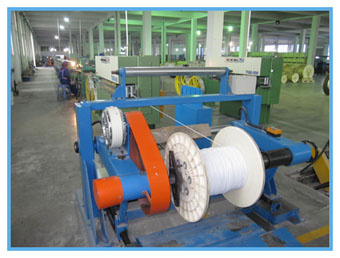

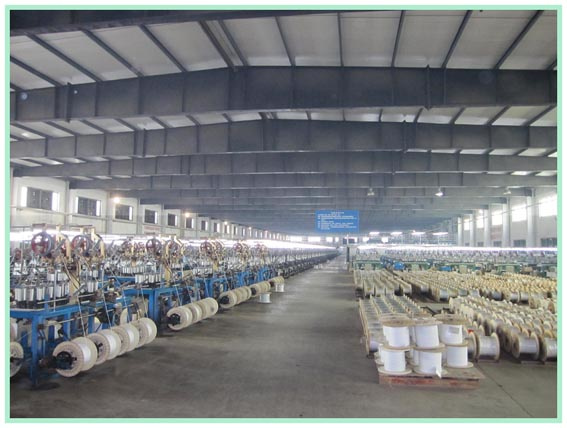

Wuxi Huacheng Cable Co., Ltd. is specialized in production of heat resistant silicone rubber wire & cable, also engaging in its R & D field, total building covers about 20000 square meters, with kinds of advanced Rubber extruding machines, Coating equipment lines, Braiding machines 1500 sets etc. After tens of year constant development, our annual output is more than 250, 000 KMS and became the famous leader and production base in domestic market.

Most of the products have passed USA UL/cUL, Germany VDE, China CCC, Japan F-MARK and ROHS Certification, completely meet with EU environment protect policy requirement, acquired ISO9001: 2000 International Quality Management & ISO14001 Environment Management Certification. All the staff exalt the tenet "Pursue truth, Honor fact, Keep Innovation", insisting on the quality policy of "Customer's wishes oriented, adopting PDCA circulation, continuously improve product and service, fully satisfying customers", based on above, our products sell well everywhere, applying to famous corporations, and even sell far to Occident, Mid-east, Southeast Asia countries and area, acquire good reputation and approval of customers.

More than hundreds of series of products are optional for customer's choice, mainly used for new energy, wind power motor, metallurgy, power, railway, home electrical appliance, lighting relative fields.
