| Prod Model: |
CAM1-800H |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| IEC Standard: |
IEC60947-2 |
| Poles: |
3p |
| Install: |
Fixed |
| Certificates: |
CE CB |
| Range: |
Low Voltage |
| Breaking Capacity: |
Low Voltage Circuit Breakers |
| Speed: |
Normal Type Circuit Breaker |
| Arc-extinguishing Medium: |
Air |
| Installation: |
Fixed |
| Structure: |
MCCB |
| Certification: |
CB |
| Operation: |
Manual Type, Electrica Type |
| Poles Number: |
3p, 4p |
Product Description

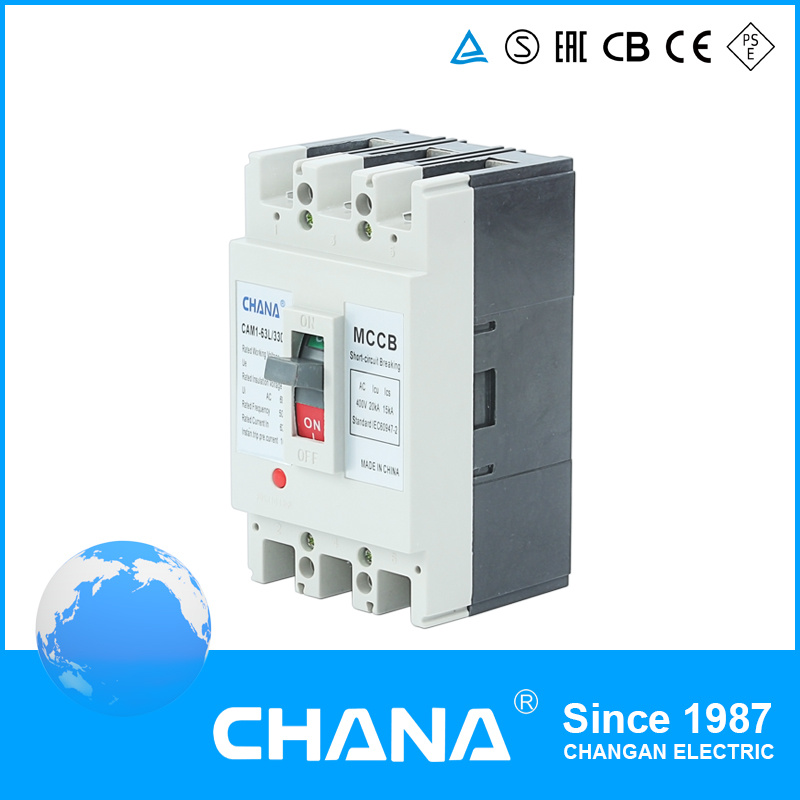

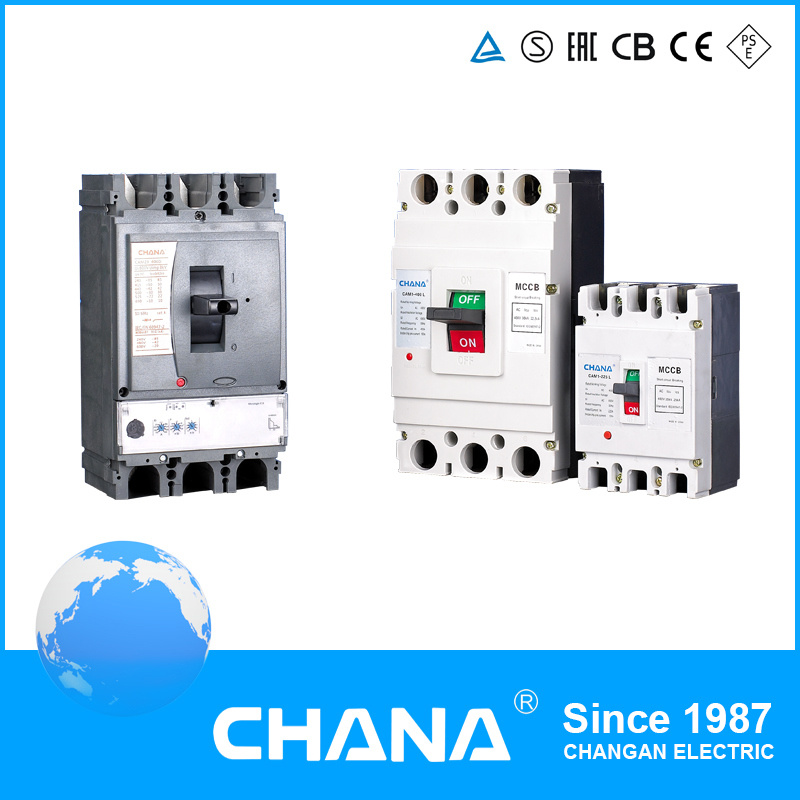

CAM1 Series MCCB
Model (3P; 4P)
CAM1-250L, CAM1-250M: 125, 160, 180, 200, 225, 250A
CAM1-400M, CAM1-400H: 225, 250, 315, 350, 400A
CAM1-630M, CAM1-630H: 400, 500, 630A
CAM1-800H: 630, 700, 800A
APPLICATION of the mccb
CAM1 series moulded case circuit breaker ( named as MCCB in the following) is a new type breaker which is applied with rated insulating voltage 800V (500V for CAM1-63), rated working voltage 690V for CAM1-63) and used for infrequent exchange and startup in AC (60)Hz condition. The MCCB is of protecting function in overloading, short-circuit, and under voltage situation to protect circuit system and power device from damage.
The MCCB can be devided into L; M; H types according to their rated limit short-circuit breaking capacity.
The MCCB is advantageous for its compact body, high breaking capacity ( some even on flying arc), short arc-casting and superior aseismatic function.
The MCCB has function of insulation.
The product complies with IEC60947-2, GB14048.2
About US:
Changan Group Co., Ltd specializing in the R&D, manufacture and sale of low voltage electric applicants, such as MCB, MCCB, RCCB, Indicators, AC contactors and other related products. Our factory, with the aim of high quality and low price, offers superior OEM services, and has accumulated abundant experience in manufacturing low voltage.
1. We already get the certificate of ISO9001, CE, SGS.
2. We have 27 years of manufacture and 17 years exporting experience.
3. We have completely sales service system, ensure every detail is going smooth.
4. We have new designed products each year by our R&D Department.
5. Perfect testing system ensure each product is qualified.
6. We have a good reputation in Russia, Turkey, Bengal, Thailand, south American, Mid-east market and so on.
How to Order?
1. Please let us know what kind of model, color, poles and rated current etc.
2. Proforma invoice (PI) will be sent to you.
3. Please check and confirm the PI.
4. Once we confirmed the order, please pay it soon.
5. After full payment, all goods will be sent to you in 3-5 days as usual.
6. OEM/ODM is welcomed. Free OEM for more than 5000 sets orders.
Payment:
1. We usually use T/T
2.30% deposit and 70% before shipping
3. L/C also acceptable
Warranty:
1. We provide 1.5 year warranty.
2. If the product is defective, please notify us within 3 days of delivery.
3. All products must be returned on their original condition, in order to qualify for a refund or exchange of goods
Welcome to inquire, negotiate, we will be happy to provide you with the best quality products and personalized service!
| Items | Ampers | Poles | Voltage | Rated Current | Certificate |
| CAM1-63 | 63A | 3/4P | 400/415V | 10A-63A | IEC60947-2 |
| CAM1-100 | 100A | 3/4P | 400/415V | 16A-100A | IEC60947-2 |
| CAM1-225/250 | 225/250A | 3/4P | 400/415V | 125A-250A | IEC60947-2 |
| CAM1-400 | 400A | 3/4P | 400/415V | 225A-400A | IEC60947-2 |
| CAM1-630 | 630A | 3/4P | 400/415V | 400A-630A | IEC60947-2 |
| CAM1-800 | 800A | 3/4P | 400/415V | 630A-800A | IEC60947-2 |
Contact us:
Established in 1987, CHANGAN GROUP Co., Ltd. Has been acknowledged as one of the most respected nation-wide manufacturers and exporters of low-voltage electrical apparatus in P. R. China.
Comprising more than 62 factories with over 2500 employees and the whole corporation occupies 82000m2 ground during past 27 years.
We manufacture and export varieties of low voltage electrical appliance including all kinds of CIRCUIT BREAKER, CONTACTOR, RELAY, SWITCH, SOLAR INVERTER etc.
All of our production procedures strictly follow ISO9001, ISO14001 and OHSAS18001, most of our products are certified such as SEMKO, TUV, CB and CE which can prove our guarantee quality and our products also have been chosen as "Chinese FAMOUS BRAND PRODUCT".
We not only make efforts in developing our own products with "CHANA"brand but also provide OEM services. Hope to establish good business relationships with your esteemed company in near future.
