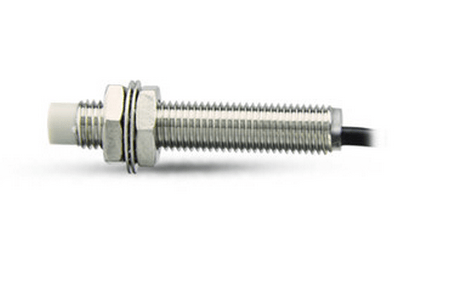

Inductive Long Cylinder Proximity Switch (LJA8M Series)

Name: Inductive Long Cylinder Proximity Switch (LJA8M Series)
Brand: all-electronics-online.com
SKU: 694484455
Availability: InStock
Rating: 4.7 (69 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	LJA8
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Diameter And Length:	8mm, 40mm
Working Power:	DC6-36V, AC90-250V
Working Temperature:	-20 to +70 Degrees
Measuring Material:	Metal ( Iron, Steel and Copper etc.)
Output:	Switching Sensor
Usage:	Position Sensor
Theory:	Magnetic Sensor
Material:	Brass-Nickel Plated&Heat-Resisting ABS

Product Description

Description

Proximity switch is one of position switches. When it operates, no need to make a mechanical
contact. It is also called no contact switch. As soon as the detected object approaches to the
surface of the sensor distance range, It begins to act with no contact, no pressure form, then
drive AC or DC electrical or computer equipment to provide control instructions.
C. Lin brand proximity switches covers: Inductive proximity switches, Capacitive proximity switches,
Hall sensor, photoelectrical sensors. They are widely used in machinery, texitle, metallurgy, tobacco,
railway, war industry and so on.

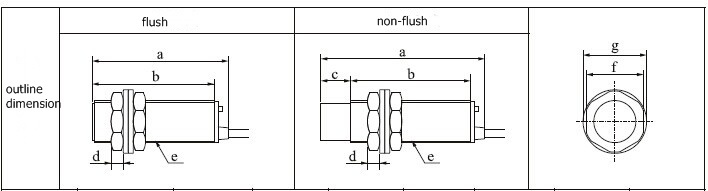

Outline Dimension

Switch Category			Inductive Proximity Switch / (LJA8) Inductive Proximity Switches / Proximity Sensor Position Switch
Outward Appearance Code			LJA8(diameter: 8mm)
Mounting Mode			Flush	Non-flush
DC6-36VDC	Three-Wire NPN Output	NO	LJA8-1.5N1	LJA8M-2N1
		NC	LJA8-1.5N2	LJA8M-2N2
		NO+NC
	Three-Wire PNP Output	NO	LJA8-1.5P1	LJA8M-2P1
		NC	LJA8-1.5P2	LJA8M-2P2
		NO+NC
	Two-Wire DC Output	NO	LJA8-1.5D1	LJA8M-2D1
		NC	LJA8-10D2	LJA8M-2D2
AC90-250V	Two-Wire AC Output	NO	LJA8-10A1	LJA8M-2A1
		NC	LJA8-10A2	LJA8M-2A2
Detection Distance			1.5mm± 15%	2mm± 15%
Length			40mm
Supply Voltage		DC	NPN, PNP: DC6V-36V; DC12V, DC24V, DC36V
		AC	AC90-250V 50/60HZ
Output Voltage Drop DC/AC			AC less than 7V; DC Two-wire output less than 5V; DC Three-wire output less than 1.5V
Standard Detected Object			Iron(A3)881mm	Iron(A3)12121mm
DC/AC Response Frequency			DC: 2.0KHz; AC25Hz	DC: 0.8KHz; AC25Hz
Working Temperature			Temperature: from -25Centigrade to - +75 Centigrade(no ice), Humidity: 35-95%RH
Insulation Resistance			above 50MΩ (DC500V)
Protection Grade			IP65-IP67
