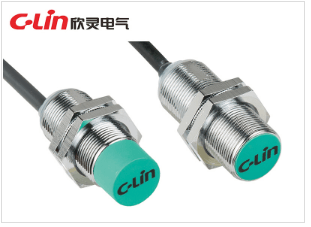

Inductive Proximity Switch(CHJ8 Series)

Name: Inductive Proximity Switch(CHJ8 Series)
Brand: all-electronics-online.com
SKU: 733332392
Availability: InStock
Rating: 4.8 (112 reviews)

Price:	Negotiable/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	CHJ8 Series
Diameter:	8mm
Working Power:	DC10-30V, AC100-240V
Working Temperature:	-25 to +70 Degrees
Measuring Material:	Chrome Copper Alloy
Output:	Switching Sensor
Usage:	Position Sensor
Theory:	Magnetic Sensor
Standard:	Standard

Product Description

Feature

Adopt specialized chip inside; stable working performance, strong anti-interference capability

Surface mounted technology; good consistency, high detection accuracy, small error

Imported components, low residual voltage, small consumption current

Polarity protection, surge absorbability; load short circuit protection etc.

Ambient temperature: -25ºC~+70ºC; low temperature-drift

Chrome copper alloy housing, high mechanical strength

Short housing size, can be used to install in a small place

Protection class: IP67; waterproof product

Ordering Information

output form			flush type	Non-submerged type
DC three line DC-30V	NPN type	normal open	CHJ8-1.5N1	CHJ8M-2N1
	NPN type	normal close	CHJ8-1.5N2	CHJ8M-2N2
	PNP type	normal open	CHJ8-1.5P1	CHJ8M-2P1
	PNP type	normal close	CHJ8-1.5P2	CHJ8M-2P2
DC second line DC10-30V		normal open	CHJ8-1.5D1	CHJ8M-2D1
DC second line DC10-30V		normal close	CHJ8-1.5D2	CHJ8M-2D2
DC line AC100-240V		normal open	CHJ8-1.5A1	CHJ8M-2A1
DC line AC100-240V		normal close	CHJ8-1.5A2	CHJ8M-2A2
Detection distance			1.5mm±10%	2mm±10%

Xinling Electrical Co., Ltd. China was established in 1990. Now we have 10 sub-branch companies, each company is responsible for manufacturing different kinds of electrical products, We have more than 100 cooperation units, and 100 direct distributors, 1000, 000 square meter factory area and 1600 stuffs.

Our company mainly produces mini relay, time relay, solid state relay, electric power relay, temperature controller, kilowatt-hour meter, circuit breaker, AC contactor and some other electrical component which are the first choice of electric net reconstruction. With perfect management system and technical advancement, it strengthens the management of enterprise and promotes product quality. Our company takes prospering national industry as its own responsibilities, works hard developing economy of China to promote enterprise level.

The enterprise has gained ISO9001 and RVA Quality System Attestation(Netherlands), and its products have gained CE attestation (European Community), and UL Attestation and CCC Safety Attestation in China successively, and have been insured by PICC, besides, their quality has been ensured by quality "three guarantee". As a result, its products are sold well in more than 30 provinces and cities of China and are exported to Europe, America, Middle East, South-Eastern Asia, Africa and so on 20 countries and districts. Successively, the enterprise has been given the titles of Star Enterprise of China, Financial AAA Grade Enterprise, Gold Client of Agriculture Bank of China, and Credit Enterprise of Product Quality.

Xinling is ready for creating a magnificent tomorrow together with you!
