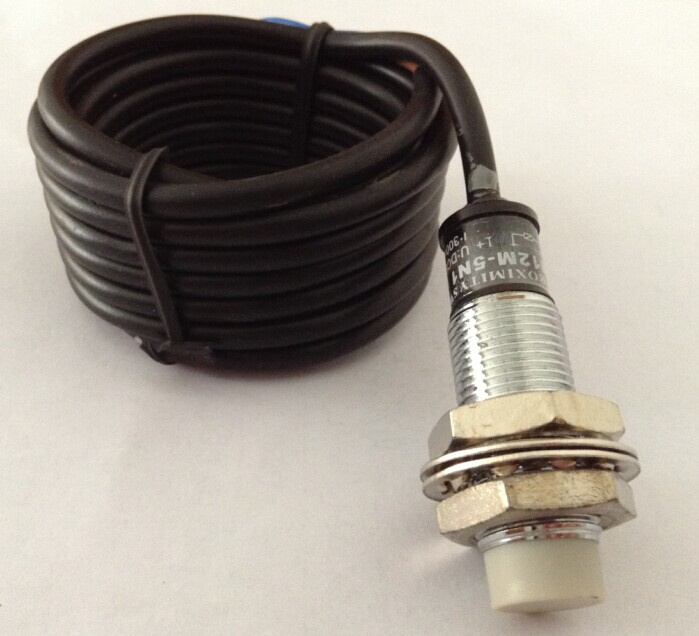

Inductive Short Cylinder Proximity Switch (LJM12 Series)

Name: Inductive Short Cylinder Proximity Switch (LJM12 Series)
Brand: all-electronics-online.com
SKU: 694474885
Availability: InStock
Rating: 4.9 (29 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	LJM12
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Diameter And Length:	12mm, 45mm
Working Power:	DC6-36V, AC90-250V
Working Temperature:	-20 to +70 Degrees
Measuring Material:	Metal ( Iron, Steel and Copper etc.)
Output:	Switching Sensor
Usage:	Position Sensor
Theory:	Magnetic Sensor
Material:	Brass-Nickel Plated&Heat-Resisting ABS

Product Description

Description

Proximity switch is one of position switches. When it operates, no need to make a mechanical
contact. It is also called no contact switch. As soon as the detected object approaches to the
surface of the sensor distance range, It begins to act with no contact, no pressure form, then
drive AC or DC electrical or computer equipment to provide control instructions.
C. Lin brand proximity switches covers: Inductive proximity switches, Capacitive proximity switches,
Hall sensor, photoelectrical sensors. They are widely used in machinery, texitle, metallurgy, tobacco,
railway, war industry and so on.

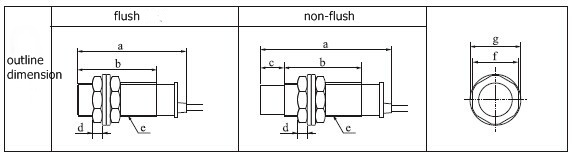

Outline Dimension

Switch Category			Short Cylinder Type Inductive Proximity Switch
Outward Appearance Code			LJM12 (diameter: 12mm)
Mounting Mode			Flush	Non-flush
DC6-36VDC	Three-Wire NPN Output	NO	LJM12-2N1	LJM12M-5N1
		NC	LJM12-2N2	LJM12M-5N2
		NO+NC	LJM12-2N4	LJM12M-5N4
	Three-Wire PNP Output	NO	LJM12-2P1	LJM12M-5P1
		NC	LJM12-2P2	LJM12M-5P2
		NO+NC	LJM12-2P4	LJM12M-5P4
	Two-Wire DC Output	NO	LJM12-2D1	LJM12M-5A1
		NC	LJM12-2D2	LJM12M-5A2
AC90-250V	Two-Wire AC Output	NO	LJM12-2A1	LJM12M-5A1
		NC	LJM12-2A2	LJM12M-5A2
Detection Distance			2mm± 15%	5mm± 15%
Length			45mm
Supply Voltage		DC	NPN, PNP: DC6V-36V; DC12V, DC24V, DC36V
		AC	AC90-250V 50/60HZ
Output Voltage Drop DC/AC			AC less than 7V; DC Two-wire output less than 5V; DC Three-wire output less than 1.5V
Comsumption Current			NPN. PNP. DC Two-wire output: 8mA/12V, 15mA/24V; AC: AC Two-wire output: below1.7mA
Standard Detected Object			Iron(A3) 12121mm	Iron(A3) 15151mm
DC/AC Response Frequency			DC: 1.5KHz; AC25Hz	DC: 0.4KHz; AC25Hz
Working Temperature			Temperature: -25Centigrade to - +75Centigrade(no ice), Humidity: 35-95%RH
Insulation Resistance			above 50MΩ (DC500V)
