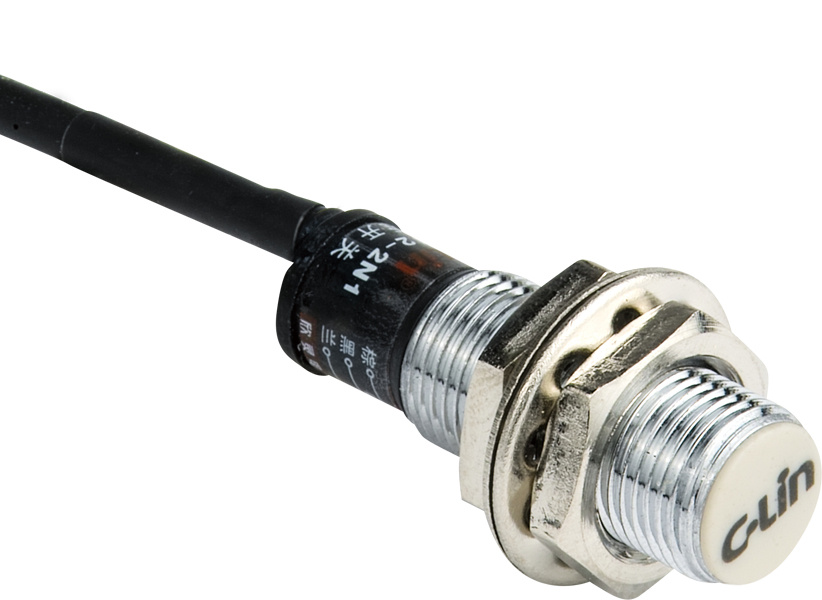

Inductive Short Cylinder Proximity Switches (LJM8)

Name: Inductive Short Cylinder Proximity Switches (LJM8)
Brand: all-electronics-online.com
SKU: 694484565
Availability: InStock
Rating: 4.7 (54 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	LJM8
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Diameter And Length:	8mm, 30mm
Working Power:	DC6-36V, AC90-250V
Working Temperature:	-20 to +70 Degrees
Measuring Material:	Metal ( Iron, Steel and Copper etc.)
Output:	Switching Sensor
Usage:	Position Sensor
Theory:	Magnetic Sensor
Material:	Brass-Nickel Plated&Heat-Resisting ABS

Product Description

Description

Proximity switch is one of position switches. When it operates, no need to make a mechanical contact. It is also called no-contact switch. As soon as the detected object approaches to the surface of the sensor distance range, It begins to act with no-contact, no-pressure form, then drive AC or DC electrical or computer equipment to provide control instructions.

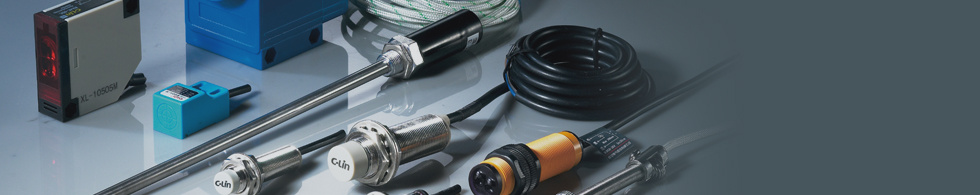

C. Lin brand proximity switches covers: Inductive proximity switches, Capacitive proximity switches, Hall sensor, photoelectrical sensors. They are widely used in machinery, texitle, metallurgy, tobacco, railway, war industry and so on.

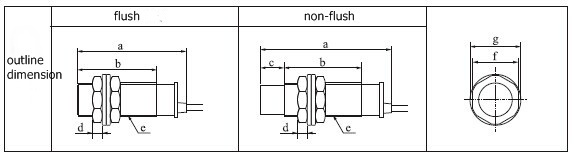

Outline Dimension

Switch Category			Inductive Proximity Switches Short Cylinder Type
Outward Appearance Code			LJM8(diameter: 8mm)
Mounting Mode			Flush	Non-flush
DC6-36VDC	Three-Wire NPN Output	NO	LJM8-1.5N1	LJM8M-2N1
		NC	LJM8-1.5N2	LJM8M-2N2
		NO+NC
	Three-Wire PNP Output	NO	LJM8-1.5P1	LJM8M-2P1
		NC	LJM8-1.5P2	LJM8M-2P2
		NO+NC
	Two-Wire DC Output	NO	LJM8-1.5D1	LJM8M-2D1
		NC	LJM8-1.5D2	LJM8M-2D2
AC90-250V	Two-Wire AC Output	NO
		NC
Detection Distance			1.5mm± 15%	2mm± 15%
Length			30mm
Supply Voltage		DC	NPN, PNP: DC6V-36V; DC12V, DC24V, DC36V
		AC	AC90-250V 50/60HZ
Output Voltage Drop DC/AC			AC less than 7V; DC Two-wire output less than 5V; DC Three-wire output less than 1.5V
Comsumption Current			NPN PNP DC Two-wire output: 8mA/12V, 15mA/24V; AC: AC Two-wire output: below1.7mA
Standard Detected Object			Iron(A3)881mm	Iron(A3)12121mm
DC/AC Response Frequency			DC: 2.0KHz; AC25Hz	DC: 0.8KHz; AC25Hz
Working Temperature			Temperature: -25centigrade - +75 centigrade (no ice), Humidity: 35-95%RH
Insulation Resistance			above 50MΩ (DC500V)
Protection Grade			IP65-IP67

Xinling Electrical Co., Ltd. China was established in 1990. Now we have 10 sub-branch companies, each company is responsible for manufacturing different kinds of electrical products, We have more than 100 cooperation units, and 100 direct distributors, 1000, 000 square meter factory area and 1600 stuffs.

Our company mainly produces mini relay, time relay, solid state relay, electric power relay, temperature controller, kilowatt-hour meter, circuit breaker, AC contactor and some other electrical component which are the first choice of electric net reconstruction. With perfect management system and technical advancement, it strengthens the management of enterprise and promotes product quality. Our company takes prospering national industry as its own responsibilities, works hard developing economy of China to promote enterprise level.

The enterprise has gained ISO9001 and RVA Quality System Attestation(Netherlands), and its products have gained CE attestation (European Community), and UL Attestation and CCC Safety Attestation in China successively, and have been insured by PICC, besides, their quality has been ensured by quality "three guarantee". As a result, its products are sold well in more than 30 provinces and cities of China and are exported to Europe, America, Middle East, South-Eastern Asia, Africa and so on 20 countries and districts. Successively, the enterprise has been given the titles of Star Enterprise of China, Financial AAA Grade Enterprise, Gold Client of Agriculture Bank of China, and Credit Enterprise of Product Quality.

Xinling is ready for creating a magnificent tomorrow together with you!
