| Prod Model: |
Industrial adjustable capillary thermostat |
| Temperature: |
0~320ºC |
| Related Voltage/Current: |
125/250VAC 16A |
| Insulation Resistance: |
≥100mΩ |
| On-off Temperature Difference: |
2ºC~12ºC |
| Electric Strength: |
2000VAC/1min/0.5mA |
| Length Of Capillary Tube: |
300~2000mm |
| Adjusting Shaft Length: |
Custom-Made(12-28mm) |
| Ambient Temperature: |
125ºC |
Product Description

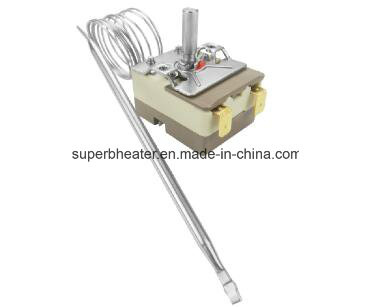

Industrial accurate adjustable capillary thermostat
Parameter:
| No. | Main Parameters |
| 1 | Model No. | WYE series |
| 2 | Temperature | 0ºC~320ºC |
| 3 | Capillary length | 300mm~2000mm(stainless steel capillary tube and sensing bulb) |
| 4 | Rlated voltage/current/frequency | 125/250VAC 16A |
| 5 | Electric strength | 2000VAC/1 min/0.5mA |
| 6 | Insulation resistance | ≥100MΩ |
| 7 | Contact resistance | ≤50mΩ |
| 8 | Lifetime test | 100,000 times |
| 9 | Function | Temperature control,Adjustable temperature |
| 10 | Application | Electric water heater, electric heater, electric boiler, washing machine, electric oven, deep fryer,air fryer |

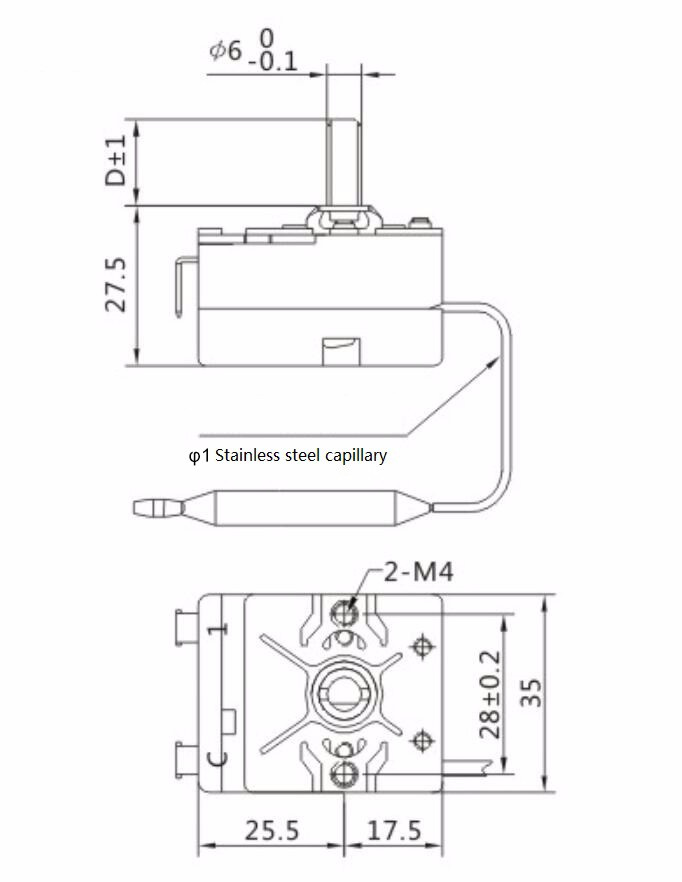

Drawing:
FAQ:
1. Do you provide free samples? How long will the samples be ready?
Yes. Samples are FREE. You just need to pay the delivery cost.
Usually, we need 7 days to prepare samples.
2. Can I have your pirce list?
Sorry, price list is not available. All of our products are customized. We need to know the cable
size, length and other specifications to count the prices.
3. What is your shipping method?
We will help you to choose the best shipping method according to your orders. If you have pointed forwarder in China, we will help to arrange the shippment ASAP.
4. What is your payment term?
T/T. 30% deposit, 70% before delivery
Why choose us:
1.Many products have been passed CQC, TUV, UL, TUV, VDE certificate.
2.The thermostat annual output is over 15,000,000pcs.
3.Midea and Walmark stable supplier.
4. We not only have our own factories, R&D team and foreign trade team , has rich experience in
foreign trade, but also have their own patents.
5.All products must be strictly inspected according to ISO9001 standard before they leave the factory.
6.There are 8 ISO management production lines.
7.The important processes have been implemented using automated equipment production, the
future will be to implement all automated production.
8. The high tech product company.
9.We can accept OEM or ODM order

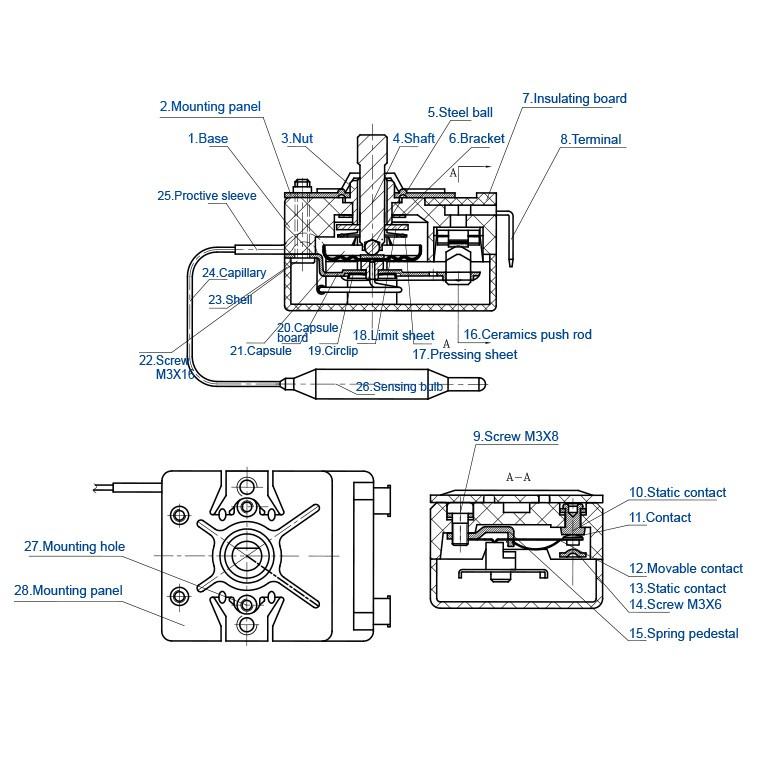

Assumption diagram:
Please kindly advise your specifications or drawing with following information when you inquiry:
1.Capillary (Materials, diameter, length)
2.The shaft height
3.Working temperature
4.Type of terminal
5.Drawing of special type configuration
6.Special testing requirements before shipment
