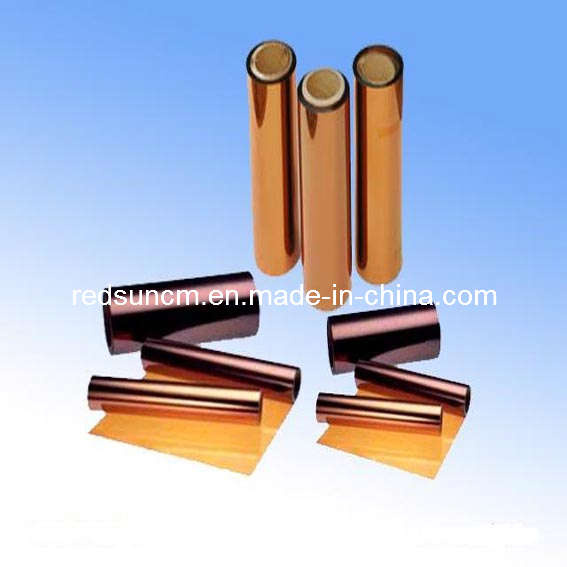

Insulation Material Polyimide Film with Best Quality

Name: Insulation Material Polyimide Film with Best Quality
Brand: all-electronics-online.com
SKU: 670419202
Availability: InStock
Rating: 4.6 (131 reviews)

Price:	US $ 20-28/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	50/Piece
Pay Type:	T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Trade Mark:	RDS
Type:	Insulation Film
Thermal Rating:	H 180
Maximum Voltage:	<10KV
Material:	Polyimide
Classification:	Rolls, Tapes or Stripes
Brand:	RDS

Product Description

Polyimide film is a special plastic film, has excellent mechanical properties, dielectric properties, no melt at -195 ° C - 280 ° C under the conditions of long-term use. Because of its unique high performance main as the base dielectrics for Flexible Printed Circuits (FPC), Tape Automated Bonding (TAB), Pressure Sensitive Tape (PST), Insulation for Electric Motor (Insulation) etc., it is widely used in sophisticated product of military affairs, satellite navigation, digital product, H grade and F grade electric motors, computer and mobile phone etc.

Specifications:
Thickness: 12.5μ M - 225μ M
Width: 6mm- 1000mm
Executive Standard: JB/T 2726 _ 1996
Appearance of flat and smooth, non-crease tear, particulate air bubble, pinhole. The indicators are better than any of the following: JB / T 2726 - 1996 in the provisions.

Nominal thickness	12.5μ m	25μ m	30μ m	40μ m	50μ m	75μ m	100μ m
Tolerance	+1 -1	+2 -1	+2 -1	+2 -1	+2 -1	+5 -5	+10 -7

Physical performance table:

Properties	Test Items	Units	Thickness				Test Condition	Test Method
Mechanical	Thickness	μ m	12.5	25	50	75	20° C	ASTM D1505
	Tensile Strength	Mpa	150	180	180	160	20° C	JB/T 2726- 1996
	Elongation	%	60	70	70	90	20° C	JB/T 2726- 1996
Electrical	Dielectric Breakdown Voltage	MV/m	240	260	210	185	60Hz, 20° C	JB/T 2726- 1996
	Dielectric Constant	-	3.2	3.2	3.2	3.2	1MHz, 20° C	ASTM D150
	Volume Resistivity	Ω . cm	> 10 10	> 10 10	> 10 10	> 10 10	500V, 20° C	ASTM D257
	Surface Resistance	Ω	> 10 13	> 10 13	> 10 13	> 10 13	500V, 20° C	ASTM D257
Thermal	Coefficient of Thermal Expansion	ppm/° C	< 27	< 30	< 35	< 35	100~200° C	ASTM D5213-04
Thermal	Heat Shrinkage	%	< 0.03	< 0.03	< 0.05	< 0.05	200° C, 2hrs	JB/T 2726- 1996
Physical	Density	g/cm 3	1.420± 20				20° C	ASTM D1505

Beijing Red Sun Composite Material Co., Ltd. is one professional producer for SMC and BMC molding products, insulating rigid laminates, rods and tubes, flexible composites, high thermal resistant products, gasket, fiber glass products, engineering plastics, etc. We also provide the further fabrication for these products and kinds of composite materials. You can get most of what you want from us.

Advanced production line, excellent technology and experienced work team assure we can provide you the products comply with the international standards and different requirements. We assure that you will get the high efficiency feedback and best service from us for those products that we deal with and certainly with the competitive price.

We have won customers from USA, Canada, Germany, Japan, and so on to be our partners, and more and more customers are joining us.

Red Sun Composite always takes the "Mutual Benefit", "Quality First" and "Better Ethics" as principle. Red Sun Composite will be your partner to success.
