Mica Splitting Insulating Material

Name: Mica Splitting Insulating Material
Brand: all-electronics-online.com
SKU: 670416582
Availability: InStock
Rating: 4.6 (125 reviews)

Price:	Negotiable/Ton
Trade Terms:	others
Min Order:	1/Ton
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Thickness (mm):	Customized
Type:	Solid
Chemistry:	Organic Insulation
Material:	Mica
Brand:	Redsun

Product Description

1. Properties and Usages

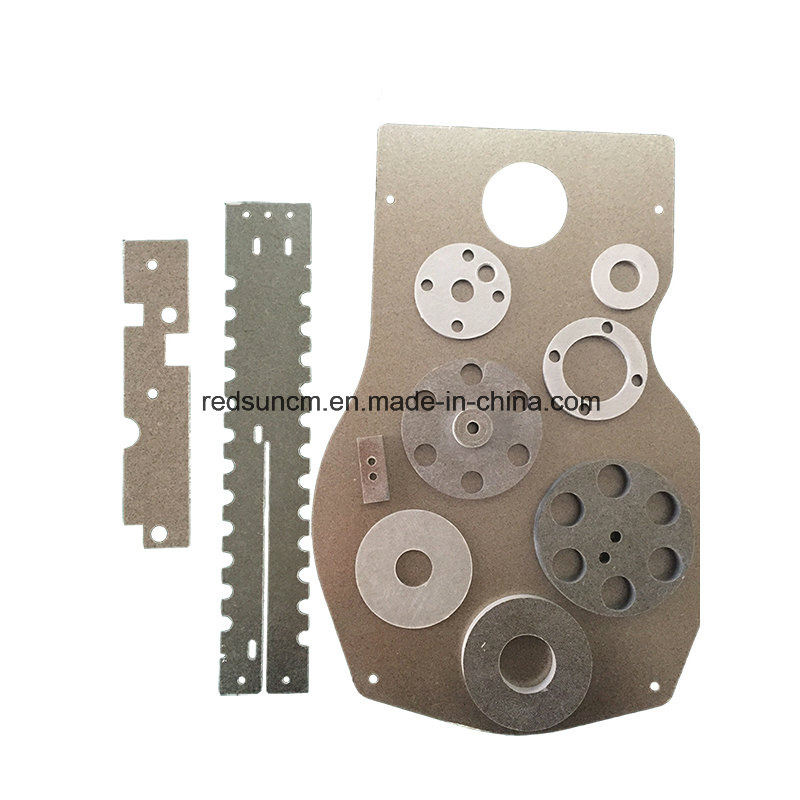

Mica splitting is a mica product made primarily by separating and splitting second - best thick plate mica. It has certain thickness and can be made into any shape. It is suitably used to make thin muscovite plate for sticking mica insulating products.
2. Specifications
Mica splitting is classified into the following types based on the maximum opening area of inscribed rectangle. The side - line length ratio of the rectangle is 1: 1-1: 3.

Notes:
1. Mica plate of type SMALL 2 are admissible in mica plates of type 3, 4, 4.5, 5, 5.5, 6 and 6.5.
2. Among the plates of type 8 the number of plates with their sizes smaller than 2 cm2 should not exceed 20 percent of the total number.

Type	Area (cm 2 )	Admissible value with type SMALL 1 plate (according to the number)	Group	Thickness (um)	General edge thickness(um)	Edge thickness over center
3	65 over	15	1 2	10-20 20-30	25 35	10 10
4	50~60	15	1 2	10-20 20-30	25 35	10 10
4.5	40~! 50	15	1 2	10-20 20-30	25 35	10 10
5	30~40	15	1 2	10-20 20-30	25 35	10 10
5.5	20~30	15	1 2	10-20 20-30	25 35	10 10
6	15~20	15	1 2	10-20 20-30	25 35	10 10
6.5	10~20	15	1 2	10-20 20-30	25 35	10 10
7	6~10	20	1 2	10-20 20-30	25 35	10 10
8	4~6		3	5-35

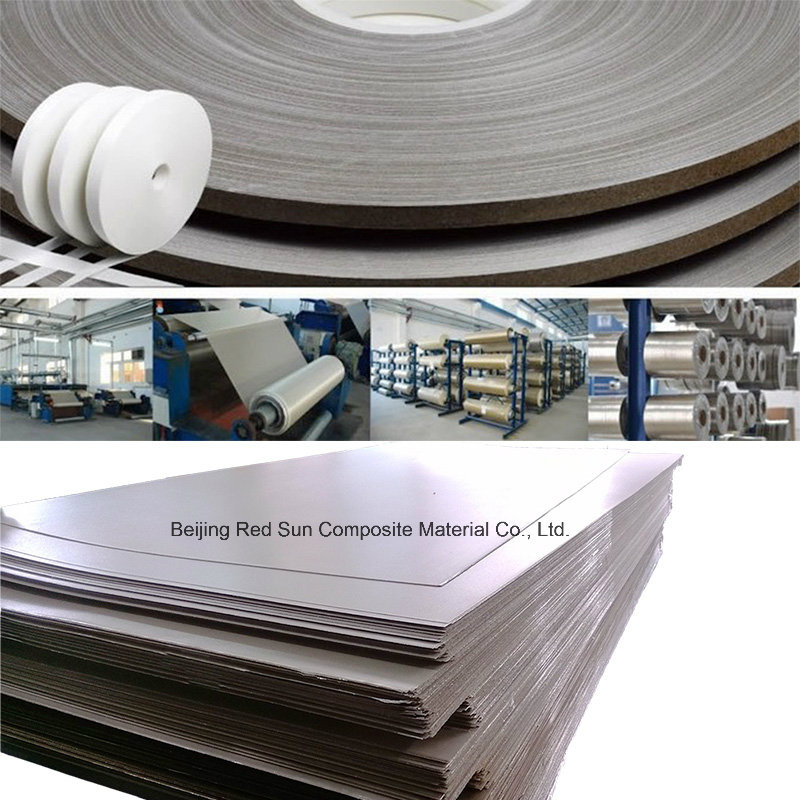

Beijing Red Sun Composite Material Co., Ltd. is one professional producer for SMC and BMC molding products, insulating rigid laminates, rods and tubes, flexible composites, high thermal resistant products, gasket, fiber glass products, engineering plastics, etc. We also provide the further fabrication for these products and kinds of composite materials. You can get most of what you want from us.

Advanced production line, excellent technology and experienced work team assure we can provide you the products comply with the international standards and different requirements. We assure that you will get the high efficiency feedback and best service from us for those products that we deal with and certainly with the competitive price.

We have won customers from USA, Canada, Germany, Japan, and so on to be our partners, and more and more customers are joining us.

Red Sun Composite always takes the "Mutual Benefit", "Quality First" and "Better Ethics" as principle. Red Sun Composite will be your partner to success.
