Mica Tape

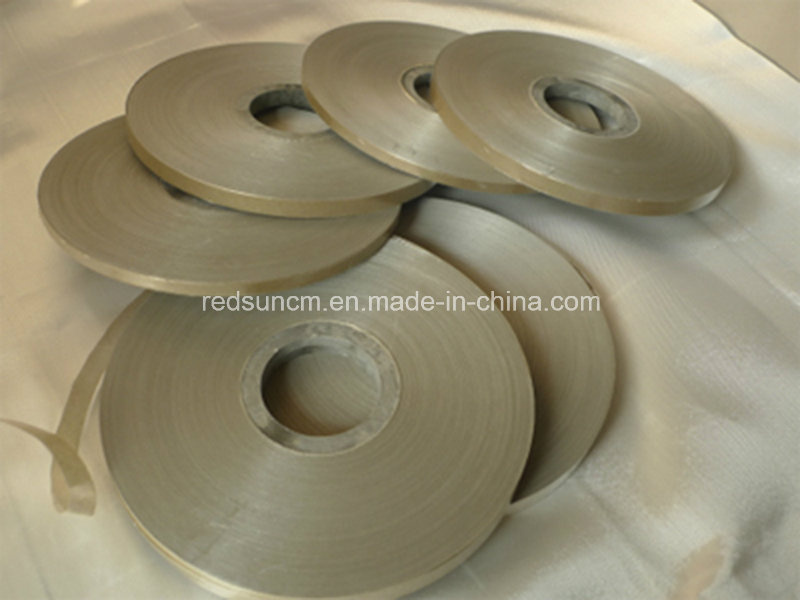

Name: Mica Tape
Brand: all-electronics-online.com
SKU: 670417022
Availability: InStock
Rating: 4.6 (91 reviews)

Price:	Negotiable/Roll
Trade Terms:	FOB, CIF or Others
Min Order:	100/Roll

Contact Supplier

Showroom Product Company Profile

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Insulation Tape
Chemistry:	Organic Insulation
Material:	Mica
Maximum Voltage:	<10KV
Application:	Motor & Cable
Thermal Rating:	500 C

Product Description

1. Properties and Usages
Mica tape is a kind of tape form insulate material like made of muscovite paper or phogopite paper mixed with proper adhesive glued on non-soda glass cloth after baked and cut. It has good mechanical strength and electric capability and property of heat resistance. It can be used within 150-800ºC for a long time. Now it has been widely used as electric motor, electric appliance and fireproof wire with 800ºC heat resist grade.

2. Main Technical Standards

Type	Base Material	Reinforce Form	Thickness (mm)	Mica Content (%)	Dielectric Strength (MV/m)	Tensile Strength (N/10mm)	Loss on heating (at 350ºC)	Length (M)
R5450-1	Muscovite	Single Face	0.14±0.025	≥50	≥12	≥50	≤3	90-300
R5450-2	Muscovite	Both Face	0.18±0.025	≥40	≥10	≥80	≤3	90-300
RP5450-1	Phlogopite	Single Face	0.14±0.025	≥50	≥12	≥50	≤3	90-300
RP5450-2	Phlogopite	Both Face	0.18±0.025	≥40	≥10	≥80	≤3	90-300

3. Width
Mica tape width(mm): 8±1, 10±1, 15±1, 20±1, 25±1, 30±1, 35±2, 40±2, 45±2, 50±2,55±2, 60±2

4. Package
Mica tape is rolled into roll with 40±1mm plastic spool, put many rolls (e.g.10, 20, 30, 40 etc) in a carton with wrapped up in plastic film. Mica tape can be packed according to the customer's requirements.

5. Storage Time
The storage time is 8 months after delivery at dry room temperature.

Beijing Red Sun Composite Material Co., Ltd. is one professional producer for SMC and BMC molding products, insulating rigid laminates, rods and tubes, flexible composites, high thermal resistant products, gasket, fiber glass products, engineering plastics, etc. We also provide the further fabrication for these products and kinds of composite materials. You can get most of what you want from us.

Advanced production line, excellent technology and experienced work team assure we can provide you the products comply with the international standards and different requirements. We assure that you will get the high efficiency feedback and best service from us for those products that we deal with and certainly with the competitive price.

We have won customers from USA, Canada, Germany, Japan, and so on to be our partners, and more and more customers are joining us.

Red Sun Composite always takes the "Mutual Benefit", "Quality First" and "Better Ethics" as principle. Red Sun Composite will be your partner to success.
