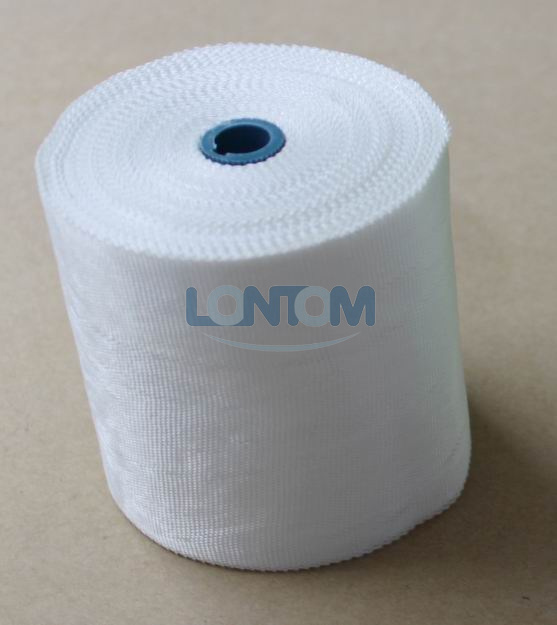

Insulation Non-Alkali Fiber Glass Woven Tape

Name: Insulation Non-Alkali Fiber Glass Woven Tape
Brand: all-electronics-online.com
SKU: 672410705
Availability: InStock
Rating: 4.8 (54 reviews)

Price:	US $ 0.11-0.40/Roll
Trade Terms:	FOB,CFR,CIF
Min Order:	1000/Roll
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	FGT
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Application:	Motor
Type:	Solid
Chemistry:	Inorganic Insulation
Material:	Fiberglass
Thermal Rating:	F 155
Maximum Voltage:	800V
Certification:	ISO9001; SGS
Brand:	Lontom

Product Description

FGT Fiberglass Tape is weaved by no-alkali fiberglass yarn, with good thermal resistant and insulation features, which is widely used for windings of motor and transformer.

Main Properties:

1 Thickness: 0.13mm~0.40mm

2. Width: 10mm~150mm

3. Length/Roll: Normal package 30 or 50 meters

4. Standard color: White

5. Flammability: VW-1

6. Weave: Plain

7. Cutting tool: Scissors

8. Certificate: RoHS, MSDS

Application:

1. AC, DC motors

2. Electric generators

3. Transformers

Test content		Unit	Standard
Appearance			Smooth and white, not any impurity
Standard roll length		M	50 meters per roll and each roll allow one junction.
Density	warp	No. /cm	22± 1
Density	weft	No. /cm	11± 1
Tolerance	thickness	mm	± 0.01
	width	mm	± 1
	length	m	± 0.3
Metallic oxide content		%	< 0.8
Combustible content		%	0.6~2.0
Tensile strength at break		N/20mm	≥ 1000
Weight per unit length		g/m	± 0.1%
Standard color			white

Lontom Products manufactures and distributes the largest selection of heat shrink tubing, Electric Insulation Sleeving, Tape and wires split loom products, and sold insulation material and wiring accessories throughout the world. Lontom has delivered excellence by consistently providing our customers with extraordinary levels of quality, competitive pricing, service and timely deliveries. We believe providing personalized and professional customer service is essential. Additionally, by manufacturing our own products and partnering with qualified suppliers, we guarantee that our products and services will meet or exceed each of our customer's specific needs.

Exceptional service combined with a large selection of products for varying applications and industries have been the key to Lontom's success over the past seven years. Our staff of professionals truly cares about their respective customer responsibilities; They take the time to listen and respond accordingly.
