| Prod Model: |
ITX-M60 VER: 1.1 |
| Lvds: |
2CH/24bit |
| Expansion Slots: |
1* Mini-Pcie Slot,1*Msata Slot |
| Watchdog: |
Support Hardware Reset Function (L256, 0~255 Secon |
| Integrated Graphics: |
Integrated Graphics |
| Main Chipset: |
Intel |
| Maximum Memory Capacity: |
16G |
| Structure: |
Mini-ITX |
| Memory: |
DDR3 |
| SATA Interface: |
SATA2.0 |
| Printed Circuit Board: |
Six Layer |
| Main Board Structure: |
Integrated |
| Audio Effects: |
Not HiFi |
Product Description

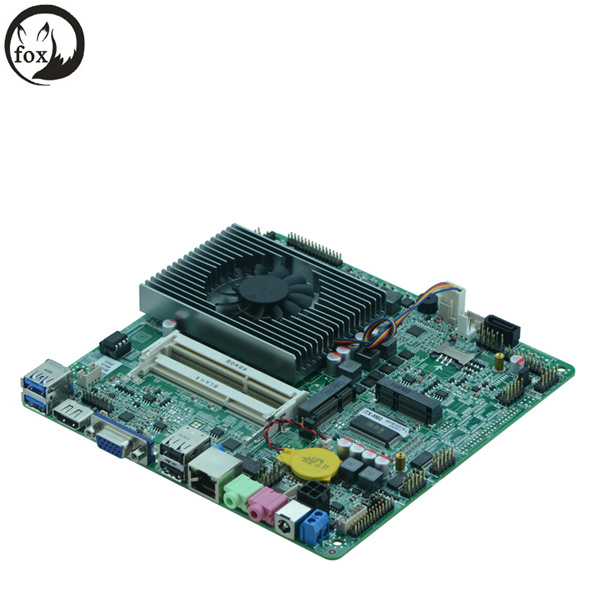

Integrated Intel Celeron 3855 u 1.6 GHz Processor / 6100 u 2.3 GHz/I3 I5 6300 u 2.4 GHz dual-core Processor
Sixth generation skylake -u 3855 U dual-core low-power high-performance serial port ultrathin itx motherboard
ITX-M60 VER:1.0
♦ Integrated Intel® Celeron® Processor 3855U 1.6GHz/3955U 2.0GHz Dual Core Processor
♦ Compatible Intel® SKYLAKE-U Pentium/Celeron/I3/I5/I7 Low power processor
♦ 2* DDR3L SODIMM ,support dual channel 1600\1333MHz Memory,up to 16GB
| Model | ITX-M60 VER:1.0 |
| CPU | Integrated Intel® Celeron® Processor 3855U 1.6GHz/3955U 2.0GHz Dual Core Processor |
| | Compatible Intel® SKYLAKE-U Pentium/Celeron/I3/I5/I7 Low power processor |
| Chipset | NC |
| Memory | 2* DDR3L SODIMM ,support dual channel 1600\1333MHz Memory,up to 16GB |
| Graphics | Integrated Intel® HD Graphics 510, support DirectX 12 OpenGL 4.4, support 4K/60Hz |
| | Provide 1*VGA, The highest resolution is :1920X1200@60Hz |
| | 1*HDMI1.4 , The highest resolution is :4096X2304@24Hz |
| | 1* support dual channel24bit LVDS |
| LAN | Integrated 2*Realtek RTL8111F Gigabit Ethernet(LAN2 andUSB1 two choose one) |
| | Support wake on LAN /PXE |
| Storage | Provide 2* SATA3.0 HDD interface,the transfer rate up to 6Gbps |
| | 1* eMMCEmbedded memory chip(Optional) |
| Audio | Onboard ALC662 6-channel high fidelity audio controller, support MIC/Line-out. amplifier |
| | Amplifier proposed using 2Ω5W speakers |
| Expansion slots | Provide 1* Mini-PCIE slot,support WIFI,3G module |
| | 1*MSATA slot, support SSD, the transfer rate up to6Gbps |
| Rear I/O | 2* USB3.0 |
| | 1* HDMI (HDMI1 andDP1 are two choose one) |
| | 1* VGA |
| | 2* RJ45 Gigabit Ethernet connector(LAN2 andUSB1 two choose one) |
| | 1*Line-out(Green),1*MIC(Red) |
| | 1*DC12V power interface |
| Internal I/O | 1* JVGA1 1*12pin same signal with DB15 |
| | 1* JHDMI 2*8pin ,same signal with HDMI |
| | 6* RS232 serial ports, the 9th pin of COM1/COM2 support charged function, COM3 supportRS485/422 function |
| | 1* PS/2 KB/MS connector 1*6Pin |
| | 4* USB2.0 2*5pin |
| | 1* USB2.0 1*4pin |
| | 1* LPT parallel interface 2*13Pin |
| | 1* front panel audio connector 2*5pin |
| | 1* front panel function buttons and indicator connector 2*5Pin |
| | 1* LVDS 2*15pin,support dual channel 24bit(double 8) |
| | 1* LVDS backlight power supply connector |
| | 1* HDD power supply connector |
| | 1* power amplifier interface 1*4pin |
| | 1* SIM card socket |
| | 1* 4pin ATX power interface(can do 12V power input/output interface) |
| | 1* 2pin 12V DC power input interface |
| FAN Interface | 1*4pin CPU intelligent fan interface, 1* 3pin system fan interface |
| GPIO | support 4 way input/output GPIO |
| BIOS | 64Mb Flash ROM |
| Watchdog | Support hardware reset function (L256, 0~255 seconds) |
| Power input | Adopt DC 12V power supply |
| Operating Temp. | -10ºC~60ºC |
| Storage Temp. | -20ºC~70ºC |
| Humidity | 5%-95% (relative humidity; non-condensing) |
| Dimension | 170mm x 170mm |
Order information:
| NO. | Model | Processor | Frequency | Memory | VGA | HDMI | LVDS | LAN | USB | COM | Power |
| 1 | ITX-M60 VER:1.0 | 3855U | 1.6G | 2*SODDR3 | 1 | 1 | 2ch/24Bit | 2*8111F | 7 | 6 | DC12V |
