| Prod Model: |
ITX-HM87-3 |
| Integrated Graphics: |
Integrated Graphics |
| Main Chipset: |
Intel |
| Maximum Memory Capacity: |
8G |
| Structure: |
Mini-ITX |
| Memory: |
DDR3 |
| SATA Interface: |
SATA2.0 |
| Printed Circuit Board: |
Six Layer |
| Main Board Structure: |
Integrated |
| Audio Effects: |
Not HiFi |
Product Description

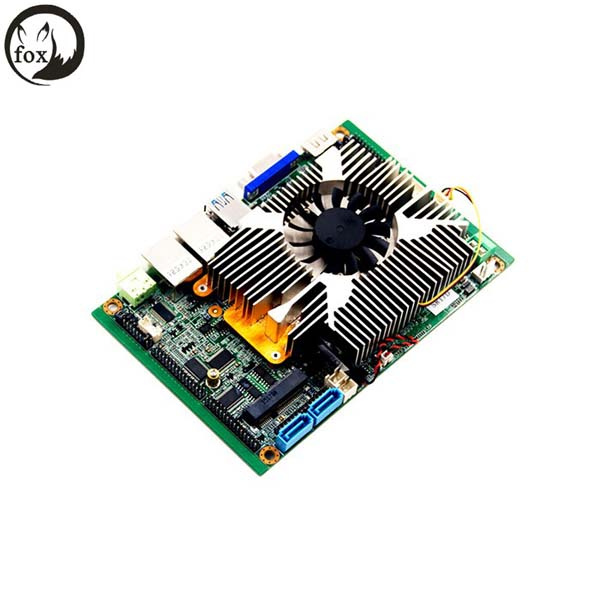

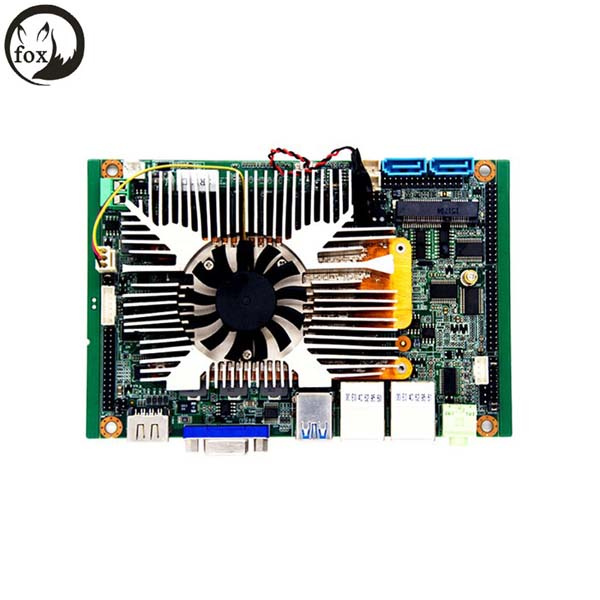

support 4th Haswell-M i3-i5-i7 CPU 3.5inch motherboard
HM87-3
Adopt Intel G4 Haswell-M dual chipset, Intel Mobile 4th Haswell-M i3-i5-i7 CPU
Intel Mobile 4th Haswell-M,QM87/HM86/HM87 (optional) Chipset
Onboard 2GB/4GB DDR3L RAM
onboard 2* 1*Realtek RTL8111EL PCI-E Gigabit Ethernet LAN,2USB 3.0
support HDMI,CRT,dual channel 24 bit LVDS output
Size 145 x 102 mm
Processor | CPU | Intel Mobile 4th Haswell-M i3-i5-i7 CPU |
CPU package | RPGA946 Socket |
Chipsets | Intel Mobile 4th Haswell-M,QM87/HM86/HM87(optional)Chipset |
BIOS | EFI BIOS |
RAM | Technical architecture | Single channel 1066/1333/1600 MHZ |
Volume | Integrated Onboard DDR3 2GB/4GB RAM |
Video | graphic controller | Intel@HD Iris Pro Graphics 4600 |
Dual LVDS | Support dual channel 18/24bit LVDS connector;Max support 1920*1200 |
HDMI | 1*HDMI(Resolution maximum:1920*1200) |
VGA | 1*VGA port(Resolution maximum:2048x1536) |
Dual display | LVDS+VGA,LVDS+HDMI,HDMI+VGA,Synchronous or asynchronous display |

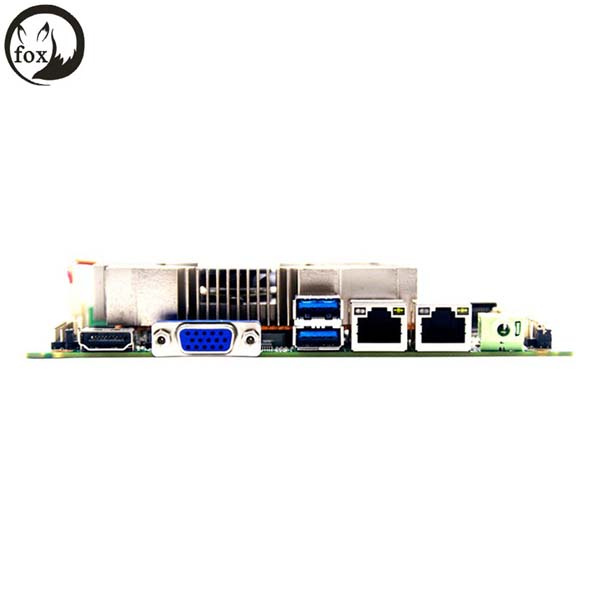

I/O | rear panel I/O | 1*VGA,1*HDMI,2*lAN,2*USB2.0/1*MIC-OUT/LINE-OUT |
Network | controller | 2*Realtek RTL8111E-V PCI-E Gigabit Ethernet LAN,RJ45 ports |
AUDIO | controller | Onboard Realtek HD ALC662 chipset,provide 6 channels output(line-in,line-out,Mic) |
Super I/O | controller | NCT6106D |
hardware monitor | watchdog timers | 0~255 timer |
Cooler | Aluminum heat sink(fan) |
input/output port | USB | 6*USB(1*USB3.0 ports,1*USB2.0 ports,4 USB Pins),Max.supported 5V/1A |
COM | 8*GPIO expansion header(8 bit),3.3V@24mA electrical level |
PS/2 | |
GPIO | 8*GPIO expansion header(8 bit),3.3V@24mA electrical level |
Expansion Sockets | Mini-PCle | 1*Mini-PCIe socket,support PCIe,USB device |
SMBUS | |
storage | SATA | 2*SATAII interface(Maximum transmission rate to 3gb/s) |
M-SATA | 1*Mini-PCIeM-SATA Socket,support SANDISK protocol(Maximum transmission rate to 3gb/s) |
| | SMBUS | 2Pin SMBUS pin |
Power Supply | Power type | Single input DC power supply,12V-DC,+/-5% |
Power Consumption | 60W |
Temperature environment | Working Temperature | -20°C~70°C(-4°F~158°F) |
Storage Temperature | -20°C~80°C(-4°F~176°) |
Operating Humidity | 10%~90%(non-condensing) |
Storage Humidity | 10%~90%(non-condensing) |
Dimensions | Size | 145*102mm |
Weight | 0.5 KG |
Certification | | ROHS,CE,FCC |
| Item | Model | Specifications
(Motherboard with Cpu,Memory) |
| Motherboard | ITX-HM87-I34000M | Onboard CPU:I3-4000M.
Onboard 2GB DDR3 Memory. |
| | ITX-HM87-I54200M | Onboard CPU:I5-4200M.
Onboard 2GB DDR3 Memory. |
| | ITX-HM87-I74700MQ/ EC /HQ | Onboard CPU:I7-4700MQ/ EC /HQ.
Onboard 2GB DDR3 Memory. |
| | | |
| Motherboard | ITX-HM87-I34000M | Onboard CPU:I3-4000M.
Onboard 4GB DDR3 Memory. |
| | ITX-HM87-I54200M | Onboard CPU:I5-4200M.
Onboard 4GB DDR3 Memory. |
| | ITX-HM87-I74700MQ/ EC /HQ | Onboard CPU:I7-4700MQ/ EC /HQ.
Onboard 4GB DDR3 Memory. |
