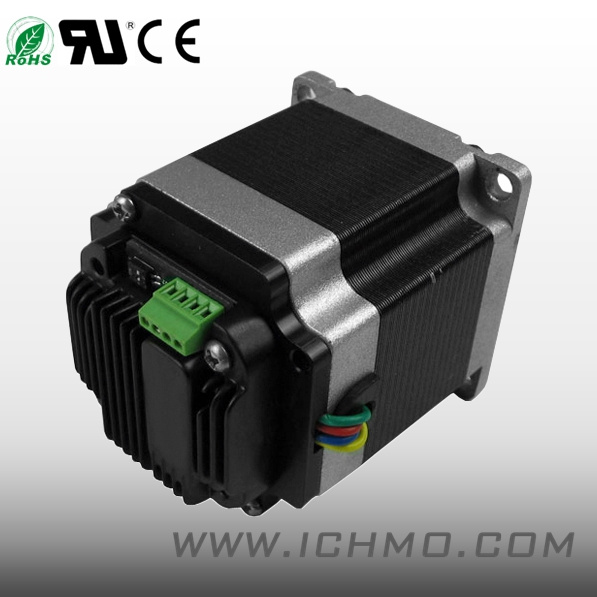

Integrated Stepper Motor HI57 Series

Name: Integrated Stepper Motor HI57 Series
Brand: all-electronics-online.com
SKU: 670273655
Availability: InStock
Rating: 4.3 (29 reviews)

Price:	US $ 40-150/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	100/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	HI57
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Feature:	Integrated
Size:	57mm
Setp Angle:	1.8
Body Lenth:	45-100mm
Number Of Stator:	Two-Phase
Excitation Mode:	HB-Hybrid
Type:	Magnetic-Electric
Application:	Camero Monitor
Certification:	CE Rosh
Brand:	I.CH

Product Description

Features:
-Integral Design, all in one (controller, driver and motor)
-Frame NEMA23
-Hybrid bipolar stepping motors
-Different Rated Current
-Holding Torque for your separate applications

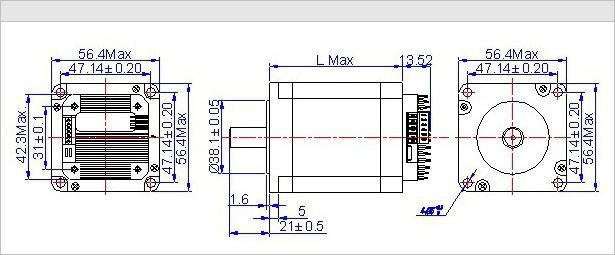

Drawing:

Specification

Series Model	Step Angle (°)	Motor Length (mm)	Rated Current (A)	Phase Resistance (Ω)	Phase Inductance (mH)	Holding Torque (Kg.cm Min)	Rotor Inertia (g.cm²)	Lead Wire (NO.)	Motor Weight (g)
HI57-a	1.8	45	2.4	1.1	2.1	5.5	190	4	520
HI57-b	1.8	51	2.8	0.53	1.75	10	230	4	585
HI57-c	1.8	100	3.0	0.67	2.7	20	680	4	1400
Note : The above motor information is only for your information. The more motor information is showed in our stepper motor catalogue.

CI242 stepper controller is a microprocessor based single axis motion controller with an integrated bipolar stepper motor drive working standalone or integrally on stepper motor for networking. Through one CAN/RS232 Converter you can control at most 112 this integrated stepper motors with motion controllers by one PC synchronously or individually. An on-board bipolar 'chopper' stepper drive is provided capable of driving motors up to 4 per phase in both full, half, fourth and sixteenth micro stepping modes.
You could also use the Parallel port CI240stepper driver and Serial port CI241stepper controller for an integrated stepper motor.

I. CH MOTION is specialized in researching, developing and serve electric motor in China. With the professionalism of our highly trained and qualified mechanical engineers, electronic engineers and marketing consultants, we are able to provide product design and integration service to our customers in the world market.

We supply a complete range of electrical/electronic motors including AC motors, AC Gear motor, DC motor, DC Gear motor (spur gearbox and planetary gearbox), Stepper motors (stepping motor or step motor), Worm Geared motors, synchronous motor, brushless motor, servo motor, brake motor, sealed motor, hollow shaft motor, harmonic driver, linear stepper motor and other auxiliary electronic motor controls.

We have established an electrical consortium with small size electric motor manufacturers working as an exclusive exporters and world-wide sourcing agents of small electrical motors. These premium quality products are widely used in industrial automation, commercial and domestic automation.

Feel welcome to review all of our product range.

We are also proud to accept special design requirements from the customers.

Should you have questions about our product range, please contact our Sales Department.
