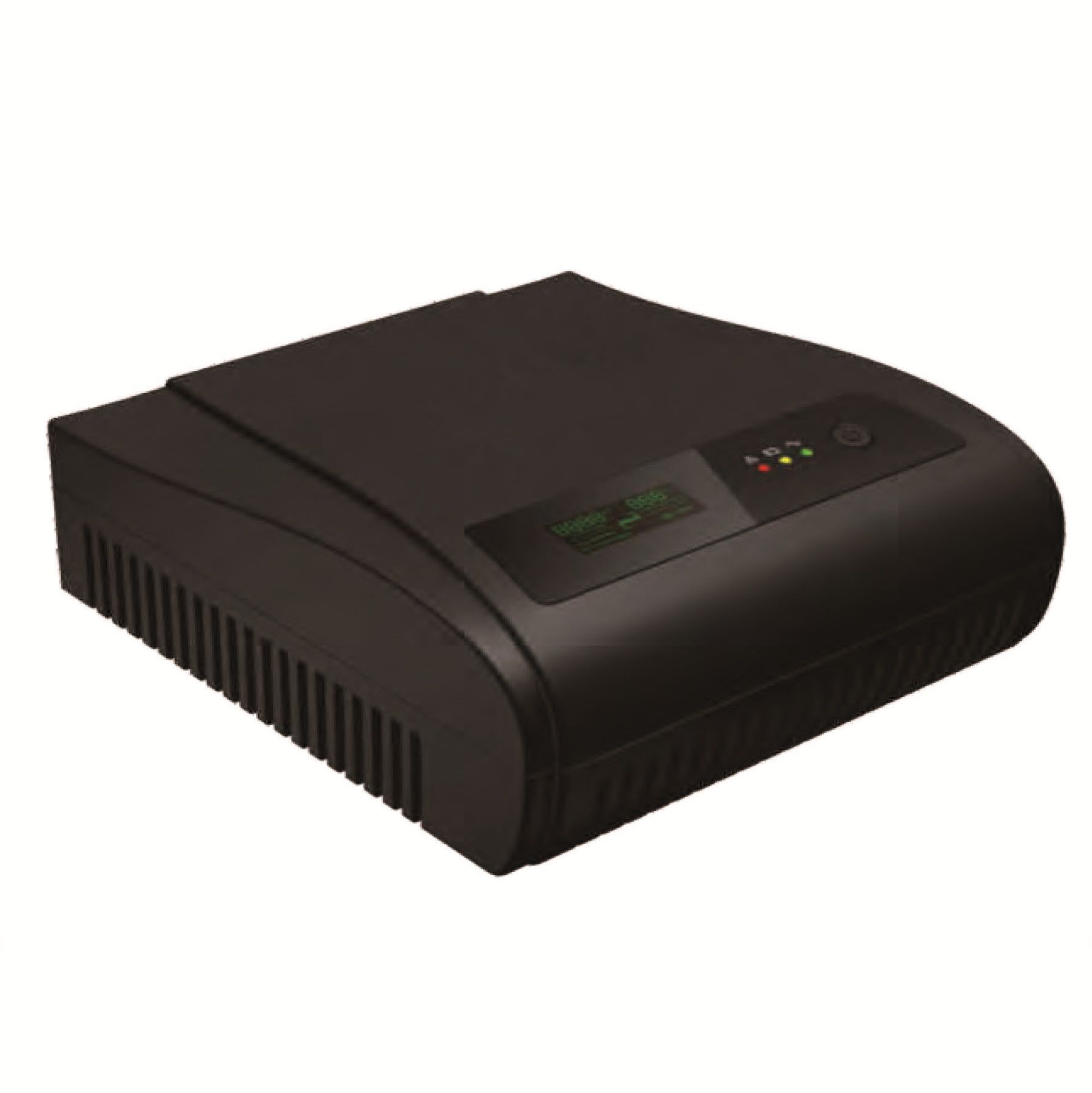

Inverter Charger Solar Control, High Frequency Modified Sine Wave off Grid

Prod Model:	WSP3110

Product Description

Inverter charger solar control,high frequency modified sine wave Off grid

1.Modified sine wave output
2.built-in PWM solar charge controller
3.High frequency design
4.Optional input voltage range
5.Full automatic and silent operation
6.Automatic charging
7.Auto change AC-DC
8.Overload protection
9.Automatic restart
10.Three-steps intelligent charging control to recharging
11.LCD display, audible and visual alarm

full protection:
Protection for low battery voltage,over load,output short circuit and over-temperature restrain surge interference,eliminate noise, protection for thunder striking, provide the reliable power to the home appliances.

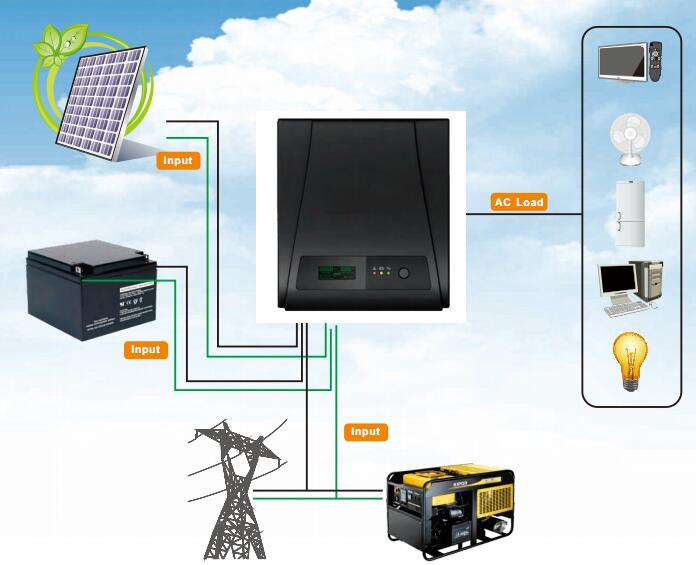

Applications:
Supply the reliable long back up time power for the home appliances and office appliances solar power system etc.

Specification
Model		3110C 1000-2000VA
		1000-12	1200-12	2000-24
Capacity		1000VA / 700W	1200VA /840W	2000VA / 1400W
Nominal voltgae		220/230/240VAC
Nominal Frequency		50/60Hz
Input
Voltage Range		170-280VAC±4%(Narrow Range)  90±7VAC~280VAC±4%(Wide Range)
Frequency Rang		50/60Hz
Output
Voltage Regulation		220/230/240VAC±2%
Frequency Regulation		50Hz/60Hz±0.1Hz
Wave Form		Modified sine wave
Utility battery mode		15-20ms typical (narrow range); 40ms max(wide range)
Battery mode utility		10ms max
Battery mode		>80%
Line mode		>95%
Battery
DC Voltage		12V	12V	24V
Overcharge Protection		15V	15V	30V
Charge current		10A/15A/20A
LCD Display & LED Indicate
Line mode		Line mode 1, charger current>3A; Green flashing every 2 seconds
		Line mode 2, charger current≤3A; Green solid lighting
		Off-charge mode    Green flashing as cycle
Battery Mode		Yellow lighting
Overload		Red flashing every 0.5second
Fault		Red lighting
Solar charger
Maximum PV array open circuit voltage		55VDC
Maximum Charging Current		40A
Maximum Efficiency		>96%
Standby Power Consumption		<20W
Operating Environment
Temperature		0ºC~40ºC
Humidity		5%~95%(<40ºC,Non-condensing)
Storage Temperature		-25ºC~55ºC
Elevation		<1500m
Noise(within 1 meter)		<45dB
IP Protection level		IP20
Standard : Conform to GB/IEC regulation: EMC:GB7260.0/IEC62040-2 GB/17626.2~5/IEC61000-4-2~5 SAFETY:GB4943
Note: Product specifications are subject to change without further notice.
