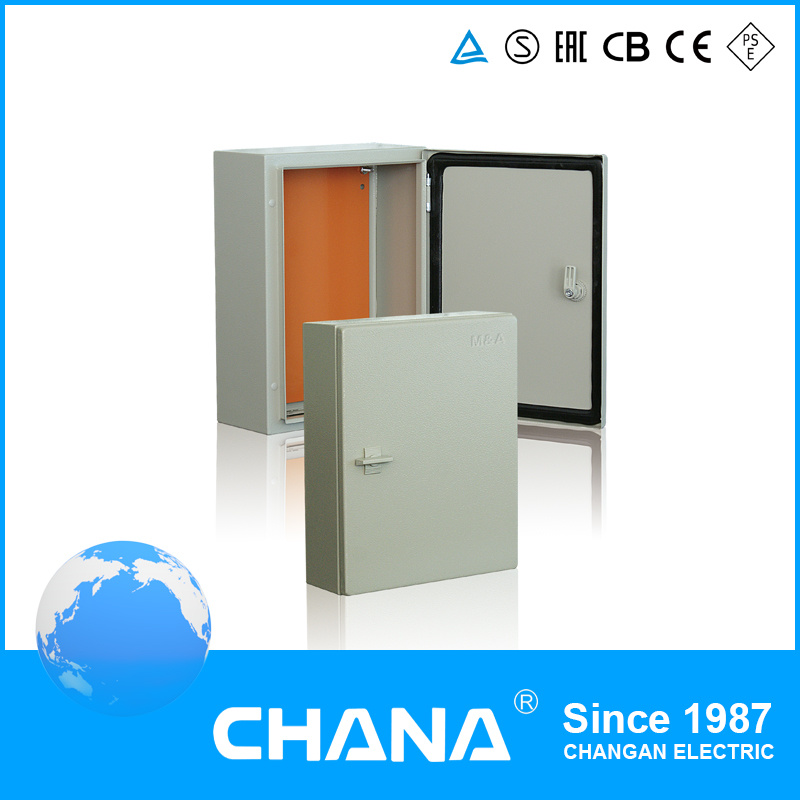

IP66 Metal Distribution Box Junction Box Steel with Lock

Name: IP66 Metal Distribution Box Junction Box Steel with Lock
Brand: all-electronics-online.com
SKU: 743241875
Availability: InStock
Rating: 4.3 (124 reviews)

Price:	US $ 6.18-7.22/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	10/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	CABS
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	Ral7032, Ral7035
Standard:	IEC60529
Impact Performance:	Ik10
Protection Degree:	IP66
Type:	Distribution Metering Box
Structure:	Fixed Board
Certification:	Ce,RoHS
Application Range:	Electrical Installation
Shell Protection Grade:	IP66
Brand:	Chana

Product Description

CABS Series Steel Distribution Box

1. Description

Protection degree: IP66
Standard: IEC60529
Color: RAL7032, RAL7035
Impact performance: IK10

2. Specification

Model	Dimension (mm)			Thickness (mm)			Bottom hole size	Lock QTY	Mounting plate size
Model	H	W	D	Door	Body	M.P	Bottom hole size	Lock QTY	L	M
CABS 2020/15	200	200	150	1.2	1.2	2	A	1	150	150
CABS 2520/15	250	200	150	1.2	1.2	2	A	1	200	150
CABS 3020/15	300	200	150	1.2	1.2	2	A	1	250	150
CABS 3020/20	300	200	200	1.2	1.2	2	A	1	250	150
CABS 3025/15	300	250	150	1.2	1.2	2	A	1	250	200
CABS 3025/20	300	250	200	1.2	1.2	2	A	1	250	200
CABS 3030/15	300	300	150	1.2	1.2	2	B	1	250	250
CABS 3030/20	300	300	200	1.2	1.2	2	B	1	250	250
CABS 3030/25	300	300	250	1.2	1.2	2	B	1	250	250
CABS 4030/15	400	300	150	1.2	1.2	2	B	1	350	250
CABS 4030/20	400	300	200	1.2	1.2	2	B	1	350	250
CABS 4030/25	400	300	250	1.2	1.2	2	B	1	350	250
CABS 4030/30	400	300	300	1.2	1.2	2	B	1	350	250
CABS 4040/15	400	400	150	1.2	1.2	2	C	1	350	250
CABS 4040/20	400	400	200	1.2	1.2	2	C	1	350	350
CABS 4040/25	400	400	250	1.2	1.2	2	C	1	350	350
CABS 4040/30	400	400	300	1.2	1.2	2	C	1	350	350
CABS 5030/15	500	300	150	1.2	1.2	2	B	1	450	350
CABS 5030/20	500	300	200	1.2	1.2	2	B	1	450	250
CABS 5030/25	500	300	250	1.2	1.2	2	B	1	450	250
CABS 5040/15	500	400	150	1.2	1.2	2	C	1	450	350
CABS 5040/20	500	400	200	1.2	1.2	2	C	1	450	350
CABS 5040/25	500	400	250	1.2	1.2	2	C	1	450	350
CABS 5040/30	500	400	300	1.2	1.2	2	C	1	450	350
CABS 5050/20	500	500	200	1.2	1.2	2	D	1	450	450
CABS 5050/25	500	500	250	1.2	1.2	2	D	1	450	450
CABS 5050/30	500	500	300	1.2	1.2	2	D	1	450	450
CABS 6040/15	600	400	150	1.2	1.2	2	C	1	550	350
CABS 6040/20	600	400	200	1.2	1.2	2	C	1	550	350
CABS 6040/25	600	400	250	1.2	1.2	2	C	1	550	350
CABS 6040/30	600	400	300	1.2	1.2	2	C	1	550	350
CABS 6050/15	600	500	150	1.2	1.2	2	D	1	550	450
CABS 6050/20	600	500	200	1.2	1.2	2	D	1	550	450
CABS 6050/25	600	500	250	1.2	1.2	2	D	1	550	450
CABS 6050/30	600	500	300	1.2	1.2	2	D	1	550	450
CABS 6050/15	600	600	150	1.2	1.2	2	D	1	550	550

Model	Size (mm)			Thickness (mm)			Bottom hole size	Lock QTY	Mounting plate size
	H	W	D	Door	Body	M.P			L	M
CABS 6060/20	600	600	200	1.2	1.2	2	D	2	550	550
CABS 6060/25	600	600	250	1.2	1.2	2	D	2	550	550
CABS 6060/30	600	600	300	1.2	1.2	2	D	2	550	550
CABS 7050/15	700	500	150	1.2	1.2	2	D	2	650	450
CABS 7050/20	700	500	200	1.2	1.2	2	D	2	650	450
CABS 7060/20	700	600	200	1.2	1.2	2	D	2	650	550
CABS 7060/25	700	600	250	1.2	1.2	2	D	2	650	550
CABS 7060/30	700	600	300	1.5	1.5	2	D	2	650	550
CABS 8060/20	800	600	200	1.5	1.5	2	D	2	750	550
CABS 8060/25	800	600	250	1.5	1.5	2	D	2	750	550
CABS 8060/30	800	600	300	1.5	1.5	2	D	2	750	550
CABS 8080/20	800	800	200	1.5	1.5	2	F	2	750	750
CABS 8080/25	800	800	250	1.5	1.5	2	F	2	750	750
CABS 8080/30	800	800	300	1.5	1.5	2	F	2	750	750
CABS 10060/20	1000	600	200	1.5	1.5	2	D	2	950	550
CABS 10060/25	1000	600	250	1.5	1.5	2	D	3	950	550
CABS 10060/30	1000	600	300	1.5	1.5	2	D	3	950	550
CABS 10070/20	1000	700	200	1.5	1.5	2	D	3	950	650
CABS 10080/20	1000	800	200	1.5	1.5	2	F	3	950	750
CABS 10080/25	1000	800	250	1.5	1.5	2	F	3	950	750
CABS 10080/30	1000	800	300	1.5	1.5	2	F	3	950	750
CABS 10080/40	1000	800	400	1.5	1.5	2	F	3	950	750
CABS 100100/25	1000	1000	250	1.5	1.5	2	G	3	950	950
CABS 100100/30	1000	1000	300	1.5	1.5	2	G	3	950	950
CABS 12060/20	1200	600	200	1.5	1.5	2	D	3	1150	550
CABS 12060/25	1200	600	250	1.5	1.5	2	D	3	1150	550
CABS 12060/30	1200	600	300	1.5	1.5	2	D	3	1150	550
CABS 12080/20	1200	800	200	1.5	1.5	2	F	3	1150	750
CABS 12080/25	1200	800	250	1.5	1.5	2	F	3	1150	750
CABS 12080/30	1200	800	300	1.5	1.5	2	F	3	1150	750
CABS 12080/40	1200	800	400	1.5	1.5	2	F	3	1150	750
CABS 120100/25	1200	1000	250	1.5	1.5	2	G	3	1150	750
CABS 120100/30	1200	1000	300	1.5	1.5	2	G	3	1150	950
CABS 120100/40	1200	1000	400	1.5	1.5	2	G	3	1150	950
CABS 14060/30	1400	600	300	1.5	1.5	2	D	3	1350	550
CABS 14080/30	1400	800	300	1.5	1.5	2	F	3	1350	750
CABS 14080/40	1400	800	400	1.5	1.5	2	F	3	1350	750
CABS 140100/30	1400	1000	300	1.5	1.5	2	G	3	1350	950
CABS 140120/30	1400	1200	300	1.5	1.5	2	G	3	1350	1150

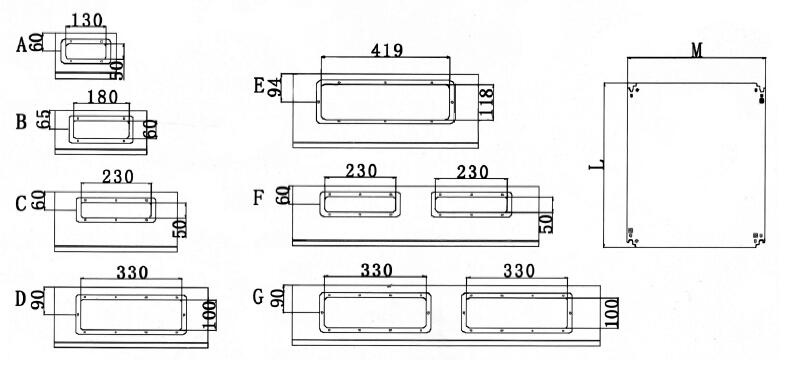

3. Dimension(mm)

4. Our Services

A. Punctual delivery time:
We carry out your order into our well-organized production schedule, ensure your punctual delivery time.
Production report before your order packed.
Shipping notice and photos sent to you as soon as your order is shipped.

B. After-service:
We pay high attention to your feed back after receive the goods.
We provide 18 months warranty after goods arrive.
We positively revert your complain within 48hours.

C. Professional Sales:
We value every inquiry sent to us, ensure quick competitive offer.
We cooperate with customer to bid tenders. Provide all necessary documents.
We are a sales team, with all technical support from engineer team.

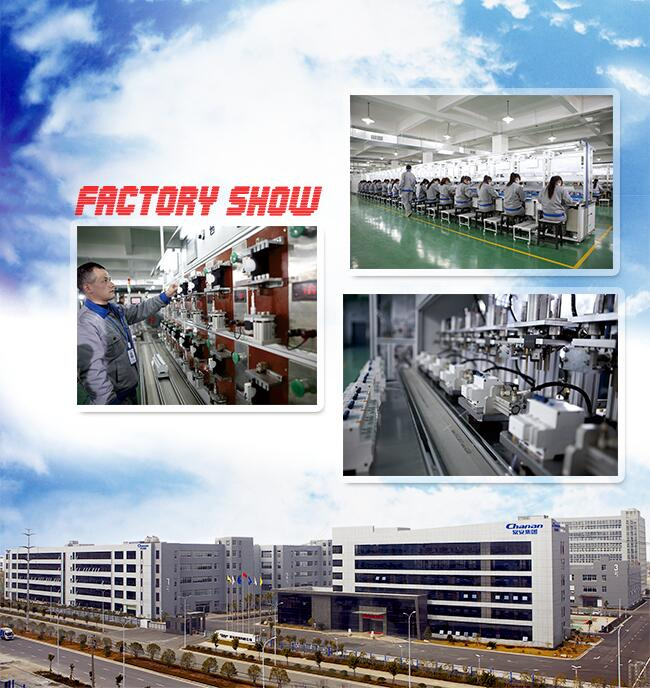

Established in 1987, CHANGAN GROUP Co., Ltd. Has been acknowledged as one of the most respected nation-wide manufacturers and exporters of low-voltage electrical apparatus in P. R. China.

Comprising more than 62 factories with over 2500 employees and the whole corporation occupies 82000m2 ground during past 27 years.

We manufacture and export varieties of low voltage electrical appliance including all kinds of CIRCUIT BREAKER, CONTACTOR, RELAY, SWITCH, SOLAR INVERTER etc.

All of our production procedures strictly follow ISO9001, ISO14001 and OHSAS18001, most of our products are certified such as SEMKO, TUV, CB and CE which can prove our guarantee quality and our products also have been chosen as "Chinese FAMOUS BRAND PRODUCT".

We not only make efforts in developing our own products with "CHANA"brand but also provide OEM services. Hope to establish good business relationships with your esteemed company in near future.
