Jd 300-1500nw High Frequency Power Inverter

Name: Jd 300-1500nw High Frequency Power Inverter
Brand: all-electronics-online.com
SKU: 839727335
Availability: InStock
Rating: 4.4 (67 reviews)

Price:	US $ 20.63-59.91/Piece
Min Order:	50/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	JD 300-1500NW
Size:	1659550-26513665
Product Name:	Jd 300-1500nw High Frequency Power Inverter

Product Description

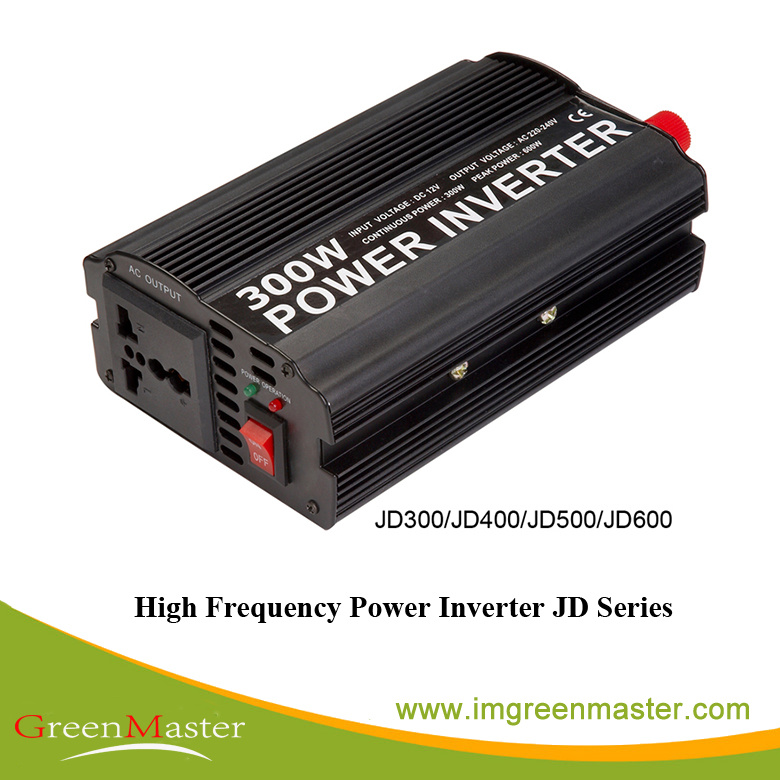

Jd 300-1500nw High Frequency Power Inverter

1. High frequency DC-AC power inverter

2. Single phase modefied sine wave ouput

3. Full range protection for the inverter and the battery

4. With USB port

5. Smaller and light

6. Modified sine wave

7. LED display and alarm

8. Two times surge power.

Technical Specifications

Mode	JD300N	JD400N	JD500N	JD600N	JD800NA/B	JD1000NA/B	JD1500NA/B
Continuous power (W)	300	400	500	600	800	1000	2000
Surge capability (W)	600	800	1000	1200	1600	2000	4000
DC input (VDC)	12/24	12/24	12/24	12/24	12/24	12/24	12/24
DC input range	10.5V to 15.5V±0.3 or 21V to 31V±0.3
AC output	220V,110V ±10 V
Output frequency	50/60±5 HZ
Output waveform	Modified sine wave
Efficiency	>85%
Battery low alarm	10.2-10.8V or 20.4-21.6V
Over discharge protection	10 ±0.5V or 20±0.5V shut off
Resume voltage	11.7V--12.8V or 23.4-25.6V auto restart
Over voltage protection	15V-16.5V, 30-33V shut off.
Overload protection	Shut off while over 120% rated capacity
With cooling fan	Yes
USB	Yes
DC conection	With cable
Connection convertor	Yes	Yes	Yes	Yes	No	No	No
Product package	Paper skin
Running temperature	20 to 40 degree
High temperature protection	Yes
Short circuit protection	Yes
Reverse polarity protection	Yes
Product size(mm)	1659550	1659550	21510055	21510055	26513665	26513665	26513665
Carton size (mm)	420305365	420305365	515305365	515305365	560335180	560335180	560335180
Carton weight (kg)	17.5	18	22	23	11.5	11.5	13
PCS /CTN	20	20	20	20	10	5	5
Remark	JD*NA with DC port of max 150W

Product Show:

Trade Show:

Certification:

We supply different kinds of LED light. High quality and favorable price. We're pleased to get your Inquiry and we will reply you ASAP. We stick to the principle of " Quality first, service first, continuous improvement and innovation to meet the customers" For the management and " Zero defect, zero complaints" As the quality objective.
