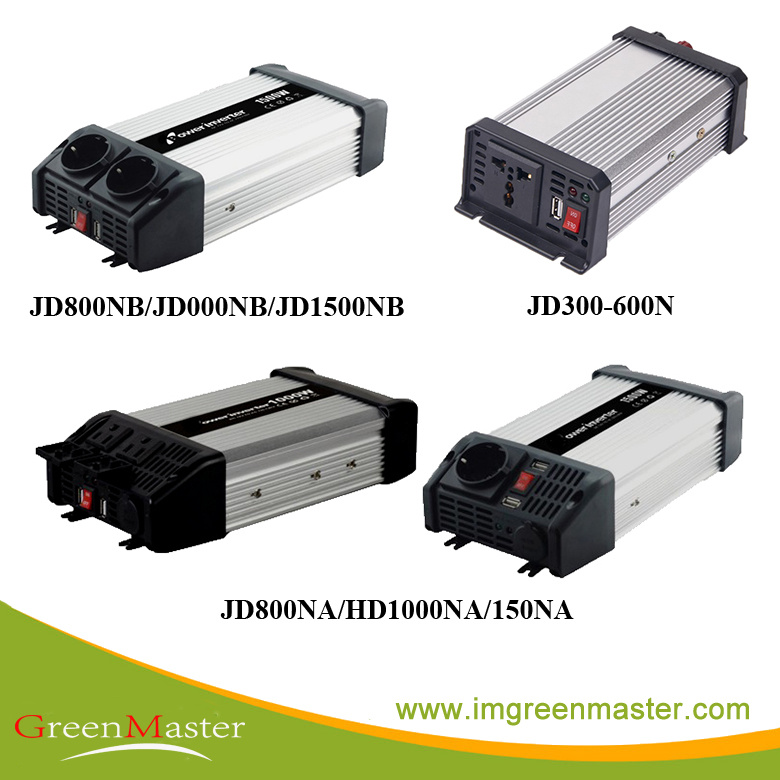

Jd-N300-1500W High Frequency Msw Power Inverter

Name: Jd-N300-1500W High Frequency Msw Power Inverter
Brand: all-electronics-online.com
SKU: 839725795
Availability: InStock
Rating: 4.3 (147 reviews)

Price:	US $ 30-70/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	JD-N300-1500W
I/P:	300-1500nw:12VDC/24VDC
O/P:	220V, 110V ±10 V
Capacity:	300-1500W
Wave Form:	Modified Sine Wave

Product Description

High Frequency MSW power inverter (JD-N300-1500W)

* I/P:300-1500NW:12VDC/24VDC

* O/P:220V,110V ±10 V

* Capacity:300-1500W

* Wave Form:modified sine wave

* Bat.:External battery

* Stand by Function

* Special design for Off Grid Solar System inverter

Key Features

1.High frequency DC-AC power inverter

2.Single phase modefied sine wave ouput

3.with USB port

4.Smaller and light

5.Modified sine wave

6.LED display and alarm

7.Two times surge power

8.Full range protection for the inverter and the battery.

Technical Specifications

Mode	JD300N	JD400N	JD500N	JD600N	JD800NA/B	JD1000NA/B	JD1500NA/B
Continuous power (W)	300	400	500	600	800	1000	2000
Surge capability (W)	600	800	1000	1200	1600	2000	4000
DC input (VDC)	12/24	12/24	12/24	12/24	12/24	12/24	12/24
DC input range	10.5V to 15.5V±0.3 or 21V to 31V±0.3
AC output	220V,110V ±10 V
Output frequency	50/60±5 HZ
Output waveform	Modified sine wave
Efficiency	>85%
Battery low alarm	10.2-10.8V or 20.4-21.6V
Over discharge protection	10 ±0.5V or 20±0.5V shut off
Resume voltage	11.7V--12.8V or 23.4-25.6V auto restart
Over voltage protection	15V-16.5V, 30-33V shut off.
Overload protection	Shut off while over 120% rated capacity
With cooling fan	Yes
USB	Yes
DC conection	With cable
Connection convertor	Yes	Yes	Yes	Yes	No	No	No
Product package	Paper skin
Running temperature	20 to 40 degree
High temperature protection	Yes
Short circuit protection	Yes
Reverse polarity protection	Yes
Product size(mm)	1659550	1659550	21510055	21510055	26513665	26513665	26513665
Carton size (mm)	420305365	420305365	515305365	515305365	560335180	560335180	560335180
Carton weight (kg)	17.5	18	22	23	11.5	11.5	13
PCS /CTN	20	20	20	20	10	5	5
Remark	JD*NA with DC port of max 150W
