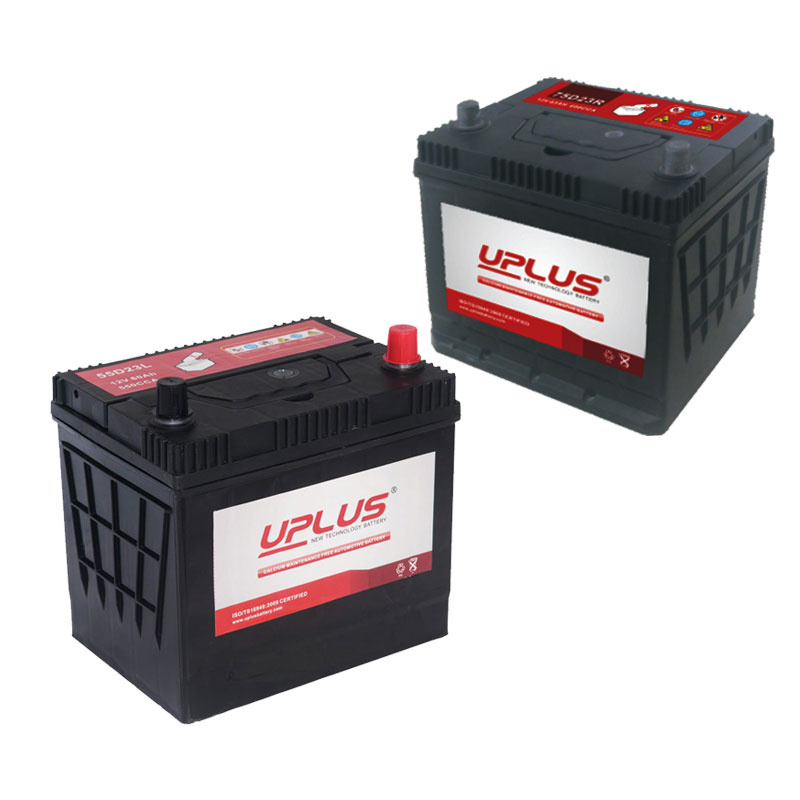

JIS Type Auto Starting 12V Mf Car Battery

Prod Model:	JIS Type
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Usage:	Boat
Nominal Voltage:	12V
Discharge Rate:	High Discharge Rate
Shape:	Square Battery
Rechargeable:	Chargeable

Product Description

About UPLUS

As a public entity of society, UPLUS well recognizes its responsibility of improving life and creating a green & sustainable development. Through continuous input in waste recycling facilities and technological improvement, UPLUS has been devoting to promote sustainability in our business activities and contributing to the development of sustainable future.

By adopting advanced technologies such as Pb-Ca grid, internal formation, AGM start-stop batteries etc, UPLUS batteries generate less waste during production and contributes to energy saving and pollution reduction. Regarding the waste water containing lead and sulfuric acid, the water treatment facilities will neutralize the waste water and remove the lead content, thus meet the environmental standards applied by Chinese government. In UPLUS, all purified water is collected and reused in production process, thus achieving "zero discharge". No industrial waste water is generated from UPLUS production facilities. This is also the reason why UPLUS obtained ISO14001:2004 certification for environmental management.

Uplus JIS series flooded maintenances-free car battery has very good low temperature starting ability, super long shelf life and maintenance free under normal situation. Those batteries are manufactured under JIS technology standard, less electrolyte is consumed, good anti-vibration capacity. It's good used for car, tractor, mine-truck and the starting, lighting for the construction engineer vehicles, etc.

General Features
High Capacity.
Long life.
High CCA and good starting performance.
Good charging acceptance and vibration resistant performance.
Application of advanced PE type separator.
Application of TTP technology.
Advanced sulfate-resistant technology.
Advanced calcium lead alloy technology, maintenance-free design.
Reliable labyrinth-like seal design.
Lead alloy terminal apply heavy load.
Full ranges models, good appearance and high standard design.

Typical Applications
Starting, light and ignition for car, Tractor, Mine vehicle and Mobile machinery shop.
Starting and ignition for the diesel motor or gasoline motor
It can be used as power for car, Tractor, Mine vehicle and Mobile machinery shop.

Group Number	JIS Old Type	JIS New Type	Nominal Voltage (V)	C20 (Ah)	C5 (Ah)	RC (min)	CCA (A)	Maximum Overall dimension(mm)				Cell Layout	Terminal	Hold Down	Handles	Wet Weight (Approx) (Kg)
								L	W	H	TH
B24	N40L	32B24L	12	40	32	61	350	237	128	200	222	0	3	B0	TS1	11.5
	N40	32B24R	12	40	32	61	350	237	128	200	222	1	3	B0	TS1	11.5
	N40L(S)	32B24LS	12	40	32	61	400	237	128	200	222	0	1	B0	TS1	11.5
	N40(S)	32B24RS	12	40	32	61	400	237	128	200	222	1	1	B0	TS1	11.5
	NS60L	46B24L	12	45	36	70	350	237	128	200	222	0	3	B0	TS1	12.1
	NS60	46B24R	12	45	36	70	350	237	128	200	222	1	3	B0	TS1	12.1
	NS60L(S)	46B24LS	12	45	36	70	450	237	128	200	222	0	1	B0	TS1	12.1
	NS60(S)	46B24RS	12	45	36	70	450	237	128	200	222	1	1	B0	TS1	12.1
	NX100-S6L	55B24L	12	48	36	75	350	237	128	200	222	0	3	B0	TS1	12.4
	NX100-S6	55B24R	12	48	36	75	350	237	128	200	222	1	3	B0	TS1	12.4
	NX100-S6L(S)	55B24LS	12	48	36	75	500	237	128	200	222	0	1	B0	TS1	12.4
	NX100-S6(S)	55B24RS	12	48	36	75	500	237	128	200	222	1	1	B0	TS1	12.4


Factory

Certificatons
