Ce/UL Approved 12V High Performance VRLA Solar Battery

Name: Ce/UL Approved 12V High Performance VRLA Solar Battery
Brand: all-electronics-online.com
SKU: 775243045
Availability: InStock
Rating: 4.4 (76 reviews)

Price:	US $ 10-150/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	100/Piece
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Prod Model:	Lp12-200
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Voltage:	12V
Rated Capacity(10hr 1.80V/Cell):	200ah
Approx Dimension:	522 X 240 X 218mm
Maintenance:	Free
Approx Weight:	9.1kg
Terminal Type:	T11
Type:	Lead-Acid Batteries
Usage:	Telecom, Emergency Backup Power Supply
Nominal Voltage:	12V
Discharge Rate:	High Discharge Rate
Shape:	Square Battery
Rechargeable:	Chargeable

Product Description

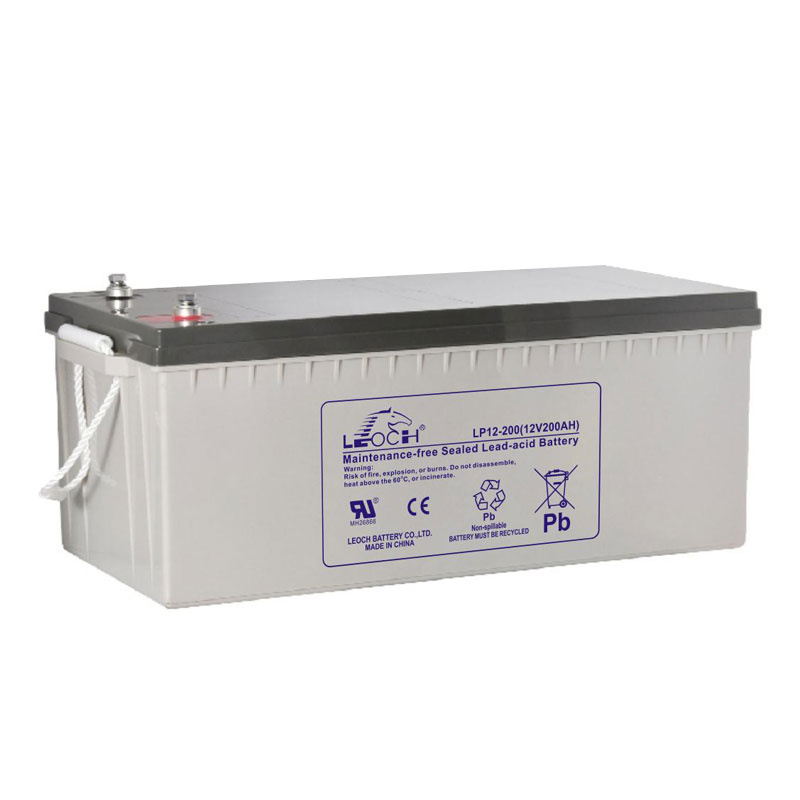

LP12-200 12V High Performance VRLA AGM Solar Battery

1. Using oxygen recombination technology: maintenance-free
2. PbCaSn alloy for plate grids: less gassing, less self-discharging
3. High quality AGM separator: extend cycle life and prevent micro short circuit
4. ABS material: increase the strength of battery container. (Flame-retardant ABS is optional);
5. High purity raw material: ensure low self discharge rate
6.Silver-coated copper terminals (T1, T2 terminal), brass insert terminals and lead terminals improve the  electric conductivity
Typical Applications

Typical Applications

Small size
1.All purpose    2.Uninterruptable Power Supply (UPS)    3.Electric Power System (EPS)
4.Emergency light    5.Emergency backup power supply    6.Auto control system
7.Aircraft signal    8.Alarm and security system    9.Electronic apparatus and equipment
10.DC power supply      11.Communication power supply

2V Series
1.Tele-communication central station (wired or cellular)
2.Power system communication
3.Network communication including: data transmission, television signal transmission, etc.
4.Uninterruptable Power System (UPS- for Telecom)

Certification:  ISO14001 / ISO9001 / IEC / TLC / UL / CE, etc.

Specification:

Model	Nominal Voltage (V)	Rated Capacity(AH)				Approx Dimension								Approx Weight		Terminal type
		20HR	10HR	5HR	1HR	Length		Width		Height		Total Height		Approx Weight
		1.80 V/cell	1.80 V/cell	1.75 V/cell	1.60 V/cell	mm	in.	mm	in.	mm	in.	mm	in.	kg	lbs
LP12-60	12	62.4	60.0	51.5	36.6	260	10.2	168	6.61	208	8.19	214	8.43	18.4	40.8	T6
LP12-65	12	65.0	62.5	53.8	38.1	348	13.7	167	6.57	178	7.01	178	7.01	19.2	42.3	T6
LP12-70	12	72.8	70.0	60.3	42.7	348	13.7	167	6.57	178	7.01	178	7.01	21.6	47.6	T6
LP12-75	12	78.0	75.0	64.5	45.8	260	10.2	168	6.61	208	8.19	214	8.43	22.3	49.6	T6
LP12-80	12	83.2	80.0	69.0	48.8	260	10.2	168	6.61	208	8.19	214	8.43	23.8	52.9	T6
LP12-90	12	93.6	90	77.5	54.9	330	13.0	173	6.81	212	8.35	220	8.66	27.8	61.7	T11
LP12-100	12	104	100	88.0	63.8	330	13.0	173	6.81	212	8.35	220	8.66	30.6	67.9	T11
LP12-120	12	124.8	120	103.2	73.2	408	16.1	177	6.97	225	8.86	225	8.86	34.0	75.6	T11
LP12-135	12	140.4	135	116.0	82.4	345	13.6	172	6.77	274	10.8	280	11.0	41.2	90.8	T11
LP12-150	12	156	150	129	91.5	485	19.1	170	6.69	238.5	9.39	239	9.40	43.2	95.9	T11
LP12-180	12	187.2	180	155	109.8	532	20.9	207	8.15	214	8.42	220	8.66	53.6	119.1	T11
LP12-200	12	208	200	172	122.0	522	20.6	240	9.45	218	8.58	224	8.82	59.8	132.7	T11
LP12-250	12	260	250	215	152.5	522	20.6	268	10.6	220	8.66	226	8.9	72.5	161	T11
