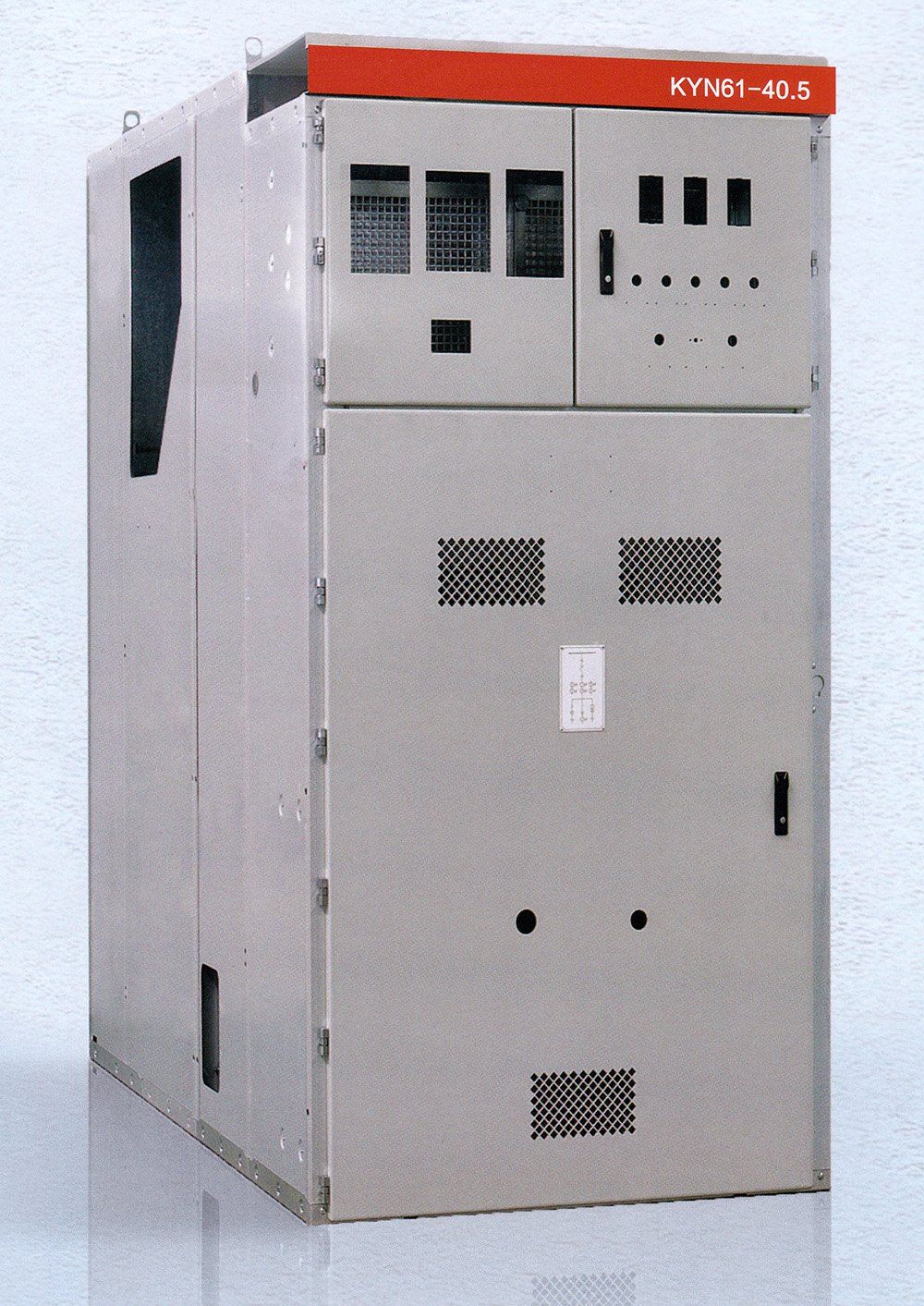

Kyn61 High Voltage Electrical Switchgear Indoor Power Distribution Cabinet

Name: Kyn61 High Voltage Electrical Switchgear Indoor Power Distribution Cabinet
Brand: all-electronics-online.com
SKU: 828597475
Availability: InStock
Rating: 4.3 (108 reviews)

Price:	US $ 4000/Piece
Min Order:	1/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	KYN61

Product Description

General
1. Ratings: system voltage 40.5kV, rated current up to 3150A, AC 50/60HZ
2. Application: mainly applicable in the power plant, substation, mineral enterprise to receive and distribute power with the functions of controlling, protecting and monitoring. It also can be used in places where the frequently operations are in need.
3. Standard: IEC62271-200

Working Conditions
1. Ambient air temperature: -10°C~+40°C
2. Altitude: ≤1000m
3. Relative humidity: Daily average≤95%; Monthly average≤90%
4. Earthquake intensity: ≤magnitude 8.
5. Applicable in the places without corrosive and flammable gas.
Size:
Height x width x depth
2600 x 1400 x 2800/3000mm
Note: Customized products are available.
Technical data:

No.	Item		Unit	Data
1	Rated voltage		kV	40.5
2	Rated insulation level	lightning impulse withstand voltage (full wave)	kV	185
		1 min power frequency withstand voltage	kV	95
3	Rated frequency		Hz	50
4	Rated current		kA	630	1250	1600
5	Rated short -circuit breaking current		kA	20	25, 31.5	25, 31.5
6	Rated short -circuit making current		kA	50	63, 80	63, 80
7	Rated withstands current (peak)		kA	50	63, 80	63, 80
8	Rated short-time withstand current		kA	20	25, 31.5	25, 31.5
9	Switchgear shell protection level			IP3X
	Overall dimension (Weight×depth×height)	VCB cabinet	mm	1400×2800×2600
10		SF6 CB cabinet	mm	1400×2950×2600
11	Weight (CB cabinet)		kg	2600
	Handcart weight	SF6 handcart	kg	300
		VCB handcart	kg	400
