Laser Engraving Machine for Pet Tag

Name: Laser Engraving Machine for Pet Tag
Brand: all-electronics-online.com
SKU: 685637332
Availability: InStock
Rating: 4.6 (42 reviews)

Price:	US $ 3000-5000/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Prod Model:	FMJ1290
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Engraving Machine Type:	Laser Engraving Machine
Control:	CNC
Current:	AC
Laser Type:	CO2
Usage:	Plastic
Engraving Speed:	0-64000mm/Min
Cutting Speed:	0-36000mm/Min
Cooling Mode:	Circulating-Water-Cooling and Protection System
Operating System:	DSP off-Line Control System
Operating Temperature:	5°c-40°c

Product Description

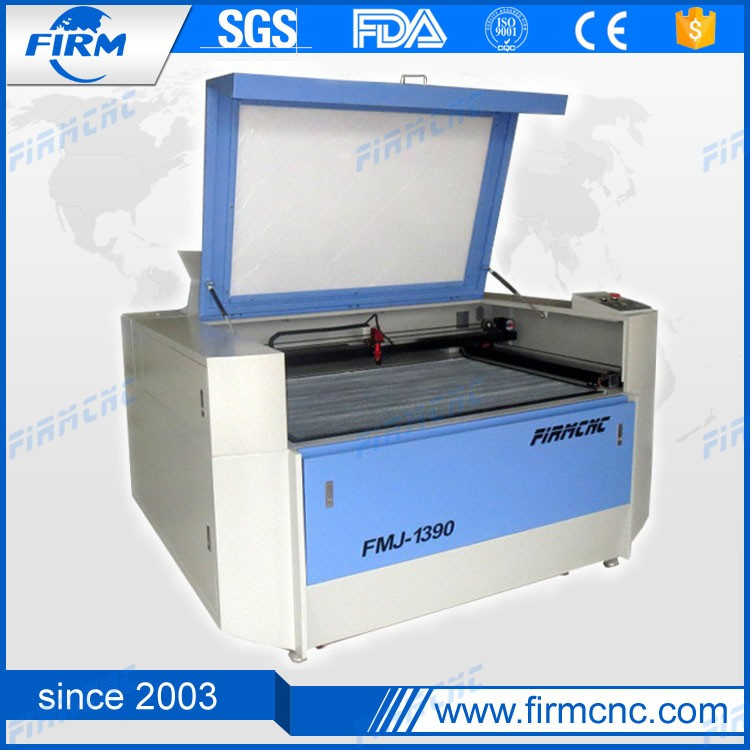

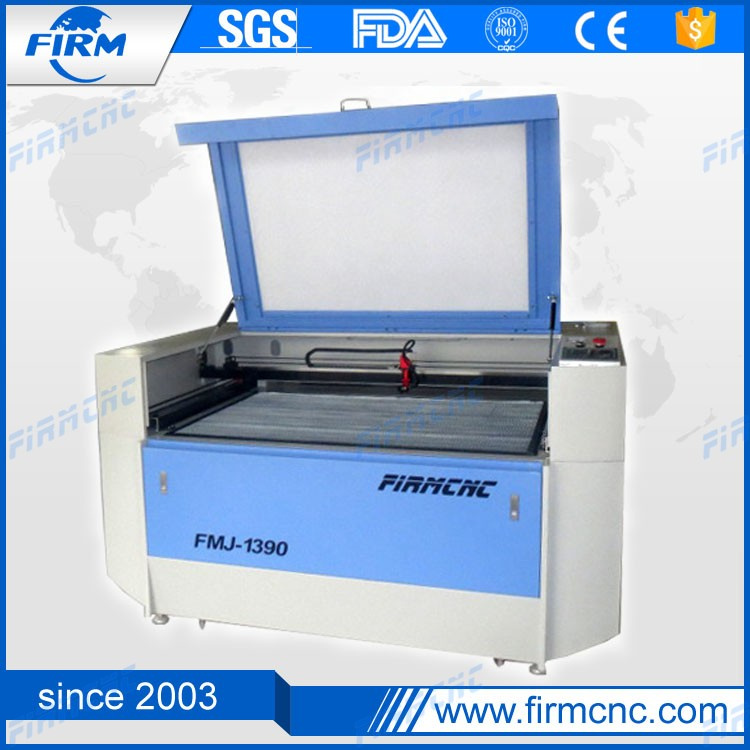

Laser engraving machine for pet tags

Features:
1. The imported linear guide way ensures the high precision and the long service.
2. The stepper motor guarantees cutting and engraving smooth.
3. The structure is strong enough to ensure the moving stable.
4. High quality laser tube provides the strong beam and long service life.
5. Focus lens and reflect molybdenum mirrors guarantee the powerful cutting strength.
6. The anti-pollution design improves the stability of the whole machine greatly.
7. Configure higher power laser tube

Techncial parameter

Model	FMJ series
Engraving Area (mm)W*L	900*600
Laser tube power	60W 80W 100W 120W 130W 150W
Laser Type	CO2 sealed laser tube
Engraving Speed	0-64000mm/min
Cutting Speed	0-36000mm/min
Resetting positioning accuracy	≤±0.01mm
Laser Output	1-100%software setting
Cooling mode	Circulating-water-cooling and protection system
Machine control and drive	Speedy DSP controlling, stepper motor
Cutting Platform	knife-strip platform
Min. shaping character	Character2.0mm×2.0mm,English1.0mm×1.0mm
Power Supply	AC220V 50HZ
Operating system	DSP off-line control system
Dictate format	.plt,.dst,.dxf,.bmp,.dwg,.al,*las etc.
Operating Temperature	5°C-40°C
Operating Humidity	5-95%(Free of Condensed Water)
Compatible Software	CorelDraw ,AutoCAD transmit directly
Optional Spare Parts	Rotary system, Industrial Chiller, Infrared Locating System, Laser Tube, Up-down clump
Recommended Spare Parts	Laser Tube

It can cut and engrave on the pet tags, metal: 2mm, rubber: 1mm, double coulour sheet: 3mm, board: 5mm. But our many cusomers use this machine to make the pet tag material is: Board and Dyeing many coulours on the board.

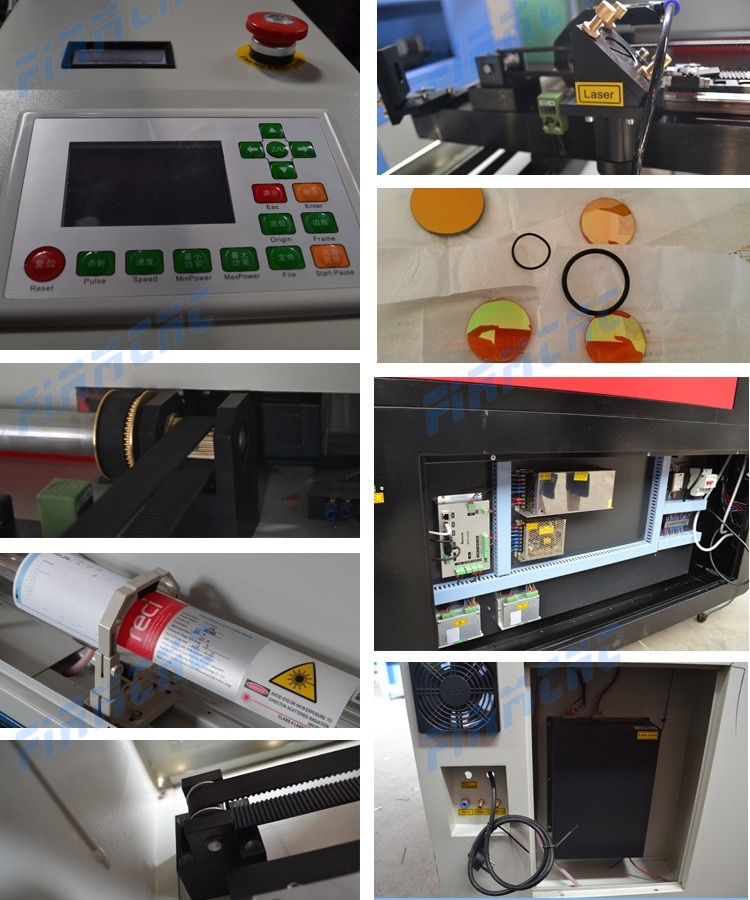

Main parts

Samples

Suggestions:
1. Choose laser cutting and engraving machine 6090( 60w laser tube) can cut and engrave on the pet tags well.
2.40w laser tube just can engrave, 80w is too big for you to cut and engrave. So 60w is situable for you.

Guarantee & After Sales Service:
1. One year quality guaranty, the machine with main parts (excluding the consumables) shall be changed free of charge when problems happened during the warranty period.
2. Lifetime maintenance free of charge.
3. Free training course at our plant.
4. We will provide the consumable parts at an agency price when you need replacement.
5.12 hours on line service each day, free technical support.

Jinan Firm CNC Equipment Co., Ltd is located in Jinan city, Shandong province. We are one of the most professional and good reputation manufacturers of CNC router (router CNC, CNC wood router), laser engraving machine, CNC plasma cutter, laser cutting machine, laser marking machine in China

Our main products are CNC router and laser machine, 5 axis machineing center, 4 axis machining center, 3 axis ATCcnc router, General 3 axis CNC router, CNC laser engraving and cutting machine, CNC plasma cutting machine. The application covers woodworking, advertising, Marble, Metal, Non-metal, MDF, plastic, etc. Our machines are widely sold in many countryes, European, American, Africa, Canada, England, and so on.

The aim of Jinan Firm CNC Equipment is to continuously upgrade the technique, to help our customers produce the best quality and high precision products, and offer the best after sale service.

Please feel free to contact us if you need the good quality machine, best price and the reassuring after sale service.
