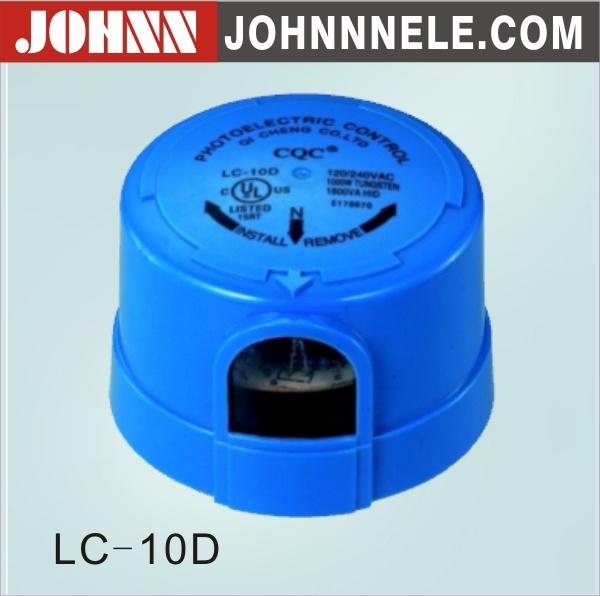

LC-10d Electronic Type Photocontrol Sensor Switch

Name: LC-10d Electronic Type Photocontrol Sensor Switch
Brand: all-electronics-online.com
SKU: 725052065
Availability: InStock
Rating: 5 (93 reviews)

Price:	US $ 1.35-1.35/Piece
Trade Terms:	FOB
Min Order:	2000/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	twist-lock Type
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Port:	Ningbo or Shanghai
Rated Frequency:	50/60Hz
Action Time:	<15
Turn On Lighting Level:	10lux
Standard:	Standard

Product Description

Suitable for hihg-end LED outdoor lighting fixtures
Standard:UL773,ANSI C136.10-2006
UL Certified,L File No.:E178670

FEATURES:

*Suitable for various types of lighting fixture
*Up to RoHS requirements
*UV stabilized PC cover
*Mov surge protection:6000A/10000V,>320J
*Stable resistance of the control function.
*Multi-volts design:105-305V,It can work poperly even at the volts s low as 80VAC

Specification and Characteristic of LC-10D:

Rated Frequency:50/60Hz

Rated Volts: 120V,240V,120/240V(105-305VAC)

Rated Load: 1000W/1800VA,240V/2000W

Turn on LIghting Level: 10Lux

Turn off Lighting Level: 20Lux

Turn on/off Lighting Level Ratio: 1:1.5-4

Action time: <15

Ambient Temperature: -40~75

MOV Surge Protection:90J,160J,320J,360J(4options)

Power Consumption: <1W 120V<0.5W

Electrical Life: >5000cycles

Failure Mode:Fail On(standard),Fail Off(for your option)

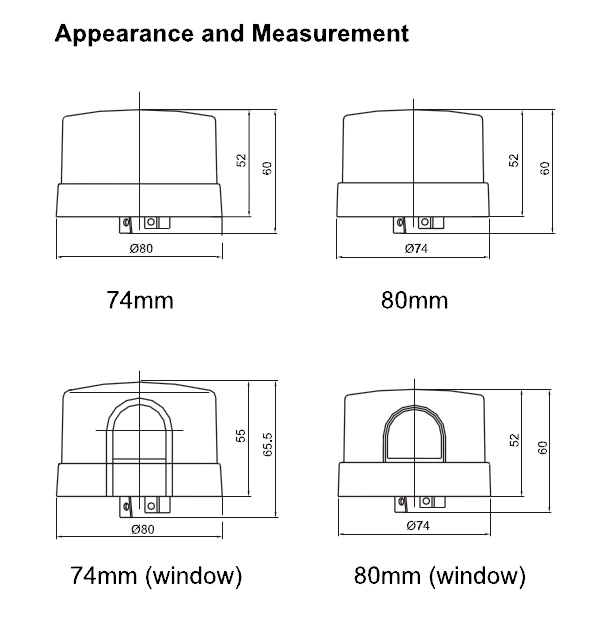

Size:74mm(suitable for North America market),80mm

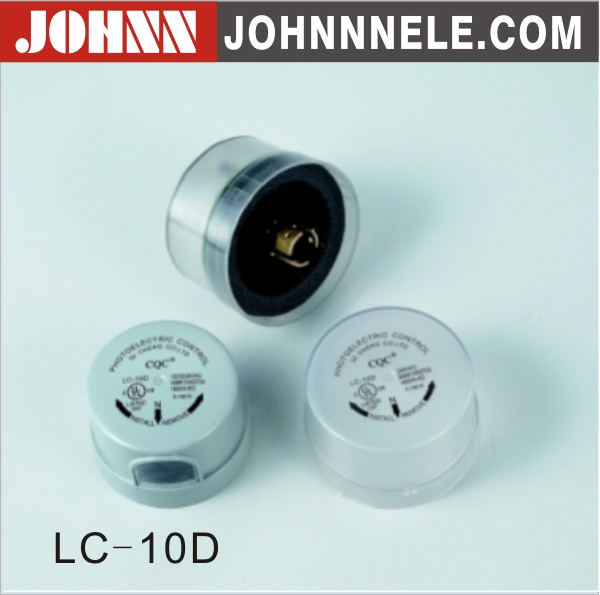

Covers in various colors available:

Our Yueqing Jianghong electrical appliance factory is a new style manufacturer whom focuses on the research and development of Miniature circuit breaker, terminal block and electric accessories in China. Our Products had exported to Middle East countries, South Asia, Africa USA, Europe, Africa and South America etc more than 20 countries by feedback good reputation. Jianghong found in year 2004, after several years ' improvement, from a small workshop developing to a team working includes design and research department, international department, financial department. One the way to the bright tomorrow, Jianghong Electrical which passed ISO9000 system are striving to put the quality as the basis of development, all our circuit breaker and terminal block are strict to according national and international standard. Most of them were approved by CE& RoHS certificate and all electric breaker compliance to IEC standard. Sincerely work with you to create a better tomorrow.
