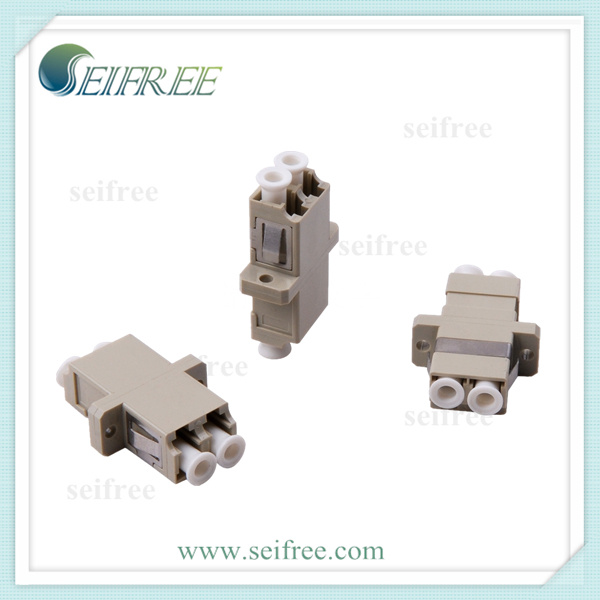

Name: LC Duplex mm Fiber Optic Adapter FTTH CATV
Brand: all-electronics-online.com
SKU: 779931515
Availability: InStock
Rating: 4.8 (46 reviews)

Price:	US $ 0.2-0.4/Piece
Trade Terms:	FOB
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	SADP-A-M-D-F-LC-FPC-LC-FPC
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Fiber Type:	Multi Mode
Jacket Type (Housing):	LC
Ceramic Ferrule:	Upc
Core:	Duplex
Application 1:	Optical Fiber FTTH
Application 2:	CATV Node
Application 3:	Cable Box
Application 4:	Fiber Patch Panel
Application 5:	Terminal Box
Application 6:	Fiber Optic Splicing Kit
Transmission Medium:	Multimode
Structure:	LC
Number Of Cores:	Multi-Core
Ferrule Endface:	PC(',UPC)
Connector Type:	LC-Upc

Product Description

Description
Optical Fiber Adaptors (Converters, Plug) are used to connect same or different type optical fiber connectors. The devices are designed and manufactured to meet Telcordia GR-910-CORE requirements and RoHS compliant.

Applications Features
Optical Network Wiring Low Excess Loss
Test Equipment

Ordering Information

Config.	Fiber mode	Core	Type	Housing of 1st End	Ferrule Type	Housing of 2nd End	Ferrule Type
A=Adaptor	S=Single mode	S=Simplex	S=Standard	FC	MPC= Male PC	FC	MPC= Male PC
C=Converter	M=Multi mode	D=Duplex	F=Flange	SC	MPC= Male PC	SC	MPC= Male PC
P=Plug	/	Q=Quad	0=Oval		FAPC= Female APC		FAPC= Female APC
/			P=Prismatic	LC	FAPC= Female APC	LC	FAPC= Female APC

Specification

Parameter	Unit	Value
Connector	/	FC ST SC LC
Sleeve	/	Zirconia
Insertion Loss	dB	≤0.20 (Plug≤0.30)
Repeatability	Time	>1000
