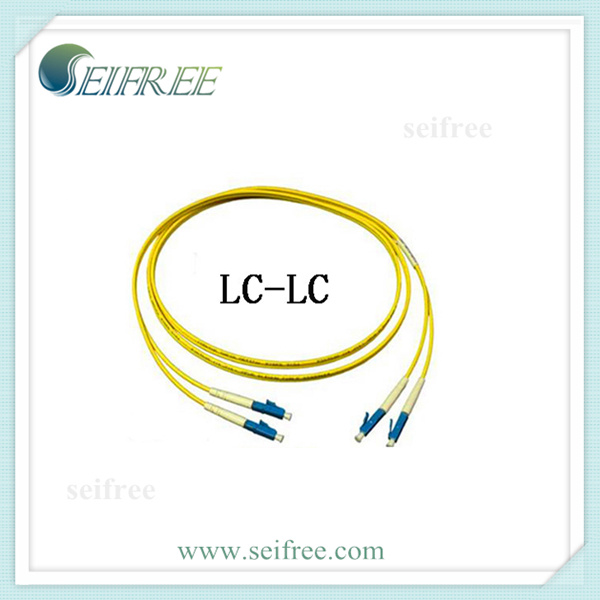

LC/PC LC/APC Duplex Singlemode Fiber Optic Patchcord

Name: LC/PC LC/APC Duplex Singlemode Fiber Optic Patchcord
Brand: all-electronics-online.com
SKU: 819497925
Availability: InStock
Rating: 4.9 (137 reviews)

Price:	US $ 0.5-1.5/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	SOFC-2-LU-LU-D-3-0-C-10
Product Name:	Patch Cord
Fiber Type:	Singlemode, Sm
Connector Type:	LC/PC LC/APC
Cable:	Duplex (Dx), 2-Fiber
Length:	1m
Jacket Type:	PVC
Insertion Loss:	<0.25 dB
Return Loss:	>50 dB
Ceramic Ferrule:	PC, Upc, APC
Diameter Of Cable:	0.9/2.0/2.8/3.0 mm
Application:	Medicine
Type:	Single-mode Fiber
Connection Structure:	LC
Certification:	ISO9001

Product Description

Description
Fiber to fiber interconnection patchcord is one of the most popular device used for telecommunication networks, cable networks and computor networks etc.
The main specific including SM/MM, SX/DX, PC/APC etc.

Features
1. Simplex and Duplex,Singlemode and multimode
2. UPC and APC polishing
3. Interferential parameters
4. Hybrid patch-cords are available upon request
5. Fan-out available, Pigtail available
6. Compliant with Telcordia GR-326-CORE specification

Applications
1. Connection of optical transmission equipment
2. ODF of optical transmission system
3. CATV
4. High quality graphic transmission network
5. High speed data transmission network
6. Computer networks
7. Telecommunication networks

Specification

Parameter	Unit	Value
Connector	/	FC ST SC LC
Ferrule	/	PC		UPC		APC(Step)		APC(Conical)
Fiber Type	/	SM	MM	SM	MM	SM	MM	SM	MM
Insertion Loss	dB	<0.25	<0.20	<0.25	<0.20	<0.30	/	<0.30	/
Repeatability	Time	>1000
Interchangeability	dB	<0.10
Return Loss	dB	>45	>36	>50	>36	>60	/	>60	/

Wuhan Seifree Technology Co., Ltd is located at the Optical Valley, East Lake National High-tech Development Zone of Wuhan. It specializes in R&D, manufacturing, sales of Optical Passive Components. With the great technologies in optical research and production, Seifree gathers a number of optical talents on fiber communication, which possess the rich experience of R&D and a strong capability of technology innovation.

The product includes thin-film filter (DWDM, CWDM, Triple-play WDM), Fused Bi-Conical Taper (Coupler, WDM) and Waveguide Splitter (PLC Splitter), Micro-optics (Circulator, Isolator) Fiber optical Interconnect (Optical Jumper, Adaptor) and other components and modules of Active (CWDM SFP) and Passive.

We create a good working atmosphere, solidarity and cooperation, and build the corporate culture --Service, Excellence, Innovation, Fidelity, Reciprocity, Economical, and Development. All products are designed, manufactured and delivered to meet the requirements of Telcordia and ISO9001.

We welcome you to consider Seifree to provide the high-quality product and considerate service for meet your demands.
