LED Controller (RGB/WiFi/DMX/RF/IR/SD Card/Touch)

Name: LED Controller (RGB/WiFi/DMX/RF/IR/SD Card/Touch)
Brand: all-electronics-online.com
SKU: 726698955
Availability: InStock
Rating: 5 (133 reviews)

Price:	US $ 3-15/Piece
Trade Terms:	FOB,EXW,others
Min Order:	5/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	LED Controller
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Product Name:	LED Controller ( RGB/WiFi/DMX/RF/IR)
Controller:	for LED Strip and RGB Products
Certificate:	Ce&RoHS
Warranty:	2 Years
Control Way:	RF/Wireless/DMX
Application:	LED Products
Signal Transmission:	RF Remote Control
Type:	Button
Certification:	CE
Universal:	Universal
Transmission Distance:	<50m
Material:	Metal
Battery Type:	AAA Battery
Voltage:	DC12V, DC24V

Product Description

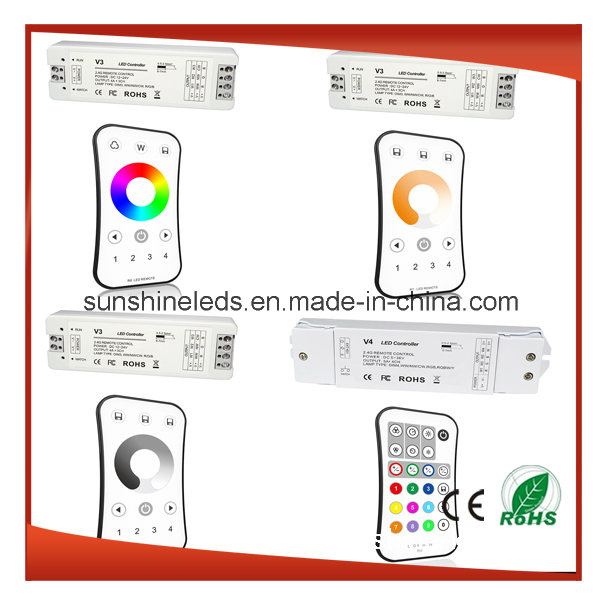

LED Controller ( RGB/WIFI/DMX/RF/IR/SD Card/Touch)

Wireless LED Controller, DMX512 led controller , RGB LED Controller, 28-key LED Controller.

1. Working temperature: -20-60
2. Supply voltage: DC5V, 12V, 24V (for orders specify voltage)
3. Output: 3 channels
4. Connectiing mode: Common anode
5. Transmission/Receiving frequency: 433 MHz
6. External dimension: L127 * W65 * H24 mm
7. Packing size: L137 * W78 * H57mm
8. Net weight: 190g
9. Gross weight: 204.5g
10. Static power consumption: <1 W
11. Output current: <4 A (each channel)
12. Output power: 5 V: <60W, 12V: <144W, 24V: <288W

RF controller adopts the advanced micro control unit, it is used for controlling a variety of lamp whose source of light is LED. For instance, point source of light, flexible light strip, wall washer lamp, glass curtain wall light and so on; At the same time, it has many advantages such as convenient connection, simplicity to use and others. According to the actual need of customers, it can carry out jumpy changing, gradual changing and other effects of change.

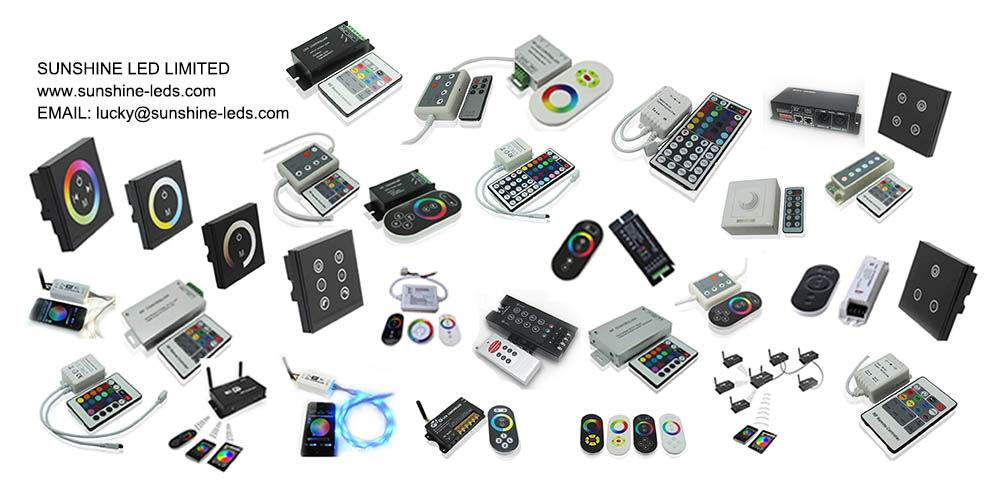

We have more than 70 types LED Controller, normal we have in stock. If you need any LED Controller, pls let me know.

Brightness +( 8 in all )	Brightness - (8 in all )	Off	On
Static red	Static green	Static blue	Static white
Static Yellow	Static cyan	Static purple	3 base color jumpy
Add brightness for red	Add brightness for green	Add brightness for blue	7 colors jumpy
Reduce brightness for red	Reduce brightness for green	Reduce brightness for blue	3 base colors fade change
DIY1	DIY 2	DIY 3	7 colors fade change
DIY4	DIY5	DIY jumpy change	Spark

SUNSHINE LED LIMITED, which is a new high-tech enterprise engaged in research, manufacturing and marketing of LED light. The main products involve LED Strip, SMD5050 LED Strip, RGBW LED Strip, SMD3014, SMD3528, SMD5630, SMD2216 LED Strip, and RGB or RGBW LED Downlight and LED Controller and LED accessories etc, all of which are widely used for urban lighting decoration, indoor home decoration, hotel decoration, stage lighting, signal lamp, road lighting and other areas.

Sunshine covers more than 3500 square meters with completed equipments, 75 workers uses high level Auto-production Machines for SMT assembly and soldering. Our strip series' monthly capacity is above 50, 000 meters and the RGB or RGBW LED Downlight monthly capacity is above 5, 000PCS. All the products must have 100% life testing before shipment. Because of efficient production & quality control, Sunshine has already got good honor & accreditation from the customers. Our products are sold to America, Denmark, Australia, Japan, France and all districts of our country.

We have passed ISO9001, CE and SGS certifications. Through persevering efforts, we have become one of the largest suppliers in LED light field in China and also won the trust of our customers because of excellent quality and prompt delivery.

Choosing Sunshine means choosing satisfaction and choosing benefit! We firmly believe "Technology changes the world and the world will be more brilliant because of Sunshine
