| Power: |
288W |
| CCT: |
Ww/ Wh/ R/ G/B/Y/RGB/RGBW Ect Available |
| Lead Time: |
3 Working Days |
| Warranty: |
3years |
| Application: |
Building |
| Signal Transmission: |
RF Remote Control |
| Type: |
Button |
| Certification: |
CE |
| Universal: |
Universal |
| Transmission Distance: |
<50m |
| Material: |
Metal |
| Battery Type: |
AAA Battery |
| Voltage: |
12V-24V |
Product Description

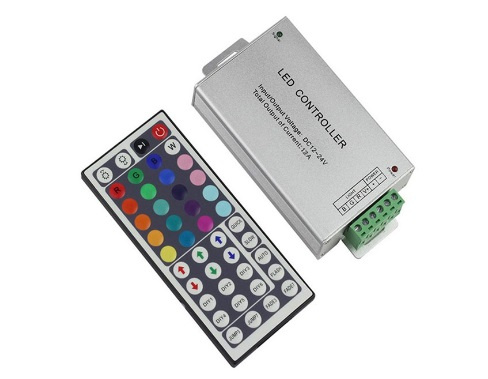

LED RF Controller Wireless 44 Key Remote RGB Controller
Product Description
This 44-key aluminum wireless RF controller adopts the advanced micro control unit, it is used for controlling a variety of lamp whose source of light is LED. For instance, point source of light, flexible light strip, wall washer lamp, glass curtain wall light and so on; it has many advantages such as low price, easy connection and simplicity to use. Meanwhile, you could adjust brightness, static color choices and various dynamic changes in lighting effects through wireless RF remote control. In addition, customers can adjust their light color as they like.
| Supply Voltage | DC12~24V |
| 0utput: | 3 channels |
| Connecting mode | common anode |
| Controller size | L130×W65×H25mm |
| Package size | L135×W80×H54mm |
| New weight | 180g |
| Gross weight | 210g |
| Static power consumption | <1W |
| Output current | <4A/ch or <8A/ch (optional) |
| Output power | 12V/4A < 144W;12V/8A< 288W;24V/4A< 144W;24V/8A< 288W |
| Working temperature | -20-60ºC |

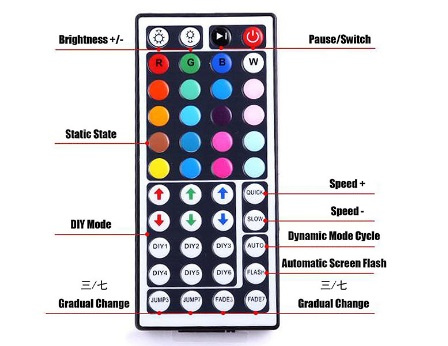

Functions
| Brightness rise | Brightness fall | Pause/Run | On/Off |
| Static red | Static green | Static blue | Static white |
| Static orange | Static light green | Static dark blue | Static milk white |
| Static dark yellow | Static cyan | Static lyons blue | Static white pink |
| Static yellow | Static light blue | Static purple | Static green-white |
| Static light yellow | Static sky blue | Static brown | Static blue white |
| Increase red | Increase green | Increase blue | Speed up |
| Decrease red | Decrease green | Decrease blue | Speed-down |
| DIY key1 | DIY key2 | DIY key3 | Automatic change |
| DIY key4 | DIY key5 | DIY key6 | Flash on and off |
| 3 color jumpy change | 7 color jumpy change | 3 color fade change | 7 color fade change |
