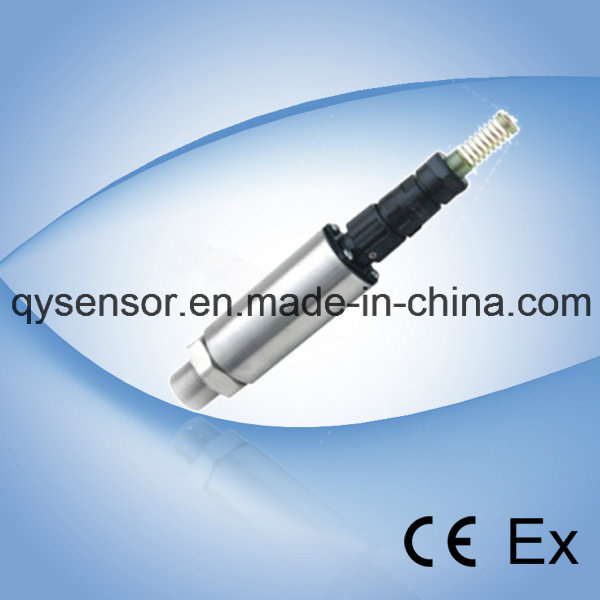

Light and Small Size Pressure Transmitter (QP-83H)

Name: Light and Small Size Pressure Transmitter (QP-83H)
Brand: all-electronics-online.com
SKU: 773900565
Availability: InStock
Rating: 4.9 (25 reviews)

Price:	US $ 95/Piece
Trade Terms:	FOB
Min Order:	1/Piece

Contact Supplier

Showroom Product Company Profile

Prod Model:	QP-83H
Measure Range:	-100-0kpa
Accuracy:	0-5kpa
Output Signal:	0-500kpa
Power Supply:	0-100 MPa
Application:	0.25%Fs
Measuring Medium:	Gas and Liquid

Product Description

Model: QP-83H

Range: -100~0KPa, 0~5KPa.0~500KPa.0~100 MPa

Feature:

1.Have the characteristics of high precision, good stability, long working life and high reliability.

2.Easy to installation.

3.Small in size, light in weight.

4.Pressure connection and Electrical connection are able to chosen by customers.

5.Suitable for measuring the gases and liquids.

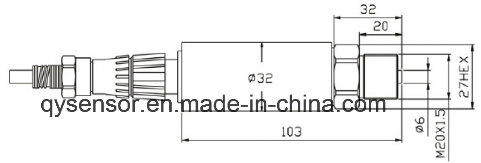

Dimensions: (unit: mm)

Technical Specifications

Measuring media	gases or liquids which are compatible to 316L stainless steel
Measuring range	-100~0KPa, 0~5KPa.0~500KPa.0~100MPa
Pressure type	Gauge(G),Absolute(A),Sealed(S)
Signal output	transmitter, mA (2 wires)	4~20mA
Signal output	transmitter, Vdc (3 wires)	0~10V, 1~5V,0~5V,0~20mA
Combined accuracy	%FS	±0.5, ±0.3, ±0.25(selectable)
Long stability	≤±0.2%FS/year
Power supply	Vdc	12~36
Compensated temp.	ºC	-10~+60
Operating temp.	ºC	-20~+80
Temperature coefficient of ZERO	%FS/10ºC	≤±0.3
Temperature coefficient of SPAN	%FS/10ºC	≤±0.3
Insulation resistance	MΩ	>500 @ 100Vdc
Electrical connection	aviation connector
Material	stainless steel
Pressure connection	G1/4, M20x1.5,M14x1.5,M12x1, M10x1(customized)
Environment protection	IP	65
Safe overload	%FS	150
Ultimate overload	%FS	200

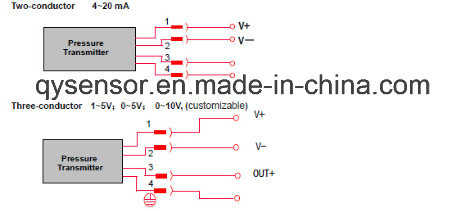

Electrical connection:

Ordering code: model- range & type-signal output-accuracy-pressure connection -defend grade-the
other requests.
Example: QP-83H-0/300KPaG-4/20mA-0.25%FS-M20x1.5-IP65-***
