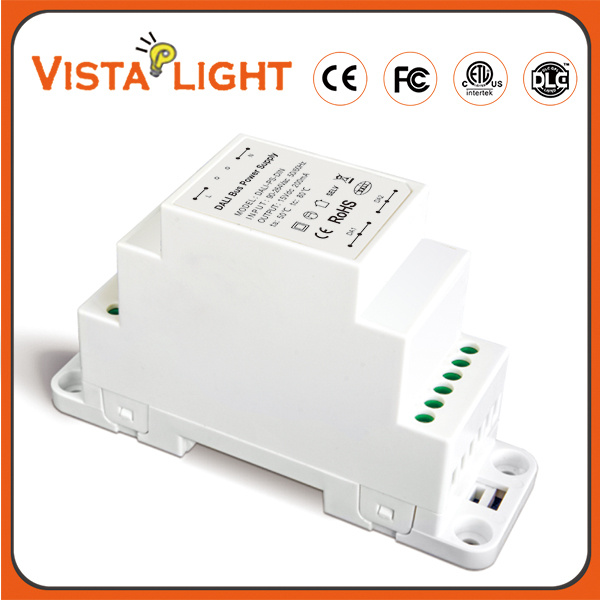

| Prod Model: |
LED power supply DALI-PS-DIN |
| Product Name: |
LED Power Supply Dali-PS-DIN |
| Frequency: |
50/60Hz |
| Rated Current: |
200mA |
| Operating Voltage Range: |
15V |
| Rated Power: |
3W |
| Efficiency: |
82% |
| No Load Output : |
17VDC |
| Warranty: |
3 Year |
| IP: |
IP41 |
| Input Voltage Range: |
100-240VAC |
| Usage: |
Industry |
| Output Type: |
Dual |
| Driving Method: |
LED Constant Current |
| Circuit Structure: |
PWM Controlled |
| Certification: |
FCC |
| Power Supply Voltage: |
200-240VAC |
| Pack Sealing Size: |
L114*W37*H70mm |
| Brand: |
Vista |
Product Description
Light Dali dimming constant current led power supply
Features:1.Short circuit/Over temperature protection.
2.Natural air cooling
3.Full protective plastic housing
4.Class 2 power supply,no FG
5.Compliant with safety extra low voltage standard
6.Suitable for indoor environmentsElectrical Specifications| Model | LED power supply DALI-PS-DIN |
| Input Voltage Range | 100~240VAC |
| Frequency | 50/60HZ |
| Ac Current(type) | 115vac≤0.09A,230VAC≤0.05A |
| Inrush Current(type) | cold start 10A at 230VAC |
| Leakage Current | <0.5ma/230vac |
| Rated Current | 200ma |
| Operating Voltage | 15v |
| Max.Rate Power | 3w |
| Ripple&Noise(max) | 3vp-p(working voltage at full load) |
| No Load Output Voltage (max) | ≤17vdc |
| Work Temp | -20~+50ºC |
| Setup Time | 115vac<2500ms,230vac<1000ms at full load |
| Working Humidity | 20-95%RH,non-condensing |
Protection and packing| Short circuit and over-temperature | Auto recovery |
| Dimension | 112*35*67mm(L*W*H) |
| Packing | 114*37*70mm(L*W*H) |
| Weight(N.W) | 100g±10g |
Product Details
Our company
We are a professional manufacturer of various kinds of LED lighting products in Shenzhen China. Our current products lines range include: LED Flexible strip light, LED COB Down lights, LED moudle LED Panel lights and DIY products by customer etc. We could provide the most reliable light solution to client s' application. Our products are getting CE, RoHS, ETL DLC approval these days and all the light source chips are of brand in Epistar, Samsung, Edison, Nichia, Citizen, CREE and Luxeon etc.

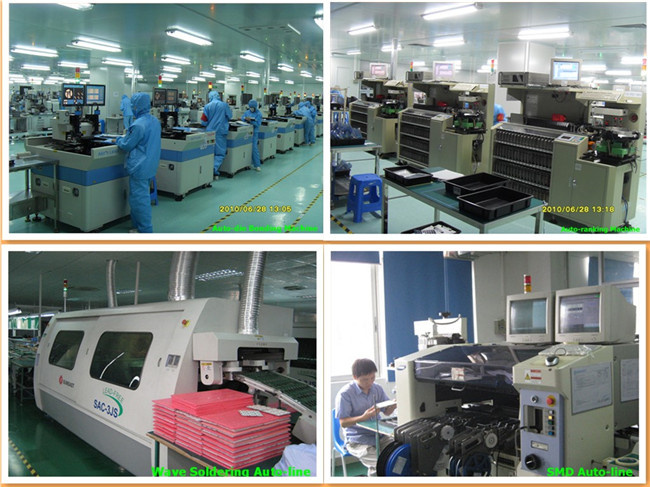

Equipped with automatic SMT production lines testing room aging room dispensing room and all comprehensive processing technology in this industry. We got professional team who are in rich experience of processing technology engineering testing and other related fields. The production system is according to the standard of ISO9001: 20000. All the products will be sent to aging room for life testing and then must pass the strict tests of the Quality Control Dept. Before shipping. Our products are Environmentally-friendly Energy-saving High efficient and with long-lifespan. Our products have been successfully used in widely: Such as Famous hotels Big Chain stores, museum and various business centers and so on.
We are adhering to the principle of" Honesty Cooperation aspects and Win-Win" and we are doing our utmost to satisfy our clients 'personalization demand.
