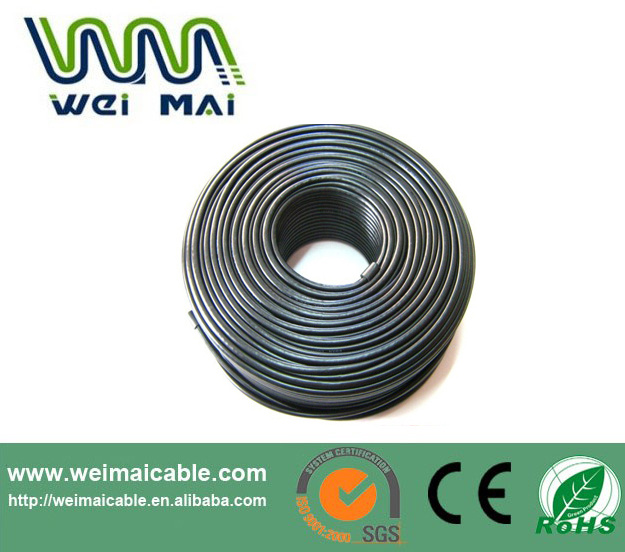

Linan High Quality Coaxial Cable Rg58 (WMO013)

Name: Linan High Quality Coaxial Cable Rg58 (WMO013)
Brand: all-electronics-online.com
SKU: 727297525
Availability: InStock
Rating: 5 (99 reviews)

Price:	US $ 0.01/Meter
Trade Terms:	FOB,CFR,CIF
Min Order:	20KM
Pay Type:	L/C,T/T,D/P,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	RG58
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Number Of Conductors:	1
Foil:	Al Foil (Bonded or Unbonded
Rg58 Coaxial Cableapplication:	Broadband CATV/Video
Rg58 Coaxial Cable Insulation Material:	Foam PE
Rg58 Coaxial Cablecenter Conductor:	Cu or Cu Clad Steel(CCS) or CCA
Rg58 Coaxial Cable Braid Shied Material:	Bc, Tc, CCA, CCS, Al-Mg
Rg58 Coaxial Cable Jacket:	PVC
Rg58 Coaxial Cable 1st Shield:	Bonded Foil
Rg58 Coaxial Cable 2ND Shield:	Braided Shield
Rg58 Coaxial Cable Impedance:	50 Ohm
Certification:	VDE
Application:	Submarine Cable
Conductor Material:	BC/CCS/CCA/TC/CU/CCAG
Type:	Coaxial Cable
Cover Material:	PVC or PE

Product Description

China Linan Cheap 50ohm RG58 coaxial cable
Specifications
1. Coaxial cable: CCS, copper, bc, T/C
2. CE RoHS
3. Coaxial cable
4. Small MOQ

1) Construction

Center Conductor:	0.94mm Solid Copper
Dielectric:	2.80+0.02mm Solid PE
Shield:	Bonded Al Foil
Braid Coverage:	128*0.12mm Solid Copper
Jacket:	5.1mmPVC
Jacket Thickness:	0.712mm

2) Characteristics

Sparker Test:	2500VAC
Dielectric Strength:	Conductor to Shield :3 Sec. @ 2500 VDC
Impedance:	50+3Ohm
Capacitance:	28.5+3pF/Ft (Nom.)
Velocity of Propagation:	88%
DCR:	Conductor: 7.60 ohms/1000Ft
	Shield: 4.90 Ohms/1000Ft

3) Attenuation

Attenuation	[@68 o F. (20 o C.)]
Frequency (MHz)	Nom.(dB/ 100 ft .)
30	2.00
50	2.60
150	4.40
220	5.40
450	7.80
900	11.10
1500	14.50
1800	16.00
2500	19.00

Linan Weimai Electron Co., Ltd is a manufacturer with more than 6 years

Experience in the communications cable industry in China. With an experien-

Ced and professional team, we have exported our products to many countries

And regions all over the world, especially European countries, North Americ-

An, Asia and the Middle East. We can professionally manufacture and supply

Coaxial cables, LAN cables, alarm cables, telephone cables Speaker Cable,

Audio RCA Cable, Scart cable, Flexible RVV Cable and the cable assembly

etc, and many are approved by CE, RoHS. Current production capacity is

About 180, 000, 000 meters per year. Our factory is located in Lin an city, enjoying great convenience toShanghai and Ningbo Sea Port. We have advanced testing machines, ToTest Attenuation, Return Loss Ect. We carefully test cables under ISO 9001-2000 quality management before shipping to the customers. We welcome

Customers, business associations and friends from all parts of the word to

Contact us and seek cooperation for mutual benefits
