Line Array Audio System Df41200 Power Mixer Amplifier
| Price: |
Negotiable/Piece |
| Min Order: |
2/Piece |
| Pay Type: |
T/T,D/P,Western Union,Money Gram |
| Prod Model: |
DF41200 |
| Model Name: |
Df41200 |
| Channels Number: |
4 |
| Sensitivity: |
0.775V26/32dB |
| Safe Protection 1: |
DC Protection |
| Safe Protection 2: |
Soft Strat Protection |
| Safe Protection 3: |
Limiting Protection |
| Safe Protection 4: |
Input Overload Protection |
| Safe Protection 5: |
Output Overload Protection |
| Safe Protection 6: |
Short Circuit Protection |
| Safe Protection 7: |
Overheat Protection |
| Type: |
Professional Amplifier |
| Usage: |
Professional Preformence |
| Used For: |
Professional |
| Tube Type: |
Transistor Amplifier |
| Output Number: |
4 |
| Voltage: |
AC 220V |
| Element Number: |
Push-Pull Amplifier |
| Conductive Mode: |
D |
| Function: |
Transformer Amplifier |
| Sound Channel: |
4 |
Product Description

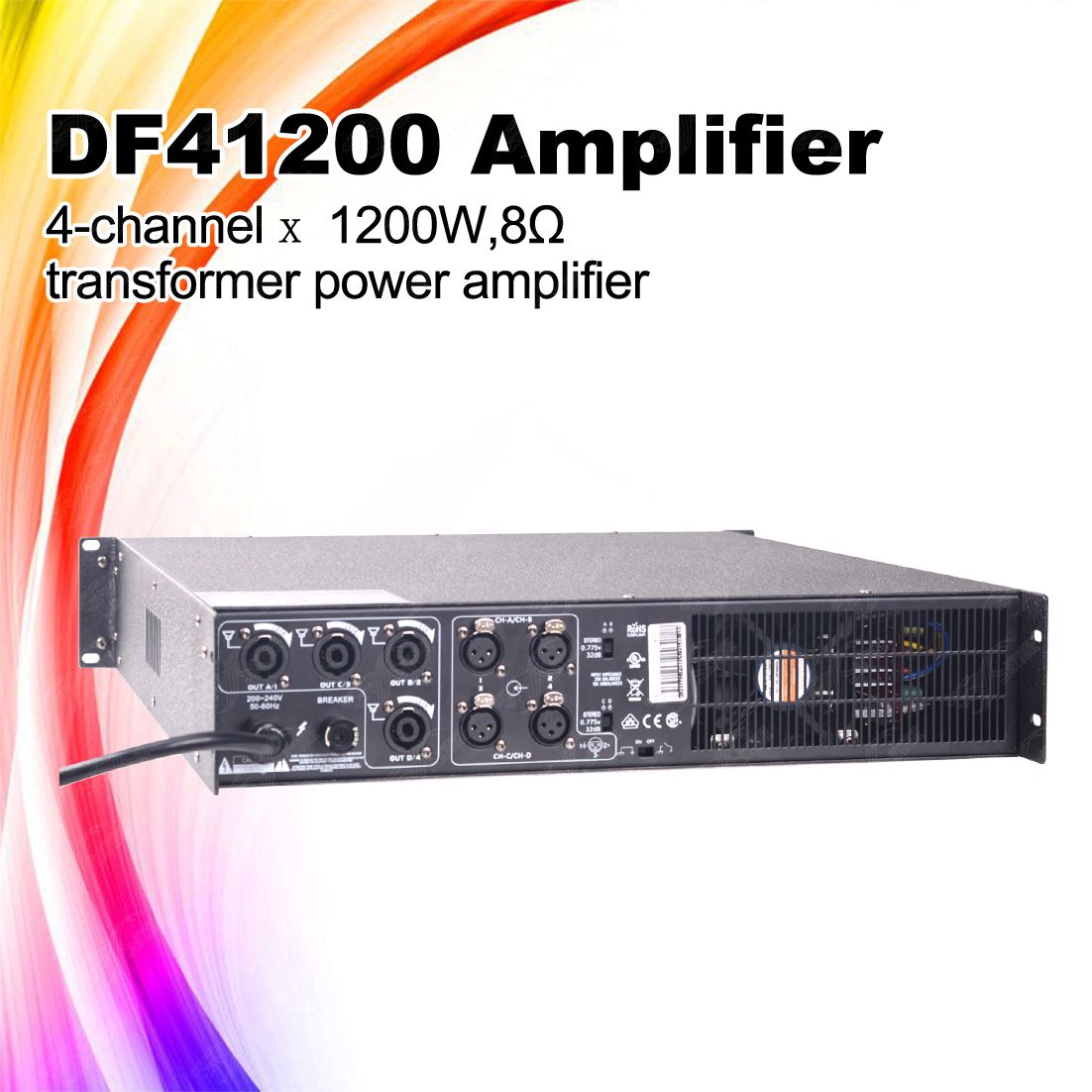

Line Array Audio System DF41200 Power Mixer Amplifier
Quality is our culture.
With us your business in safe,your money in safe. Skytone Audio is one of the white hair of speaker audio business in China. We have our own factory with more than 300 designs of speaker audio includig speakers, microphones, amplifiers and so on.We can offer you:
1. Competitive advantage products
2. Confidential agreement
3. Factory price
4. Quality assurance contract
5. After-sales service 24*7Power amplifier
Amplifier power
Power mixer amplifier

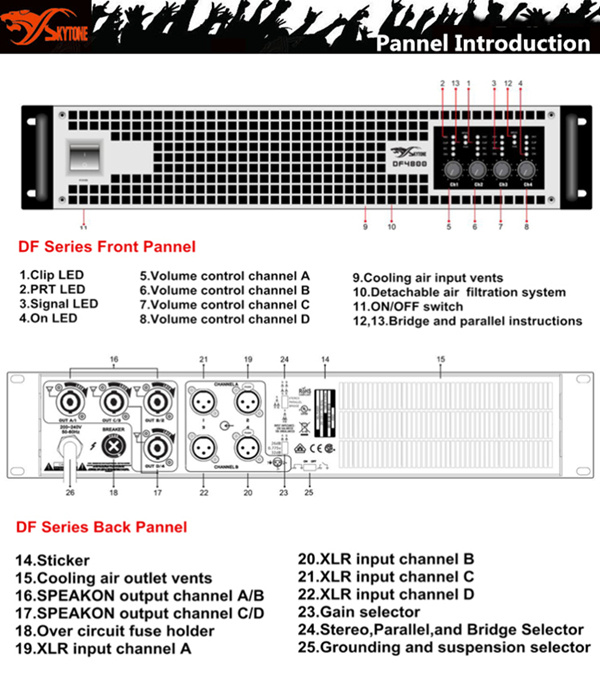

Professional sound equipment systemDF41200 power amplifier descriptions:SKYTONE DF series digtial amplifier power is a high precision contains the essence of a variety of digital amplifier with competitive factory wholesale price, the studio master amplifier use many import componets, the essence of the timbre of the United States,the performance of this professional power amplifier is beyond customers expectations!DF41200 is a model design by Skytone Audio. It's a kind of transformer power amplifier,high-power. Skytone-audio specialized in speaker audio over 12 years in China.Front & Rear panel of DF41200 power amplifier:
Features of DF41200 power amplifier:
1. DC protection, and short circuit protection.
2. Powerful in low frequency, the delicate mid-high frequency highlights the appealing wide-range of frequency.
3. Intelligent fans: dust-removing while powered on, the fans smoothly start working when temperature reaching 40 degrees , / silent mode at normal times to prolong the service life.
4. Cables: Using Polytetrafluoroethene(PTFE) cables, high temperature, resistance heavy current, Non- Oxidation for long time using.
5. Filtering power plug: Connecting wireless microphone, mixer, processor ect, have filtering function.
6.Class H circuit and 2U installation space.7.Each channel of DF studio master amplifier can be individually adjustable and be used at 4Ω load.8.DF series amplifiers power are high efficient, energy-saving and environmetal design.9.Every channel of DFprofessional power amplifier is big power audio using transistors output.10.Voltage booster section uses "MOS Speed Field Effect Transistor".11.Class H high efficient power amplifier output.12.DF series is equipped with Tertiary Voltage SMT, this power obviously reduce amplifier power consumption.Symmetric voltage of SMT technology power amplifier is more stable than normal amplifier voltage.DF41200 Specifications:| Specifications | Model | DF4800 | DF41200 |
| Output Power 1KHz,THD<1% | Bridge @ 4Ω | CH1+CH2=2700W | CH1+CH2=3300W |
| Bridge @ 8Ω | CH1+CH2=2300W | CH1+CH2=2900W |
| Stereo @ 8Ω | 800Wx4 | 1200Wx4 |
| Stereo @ 4Ω | 1200Wx4 | 1600Wx4 |
| Stereo @ 2Ω | 1500Wx4 | 1950Wx4 |
| Peake Power | Peak @ 4Ω | 1320Wx4 | 1750Wx4 |
| Safety Ptotection | DC Protection | YES | YES |
| Short Circuit Protection | YES | YES |
| Sensitivity Overheat Protection | YES | YES |
| Over Heat Protection | YES | YES |
| Input Overload Protection | YES | YES |
| Output Overload Protection | YES | YES |
| Soft Start Protection | YES | YES |
| Amplitude Limiting Protection | YES | YES |
| Output Voltage Protection | YES | YES |
| Frequency Response(1W@8Ω,20Hz-20KHz) | ±0.5dB | ±0.5dB |
| Sensitivity(1KHz@8Ω) | 0.775v26/32dB | 0.775v26/32dB |
| Output Connector | XLR(Female) | XLR(Female) |
| Input Connecter | SPEAKON | SPEAKON |
| Input Impedance | Balanced inputs | 20KΩ | 20KΩ |
| Unbalanced inputs | 10KΩ | 10KΩ |
Crosstalk Attenuation
20Hz-20khz,rated power 8Ω | ≥58dB | ≥58dB |
SNR ( Signal to Noise Ratio )
A-weighting,rated power 8Ω | ≥106dB | ≥106dB |
| Damping Coefficient(1KHz & 8Ω) | ≥750 | ≥750 |
Intermodulation Distortion
(20Hz-20KHz,Halff Power) | ≤0.03% | ≤0.03% |
THD ( total harmonic distortion
(20Hz-20KHz,Halff Power) | ≤0.05% | ≤0.03% |
Phase Response
(1W@8Ω,20Hz-20KHz) | ≤±3° | ≤±3° |
| Slew Rate | ≥60V/μs | ≥60V/μs |
| Output Circuit Type | Class H+II | Class H+II |
| Power Consumption | 7.8A | 9.6A |
| Installation space | 2U | 2U |
| Cooling system | Intelligent system,automatic adjustment according to temperature |
| Size(WxHxD) | 482*88*495mm | 482*88*495mm |
| Package Size | 590*128*620mm | 590*128*620mm |
| Net Weight | 26.5kg | 29kg |
| Gross Weight | 29.5kg | 32kg |
| After-sales service | 6 years Warranty (non-artificial Damage) |

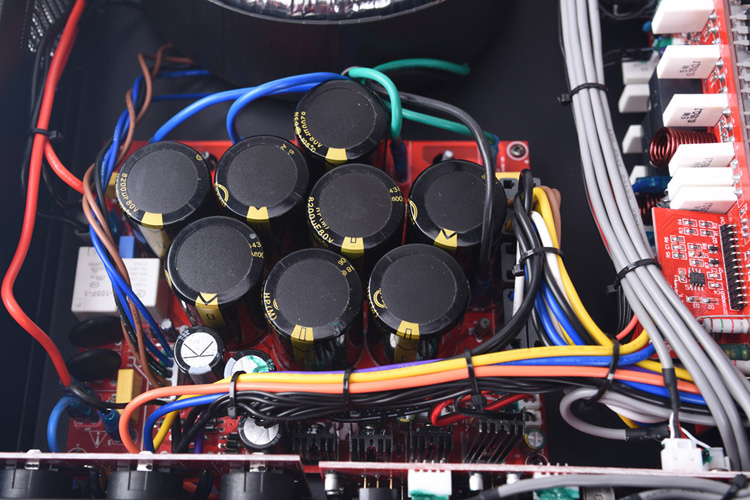

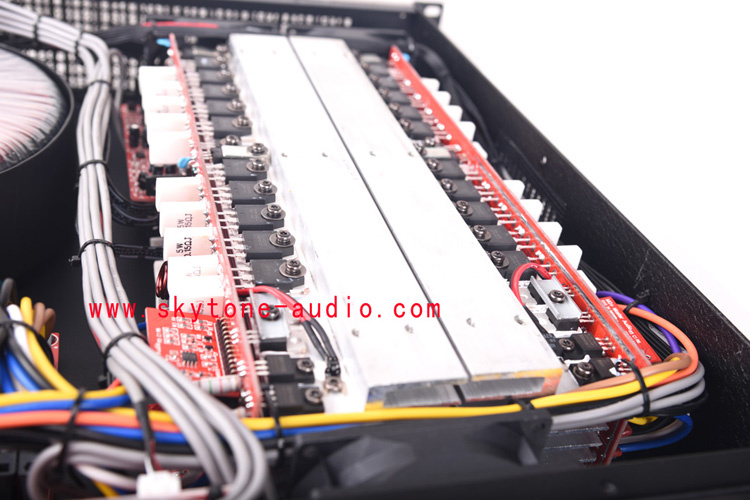

DF41200 inside photos:
Package of DF41200 power amplifier:1.carton case with foam to prevent damage from delivery.
2.Flight case can protect amplifier power better.
Shipping of DF41200 power amplifier:3 shipping ways are available depending on customers requirements.
# Ship by air cargo to customer's nearest airport.
#Ship by courier (door to door), such as TNT,DHL,UPS,FEDEX and so on.
#Ship by sea to your nearest port.Certification of DF41200 power amplifier:
