Line Post Porcelain Insulator for High Voltage ANSI 57-2L-1, Pin Post

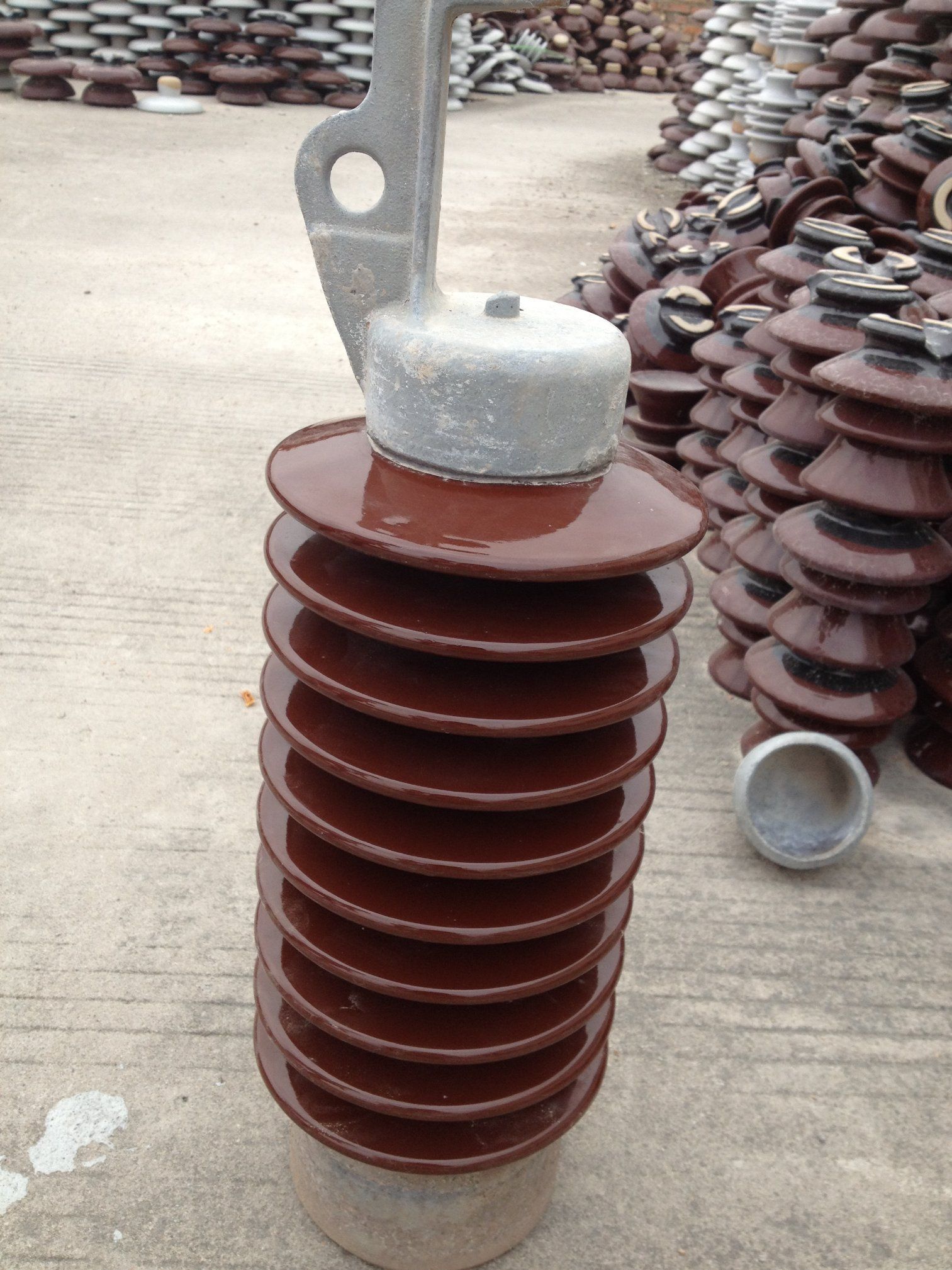

Name: Line Post Porcelain Insulator for High Voltage ANSI 57-2L-1, Pin Post
Brand: all-electronics-online.com
SKU: 825652735
Availability: InStock
Rating: 4.8 (120 reviews)

Price:	Negotiable/Piece
Min Order:	1000/Piece
Pay Type:	L/C,T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	Line Post Insulator ANSI series
Application:	High-voltage
Material:	Porcelain
Structure:	Post Insulator
Certification:	ANSI
Color:	Brown
Brand:	Ziyong

Product Description

Line post insulators are used to support the high voltage conductor and are mounted on pedestals or on the power line cross arms. Our line post insulators are especially designed for distribution lines with typical application voltages raging from 25kV to 66kV according ANSI class.Their strong robust structural form provides unequaled mechanical and electrical features.

Material: porcelain
Color: brown
Standard: ANSI

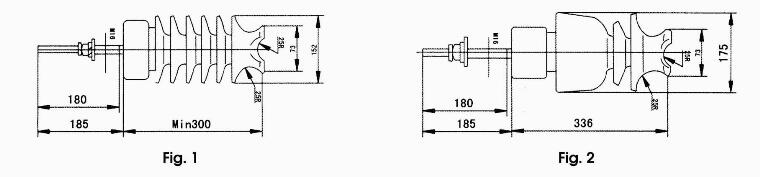

Drawing

Basic Data

Type		ANSI 57-2L-1	PIN POST
Creepage distance	mm	559	520
Protected creepage distance	mm	200	260
Dry arcing distance	mm	240	260
Cantilever strength	kN	12.5	12.5
Power frequency withstand voltage	Dry, kV	90	90
Power frequency withstand voltage	Wet, kV	65	65
Impulse withstand voltage		150	150
Radio Influence Voltage Data	Testvoltage to ground, kV	22	22
Radio Influence Voltage Data	Max. RIV at 1000 KHz, uV	100	100
Net weight	Each, Approx., kg	9.2	10

Festures:
Available in both horizontal and vertical trunnion
Horizontal used for applications such as down-leads and jumper loop control
Vertical used for applications such as cross arms and structures
Small volume and light weight and easy to transport and install
The superior in performance and high intensity mechanical enhance reliability of power line
Extraordinary hydrophobic and resistance to contamination
Long-duration resistance aging and leakage tracking.

Service
Choose our products! You'll get
1) Good quality guarantee (2 years)
2) Factory direct prices
3) On time delivery
4) Free sample
5) Professional technology support

Strict quality controls have been taken to ensure that you'll get reliable products.
a. Material checks before production.
b. Random inspection during production.
c. Inspection before the shipment.

Our products fully comply with well recognized standards such as IEC, BS, ANSI.

FAQ:
1. Q: Do you have a catalog? Can you send me the catalog to have a check of all your products?
A: Yes, We have product catalog. Please contact us, we'll send our catalog by E-mail.

2 Q: I can't find the product on your catalog, can you make this product for me?
A: Our catalog shows most of our products but not all. If you couldn't find it, let us know the specification of your requirements, it usually takes 20-30 days for us to design and make new moulds which match your requirements.

3 Q: What's your payment term?
A: The price FOB Ningbo under payment term is 50% T/T in advance and the balance before shipment.

Chongqing Ziyong Technology Co., Ltd(Wenzhou(Yueqing) Ziyong Electrical Co., Ltd )is a professional supplier and exporter of electric cable connectors and fittings. Our products include a wide range of Aerial Electrical Fittings (Main products like: Insulation piercing connectors, suspension clamps, anchor clamp, etc. ); A variety of Electric Power Fittings (PG clamps, Aluminium alloy stain clamps, wedge clamps, earth rod); Various kinds of terminals, lugs and link fittings; And many other products for power line system.

Our products are widely used in LV & MV power line system. All of our products with highest quality. We are CE certified, have the ISO9001: 2000 certificate, all the produce is according to International Standard, such as NFC, GB and so on. We also offer OEM service of customized requests. We owns the most advanced technology. Have the ability to research and design electricala apparatus by ourselves.

We also hope that we can receive the feedback from you on evaluating our products, offering your good ideas. Let us build up international quality in China together!
