| Prod Model: |
LJA24 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Diameter And Length: |
24mm, 60mm |
| Working Power: |
DC6-36V, AC90-250V |
| Working Temperature: |
-20 Centigrade to +70 Centigrade |
| Measuring Material: |
Magnetic Metal ( Iron Steel and Copper) |
| Backlash: |
<10% Proximity Distance |
| Length Of Output Wire: |
Level 1.5m ( Elect by Yourself) |
| Proximity Distance: |
0-2mm |
| Output: |
Switching Sensor |
| Usage: |
Position Sensor |
| Theory: |
Magnetic Sensor |
Product Description
Professional manufacturer of

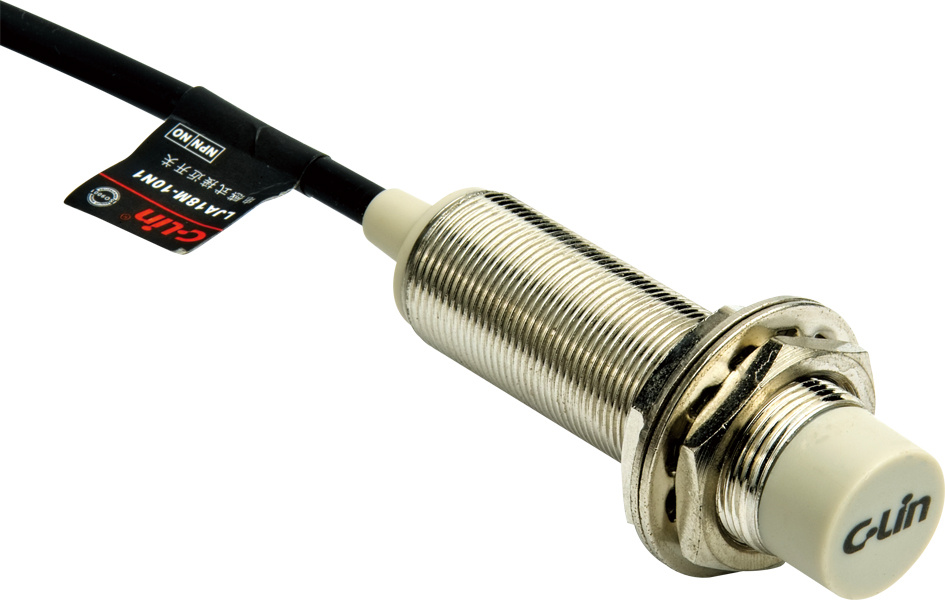

(LJA24) Inductive Proximity Switches/Proximity Switches/ Sensors / Proximity Sensor Switch (Long Cylinder Type)
Our C. Lin brand Proximity switch is one of position switches. When it operates, no need to make a mechanical contact. It is also called no-contact switch. As soon as the detected object approaches to the surface of the sensor distance range, It begins to act with no-contact, no-pressure form, then drive AC or DC electrical or computer equipment to provide control instructions.
Our proximity switches covers: Inductance proximity switches, Capacitance proximity switches, Hall sensor, Mimic linear sensors, Reed sensor, and Safety explosion-proof sensors are very available with us.
Just take the Inductance proximity sensor as an example, it can be supplied with Cylinder type, Angular column and plane installations, output form (NPN, PNP, Two- wire DC output, AC two- wire output, Relay contact output, NPN+PNP double output), output state(No, NC, NO+NC, MU, MI).
|
Switch Category |
(LJA24) Inductive Proximity Switches/Proximity Switches/ Sensors / Proximity Sensor Switch (Long Cylinder Type) |
|
Outward Appearance Code |
LJA24(diameter: 24mm) |
|
Mounting Mode |
Flush |
Non-flush |
|
DC6-36VDC |
Three-Wire NPN Output |
NO |
LJA24-8N1 |
LJA24M-10N1 |
|
NC |
LJA24-8N2 |
LJA24M-10N2 |
|
NO+NC |
LJA24-8N4 |
LJA24M-10N4 |
|
Three-Wire PNP Output |
NO |
LJA24-8P1 |
LJA24M-10P1 |
|
NC |
LJA24-8P2 |
LJA24M-10P2 |
|
NO+NC |
LJA24-8P4 |
LJA24M-10P4 |
|
Two-Wire DC Output |
NO |
LJA24-8D1 |
LJA24M-10D1 |
|
NC |
LJA24-8D2 |
LJA24M-10D2 |
|
AC90-250V |
Two-Wire AC Output |
NO |
LJA24-8A1 |
LJA24M-10A1 |
|
NC |
LJA24-8A2 |
LJA24M-10A2 |
|
Detection Distance |
8mm± 15% |
10mm± 15% |
|
Length |
60mm |
|
Supply Voltage |
DC |
NPN, PNP: DC6V-36V; DC12V, DC24V, DC36V |
|
AC |
AC90-250V 50/60HZ |
|
Output Voltage Drop DC/AC |
AC less than 7V; DC Two-wire output less than5V; DC Three-wire output less than1.5V |
|
DC/AC Response Frequency |
DC: 0.5KHz; AC25Hz |
DC: 0.3KHz; AC25Hz |
|
Working Temperature |
Temperature: -25Centigrade - +75centigrade (no ice), Humidity: 35-95%RH |
|
Insulation Resistance |
above 50MΩ (DC500V) |
|
Protection Grade |
IP65-IP67 |
