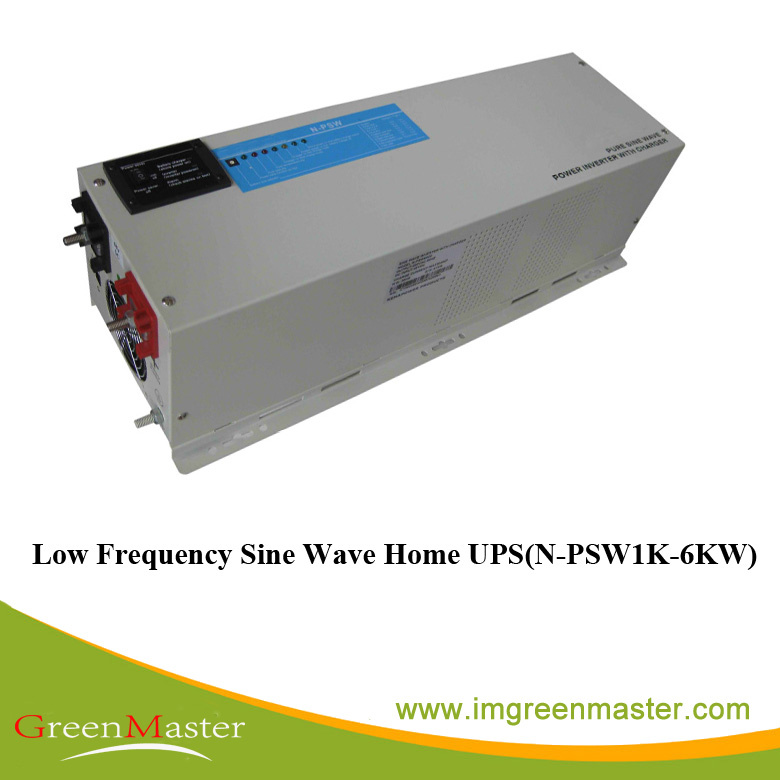

Low Frequency Sine Wave Home UPS (N-PSW1K-6KW)

Prod Model:	N-PSW1K-6KW
Power:	1-6kw
Power Factor:	0.9~1.0
Static Power Capacity:	Max 12W
Max 12W:	765*340*320

Product Description

Low Frequency Sine wave Home UPS (N-PSW1K-6KW)
* I/P: 220VAC or 110VAC

* O/P:220VAC  or 110VAC ± 10%

* Capacity:1KW/2KW/3KW/4KW/5KW/6KW

* Output:  PF 09-1.0, Pure sine wave

* Stand By Function

* Transfer Time <10 ms(typical)

* DC Voltage: 1KW/2KW/3KW:12/24VDC, 4KW/5KW/6KW :24/48VDC

* Bat.:External battery

Key features:


1. Low frequency pure sine wave with Charger(HOME UPS). Never harm to any load

2. Transfer Time 10ms. Computer will not shut off when Mains off suddenly.

3. Digital control Three stage charger, improve battery life

4. With Battery Selector for charge of different battery

5. Power saver Function ( Stand by)

6. High Power Factor0.9-1,

7. Low idle current to reduce energy consumption

8. Low DC input, 1-3KW/12V (24/48) VDC, 4-5KW/24V (48) VDC, easy to arrange battery bank.

9. Big charge current, 35A-75AMP for different mode

10. Back-Feed Protection

11. Full protection, short circuit, Overload, over Temp., Battery low/high Protection

12. Fault recovery

13. LED display and alarm

14. RS232 communication function optional. Display and control product running by computer

15. SNMP Net Agent function optional, display and control product running by internet

16Remote control cable optional

17LCD Display is optional

18. Wall mounting


Technical Specifications


Item	Model	N-PSW1K	N-PSW2K	N-PSW3K	N-PSW4K	N-PSW5K	N-PSW6K
Capacity	VA / Watts	1KVA/1KW	2KVA/2KW	3KVA/3KW	4KVA/4KW	5KVA/5KW	6KVA/6KW
Surge rating (10s)		3KVA	6KVA	9KVA	12KVA	15KVA	18KVA
Efficiency		>95% under AC mode,>88% under DC mode
Power Factor		0.9~1.0,
Static Power Capacity		Max 12W
Input	Normal voltage	220VAC/110V
	220V Voltage range	184-270V+-4%
	110V Voltage range	85-150V+-4%
	Frequency range	50Hz/60HZ -3 +5 Hz (Auto detection)
Output	Voltage (V)	220V/110V+-10%
	Frequency (Hz)	50Hz/60HZ +-0.3 Hz
	Wave form	Pure Sine Wave
	bypass without Battery	yes
Transfer Time		10 ms (typical)
Overload capacity	DC Mode(SMPS load)	(110%(125%Load>150% ±10% for 20s
	AC Mode(SMPS load)	by breaker
Protection	Overload	Current limit under DC mode ,Breaker under AC mode
	Battery Protection	Over charge, Over discharge,DC Breaker,Alarm
	Over Temperature	Variable speed fan,LED lighting and alarm
	Back-Feed Protection	yes
	short Circuit.	by breaker.Faul after 10 secs
Battery/Charger	AC input	95-127V,  194(164)--243V
	DC input	12VDC /24VDC or 48VDC,external Battery
	Charge Voltage	for 12VDC system,Boost voltage 14-15.5V selectable for different Battery. The others are multiple
	Charger Current	12-75AMP difference for different mode
	Charge Manage	digital control,Three stage charger
Display	LED	Line On/ Inverter on / Fast Charger / Float charge / Over Temp. trip / Over load trip / Power Saver on
Audible Alarm		Battery Low,Battery High,Over Temp. Over load,Fail,Over charge
Optional		RS232 Communication,SNMP Net Agent,Remote Control
Power Saver		below 25W when enabled.loading checking 2 time/sec.
Working Environment	Temperature	0°C to 40°C
	Noise	60dB max
	Humidity	5% to 95%
Package		Carton	Carton	Carton	Carton	Carton	Carton
Package Size	WxDxH (mm)	590*335*320	590*335*320	590*335*320	765*340*320	765*340*320	765*340*320
NET/Gross Weight		18/20	20/22	24/26	35/38	45/48	45/48

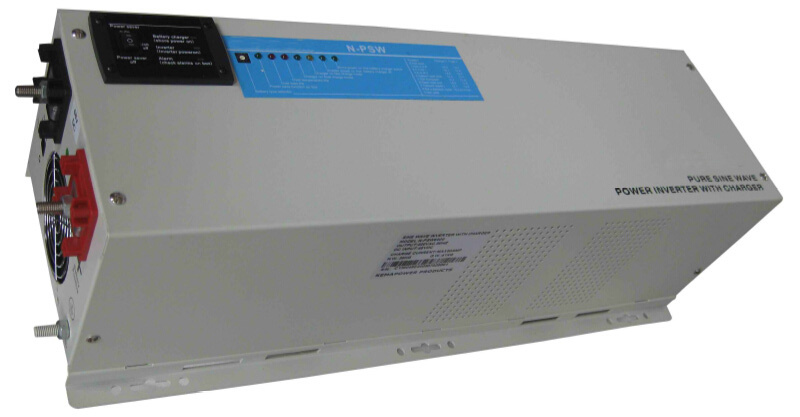

Product Show:
